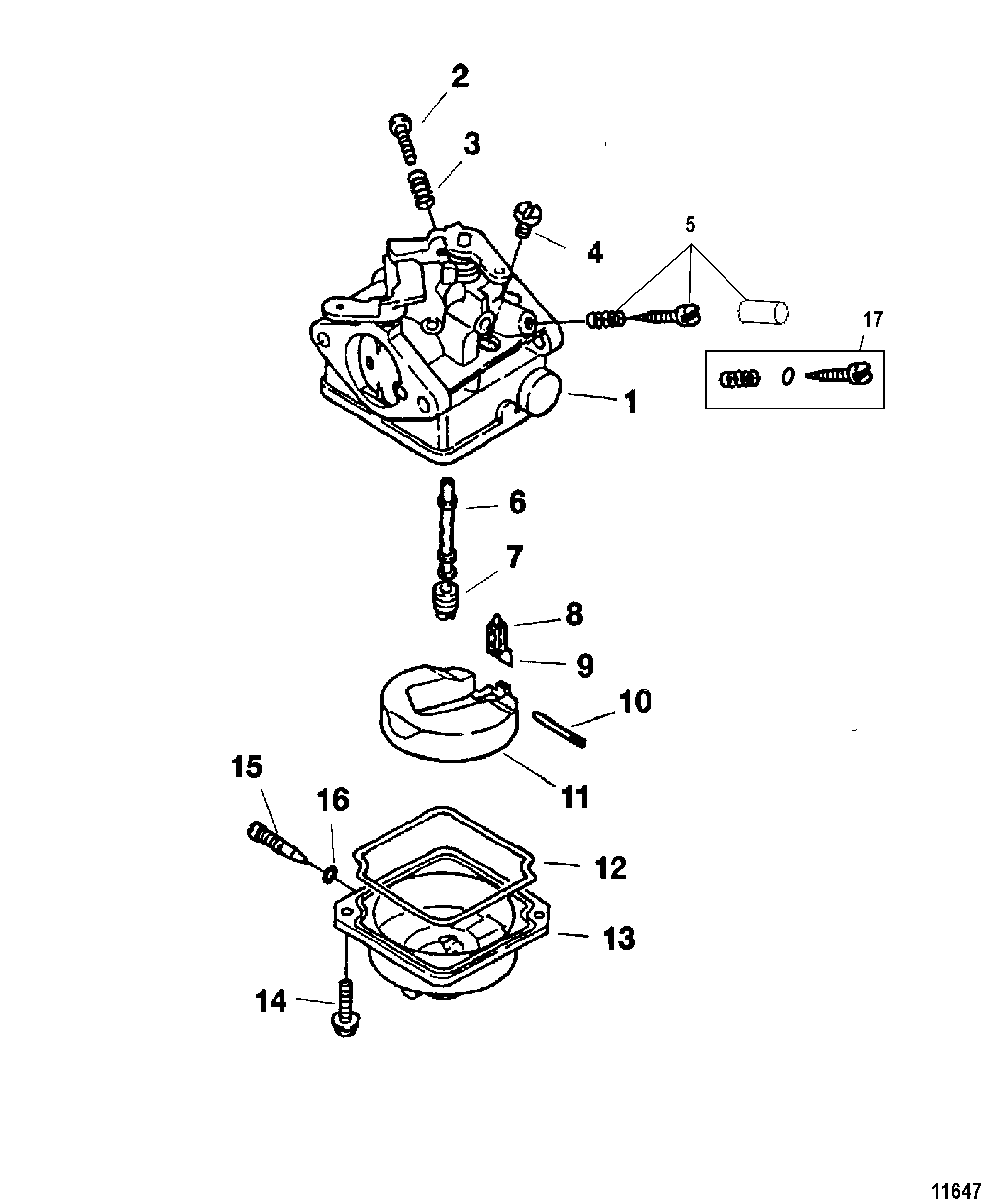

Carburetor для Mariner - 4 (4-STROKE) 0R067090 THRU 0R411837
-
№АртикулНазвание
-
13303-803819T03 CARBURETOR
4 HorsepowerCARBURETOR
4 Horsepower -
13303-803819A05 CARBURETOR
4 Horsepower EU SN# 0R162800 & BelowCARBURETOR
4 Horsepower EU SN# 0R162800 & Below -
13303-803819A05 CARBURETOR
4 Horsepower EU SN# 0R162801 & UpCARBURETOR
4 Horsepower EU SN# 0R162801 & Up -
13303-803522T03 CARBURETOR
5 HorsepowerCARBURETOR
5 Horsepower -
13303-803522A05 CARBURETOR
5 Horsepower EU SN# 0R162800 & BelowCARBURETOR
5 Horsepower EU SN# 0R162800 & Below -
13303-803522A05 CARBURETOR
5 Horsepower EU SN# 0R162801 & UpCARBURETOR
5 Horsepower EU SN# 0R162801 & Up -
13303-804766T03 CARBURETOR
6 HorsepowerCARBURETOR
6 Horsepower -
13303-804766A05 CARBURETOR
6 Horsepower EU SN# 0R162800 & BelowCARBURETOR
6 Horsepower EU SN# 0R162800 & Below -
13303-804766A05 CARBURETOR
6 Horsepower EU SN# 0R162801 & UpCARBURETOR
6 Horsepower EU SN# 0R162801 & Up -
210-8035095 SCREWSCREW
-
324-803554 SPRINGSPRING
-
4803524004 JET, Pilot (#35)
4 HorsepowerJET, Pilot (#35)
4 Horsepower -
48035243 JET, Pilot (#38)
5/6 HorsepowerJET, Pilot (#38)
5/6 Horsepower -
510-803509019 SCREW ASSEMBLY, Pilot
USASCREW ASSEMBLY, Pilot
USA -
6812650012 MAIN NOZZLE
4 HorsepowerMAIN NOZZLE
4 Horsepower -
6812650015 MAIN NOZZLE
4 Horsepower EU SN# 0R162801 & UpMAIN NOZZLE
4 Horsepower EU SN# 0R162801 & Up -
6812650013 MAIN NOZZLE
5 HorsepowerMAIN NOZZLE
5 Horsepower -
6812650016 MAIN NOZZLE
5 Horsepower EU SN# 0R162801 & UpMAIN NOZZLE
5 Horsepower EU SN# 0R162801 & Up -
6812650014 MAIN NOZZLE
6 HorsepowerMAIN NOZZLE
6 Horsepower -
6812650017 MAIN NOZZLE
6 Horsepower EU SN# 0R162801 & UpMAIN NOZZLE
6 Horsepower EU SN# 0R162801 & Up -
7162505 JET, Main (#60)
4 HorsepowerJET, Main (#60)
4 Horsepower -
7162508 JET, Main (#65)
5 HorsepowerJET, Main (#65)
5 Horsepower -
716250011 JET, Main (#68)
6 HorsepowerJET, Main (#68)
6 Horsepower -
716250012 JET, Main (#58)
All EU SN# 0R162801 & UpJET, Main (#58)
All EU SN# 0R162801 & Up -
8162543 FLOAT VALVE, BrassFLOAT VALVE, Brass
-
954-803525 CLIP, Stainless SteelCLIP, Stainless Steel
-
1017-162562 PIN, Float - Stainless SteelPIN, Float - Stainless Steel
-
11162533 FLOATFLOAT
-
1227-8035084 GASKET, RubberGASKET, Rubber
-
1316258T5 FLOAT BOWLFLOAT BOWL
-
1410-16260 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
1510-8035093 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
1625-8035131 O-RING, RubberO-RING, Rubber
-
1710-803509020 SCREW ASSEMBLY, Pilot
EUSCREW ASSEMBLY, Pilot
EU -
-27-8M0101710 GASKET SET, PowerheadGASKET SET, Powerhead
