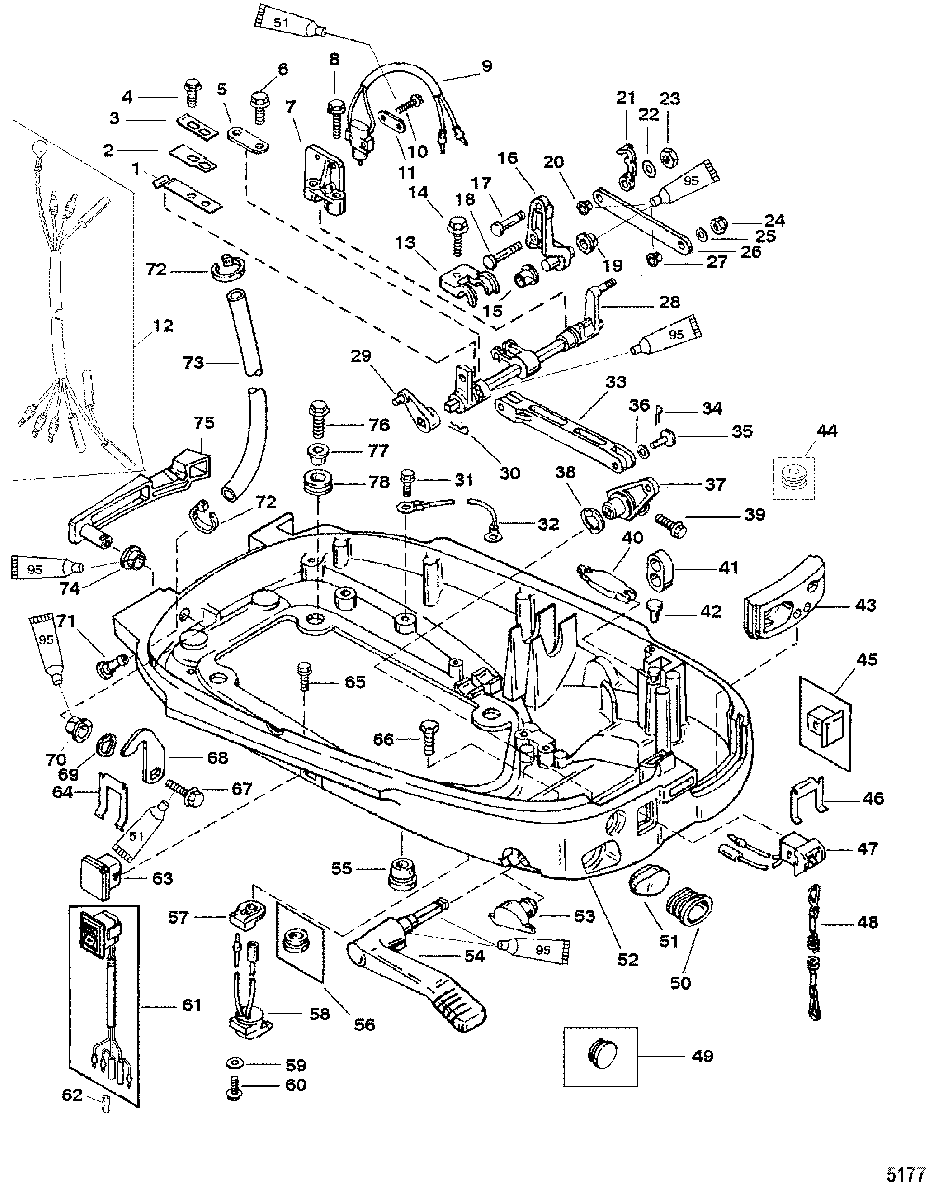

Bottom Cowl для Mariner - 40 (2 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
124-824992 SPRING, DetentSPRING, Detent
-
224-824993 SPRING, BackingSPRING, Backing
-
3824994 SPRING, PlateSPRING, Plate
-
410-82191916 SCREW, (M5 x 14)SCREW, (M5 x 14)
-
58280471 STRAPSTRAP
-
610-4006731 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
78M0039049 CLAMP, Horizontal Shift ShaftCLAMP, Horizontal Shift Shaft
-
810-40011130 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
987-8M0052927 SWITCHSWITCH
-
1010-88075020 SCREW, (M3.5 x 20) Stainless SteelSCREW, (M3.5 x 20) Stainless Steel
-
11824923 PLATE, SwitchPLATE, Switch
-
1284-852375A4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
138M0036802 CAP, Intermediate LeverCAP, Intermediate Lever
-
1410-4006731 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
1523-26954 BUSHINGBUSHING
-
168M0041741 LEVER, IntermediateLEVER, Intermediate
-
1742927 INSERTINSERT
-
1817-8224561 PINPIN
-
1923-26954 BUSHINGBUSHING
-
2023-48475 BUSHINGBUSHING
-
21822459 RETAINER, CableRETAINER, Cable
-
2212-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2411-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2512-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
26822470 SHIFT LINKSHIFT LINK
-
2723-48475 BUSHINGBUSHING
-
28821483A6 SHIFT SHAFT, Horizontal, HorizontalSHIFT SHAFT, Horizontal, Horizontal
-
29821487 LEVER, Interlock ActuatingLEVER, Interlock Actuating
-
3018-26811 COTTER PINCOTTER PIN
-
3110-878607 SCREW, (#10-16 x .380), Self TapSCREW, (#10-16 x .380), Self Tap
-
3284-88807A28 CABLE ASSEMBLY, Black (7.50 Inch)CABLE ASSEMBLY, Black (7.50 Inch)
-
338M0037997 SHIFT RODSHIFT ROD
-
3418-210711 COTTER PINCOTTER PIN
-
3517-8251851 PIN, Shfit RodPIN, Shfit Rod
-
3613-827418 LOCKWASHERLOCKWASHER
-
37822011 LEVER, ShiftLEVER, Shift
-
3813-825273 WAVE WASHERWAVE WASHER
-
3910-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
4098889 LATCHLATCH
-
4139519 CUPCUP
-
4210-42975 DRIVE SCREWDRIVE SCREW
-
43822423002 SEALSEAL
-
4425-828249 GROMMET
(Export -Greenland)GROMMET
(Export -Greenland) -
4519-17230 PLUG, Stop SwitchPLUG, Stop Switch
-
468M0032846 RETAINER, Brass, SwitchRETAINER, Brass, Switch
-
4787-11083A31 SWITCH, StopSWITCH, Stop
-
488M0092850 LANYARD ASSEMBLY, Stop SwitchLANYARD ASSEMBLY, Stop Switch
-
4925-16226 GROMMETGROMMET
-
50822424001 SEAL, Throttle CableSEAL, Throttle Cable
-
5119-823874001 SEAL, Throttle CableSEAL, Throttle Cable
-
524010-821511T1 BOTTOM COWLBOTTOM COWL
-
5319-824076001 PLUG, Shift LeverPLUG, Shift Lever
-
54821490T SHIFT HANDLESHIFT HANDLE
-
5525-19564001 GROMMETGROMMET
-
5525-19565002 GROMMET
(Split-Power Trim)GROMMET
(Split-Power Trim) -
5619-824473 PLUG, Warning AlarmPLUG, Warning Alarm
-
57823572001 SEAL, Warning AlarmSEAL, Warning Alarm
-
5884-8M3001068 ALARM ASSEMBLY, Audio WarningALARM ASSEMBLY, Audio Warning
-
5912-4002316 WASHERWASHER
-
6010-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
6187-8M0042301 SWITCH ASSEMBLY
(Power Trim)SWITCH ASSEMBLY
(Power Trim) -
6213541 PLUG, MalePLUG, Male
-
63812830T01 PLUG, Trim SwitchPLUG, Trim Switch
-
648M0032848 RETAINERRETAINER
-
6510-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
6610-40011107 SCREW, (M5 x 16) Stainless Steel, Interlock CableSCREW, (M5 x 16) Stainless Steel, Interlock Cable
-
6710-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
68822425 CAM, LatchCAM, Latch
-
6913-12134 WASHER, WaveWASHER, Wave
-
7023-812707 BUSHINGBUSHING
-
7122-813613 FITTINGFITTING
-
7254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
7332-7568058 HOSE, (15.00 Inches)HOSE, (15.00 Inches)
-
7423-812707 BUSHINGBUSHING
-
75823573F1 LEVER, Cowl LatchLEVER, Cowl Latch
-
7610-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
7723-822003 BUSHINGBUSHING
-
7825-822002 GROMMETGROMMET
