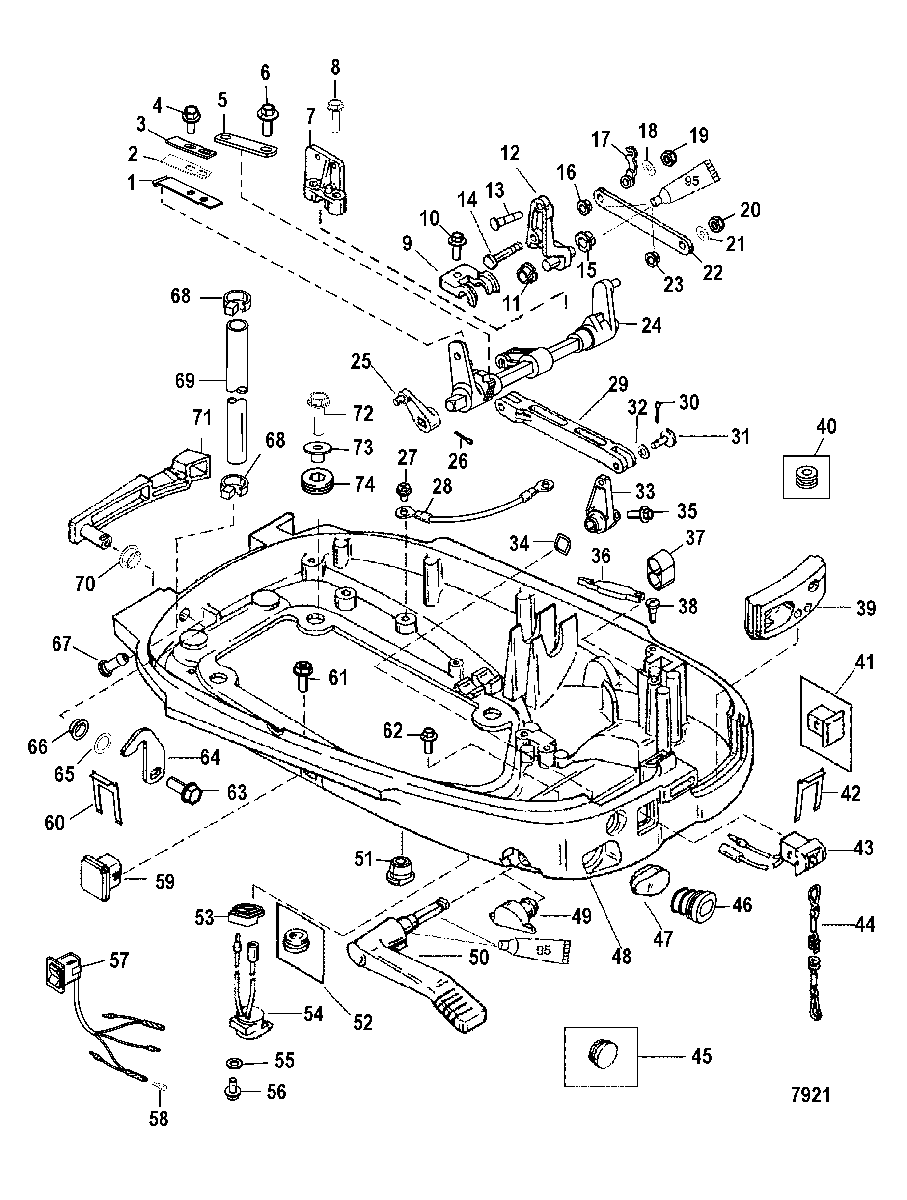

Bottom Cowl для Mariner - 40 (2 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
124-824992 SPRING, DetentSPRING, Detent
-
224-824993 SPRING, BackingSPRING, Backing
-
3824994 SPRING, PlateSPRING, Plate
-
410-82191916 SCREW, (M5 x 14)SCREW, (M5 x 14)
-
58280471 STRAPSTRAP
-
610-4006731 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
78M0039049 CLAMP, Horizontal Shift ShaftCLAMP, Horizontal Shift Shaft
-
810-40011130 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
98M0036802 CAP, Intermediate LeverCAP, Intermediate Lever
-
1010-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1123-26954 BUSHINGBUSHING
-
128M0041741 LEVER, IntermediateLEVER, Intermediate
-
1342927 INSERTINSERT
-
1417-8224561 PINPIN
-
1523-26954 BUSHINGBUSHING
-
1623-48475 BUSHINGBUSHING
-
17822459 RETAINER, CableRETAINER, Cable
-
1812-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2011-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2112-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
22822470 SHIFT LINKSHIFT LINK
-
2323-48475 BUSHINGBUSHING
-
24821483A6 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
25821487 LEVER, Interlock ActuatingLEVER, Interlock Actuating
-
2618-26811 COTTER PINCOTTER PIN
-
2710-878607 SCREW, (#10-16 x .375), Self TapSCREW, (#10-16 x .375), Self Tap
-
2884-88807A28 CABLE ASSEMBLY, Black (7.50 Inch)CABLE ASSEMBLY, Black (7.50 Inch)
-
298M0037997 SHIFT RODSHIFT ROD
-
3018-210711 COTTER PINCOTTER PIN
-
3117-8251851 PIN, Shift RodPIN, Shift Rod
-
3213-827418 LOCKWASHERLOCKWASHER
-
33822011 LEVER, ShiftLEVER, Shift
-
3413-825273 WAVE WASHERWAVE WASHER
-
3510-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
3698889 LATCHLATCH
-
3739519 CUPCUP
-
3810-42975 DRIVE SCREWDRIVE SCREW
-
39822423002 SEALSEAL
-
4025-828249 GROMMET
(Export -Greenland)GROMMET
(Export -Greenland) -
4119-17230 PLUG, Stop SwitchPLUG, Stop Switch
-
428M0032846 RETAINER, Brass, SwitchRETAINER, Brass, Switch
-
4387-11083A31 SWITCH, StopSWITCH, Stop
-
448M0092850 LANYARD ASSEMBLY, Stop SwitchLANYARD ASSEMBLY, Stop Switch
-
4525-16226 GROMMETGROMMET
-
46822424001 SEAL, Throttle CableSEAL, Throttle Cable
-
4719-823874001 PLUGPLUG
-
484010-821511T1 BOTTOM COWLBOTTOM COWL
-
4919-824076001 PLUG, Shift LeverPLUG, Shift Lever
-
50821490T SHIFT HANDLESHIFT HANDLE
-
5125-19564001 GROMMETGROMMET
-
5125-19565002 GROMMET
(Split-Power Trim)GROMMET
(Split-Power Trim) -
5219-824473 PLUG, Warning AlarmPLUG, Warning Alarm
-
53823572001 SEAL, Warning HornSEAL, Warning Horn
-
5484-8M3001068 ALARM ASSEMBLY, Audio WarningALARM ASSEMBLY, Audio Warning
-
5512-4002316 WASHERWASHER
-
5610-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
5787-8M0042301 SWITCH ASSEMBLY
(Power Trim)SWITCH ASSEMBLY
(Power Trim) -
5813541 PLUG, MalePLUG, Male
-
59812830T01 PLUG, Trim SwitchPLUG, Trim Switch
-
608M0032848 RETAINERRETAINER
-
6110-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
6210-40011107 SCREW, (M5 x 16) Stainless Steel, Interlock CableSCREW, (M5 x 16) Stainless Steel, Interlock Cable
-
6310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
64822425 CAM, LatchCAM, Latch
-
6513-12134 WASHER, WaveWASHER, Wave
-
6623-812707 BUSHINGBUSHING
-
6722-813613 FITTINGFITTING
-
6854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
6932-7568058 HOSE, (15.00 Inches)HOSE, (15.00 Inches)
-
7023-812707 BUSHINGBUSHING
-
71823573F1 LEVER, Cowl LatchLEVER, Cowl Latch
-
7210-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
7323-822003 BUSHINGBUSHING
-
7425-822002 GROMMETGROMMET
