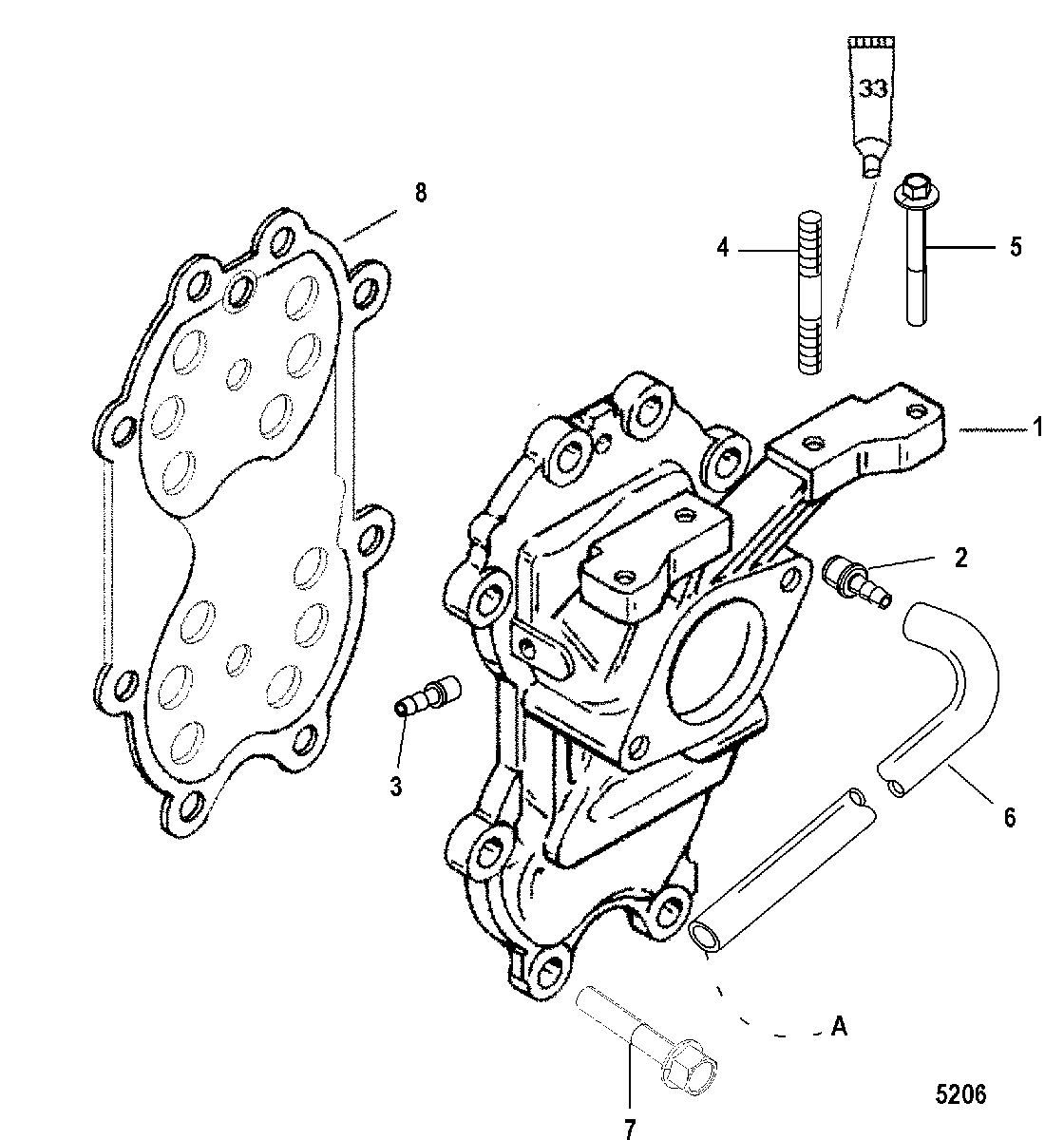

Induction Manifold для Mariner - 40 (2 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
1821371A2 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
221-426233 CHECK VALVECHECK VALVE
-
322-823563 FITTING, BarbedFITTING, Barbed
-
416-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
510-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
632-892024122 TUBING, (240.00 Inches Bulk) (Cut to 12.50 Inch Length)
(A = To Base of Oil Pump)TUBING, (240.00 Inches Bulk) (Cut to 12.50 Inch Length)
(A = To Base of Oil Pump) -
710-81742730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
8830246T2 REED VALVE
(30 H.P.)REED VALVE
(30 H.P.) -
8830246T3 REED VALVE
(40 H.P.)REED VALVE
(40 H.P.) -
-808569T02 POWERHEAD ASSEMBLY
30 HPPOWERHEAD ASSEMBLY
30 HP -
-61-8M0063311 POWERHEAD ASSEMBLY
40 HPPOWERHEAD ASSEMBLY
40 HP
