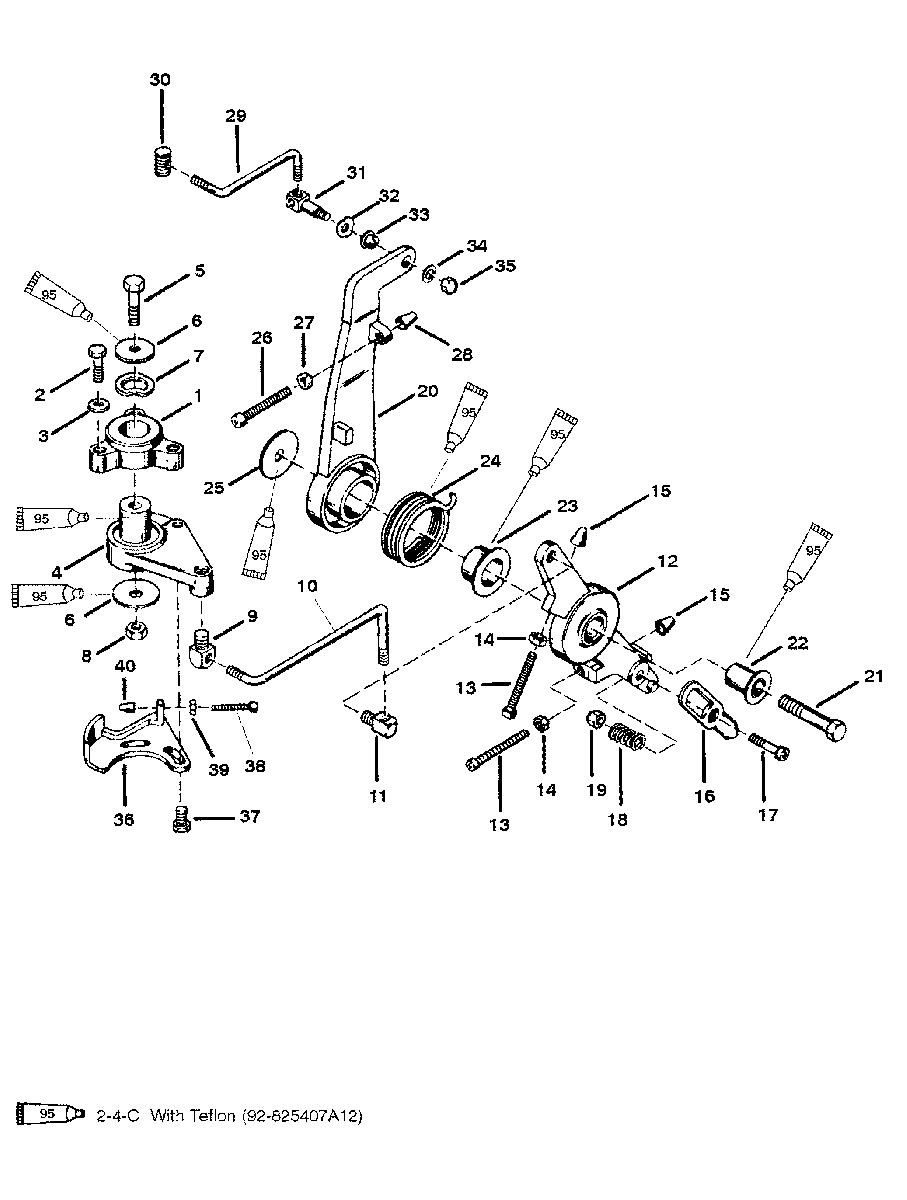

THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS) для Mariner - 40 (4 CYL.) 0C159200 AND UP
-
№АртикулНазвание
-
172040T BRACKET-THROTTLE ACTUATORBRACKET-THROTTLE ACTUATOR
-
210-53576 SCREW-THROTTLE ACTUATOR BRACKET (1-1/8 IN.)SCREW-THROTTLE ACTUATOR BRACKET (1-1/8 IN.)
-
313-26993 LOCKWASHER-THROTTLE ACTUATOR BRACKET SCREWLOCKWASHER-THROTTLE ACTUATOR BRACKET SCREW
-
4815603A1 ACTUATOR-THROTTLEACTUATOR-THROTTLE
-
510-21449 SCREW-BRACKET TO THROTTLE ACTUATOR (2 IN.)SCREW-BRACKET TO THROTTLE ACTUATOR (2 IN.)
-
612-25893 WASHER-BRACKET SCREWWASHER-BRACKET SCREW
-
713-62172 WAVE WASHER-BRACKET SCREWWAVE WASHER-BRACKET SCREW
-
811-29250 NUT-BRACKET SCREWNUT-BRACKET SCREW
-
957440 SWIVEL-LINK ROD TO THROTTLE ACTUATORSWIVEL-LINK ROD TO THROTTLE ACTUATOR
-
1072043 LINK RODLINK ROD
-
1157440 SWIVEL-LINK ROD TO THROTTLE ARMSWIVEL-LINK ROD TO THROTTLE ARM
-
12NLA THROTTLE ARM (ORDER 815603A1)THROTTLE ARM (ORDER 815603A1)
-
1310-89778 SCREW-ADJUSTING - THROTTLE ARM (2-1/4 IN.)SCREW-ADJUSTING - THROTTLE ARM (2-1/4 IN.)
-
1310-25158 SCREW-ADJUSTING - THROTTLE ARM (1-3/4 IN.)SCREW-ADJUSTING - THROTTLE ARM (1-3/4 IN.)
-
1411-68219 NUT-ADJUSTING SCREWNUT-ADJUSTING SCREW
-
1548039 CAP-ADJUSTING SCREWCAP-ADJUSTING SCREW
-
1639483 LATCH-THROTTLE ARMLATCH-THROTTLE ARM
-
1710-69026 SCREW-LATCH TO THROTTLE ARM (7/8 IN.)SCREW-LATCH TO THROTTLE ARM (7/8 IN.)
-
1824-20099 SPRING-COMPRESSION-LATCH SCREWSPRING-COMPRESSION-LATCH SCREW
-
1911-826709109 NUT-LATCH SCREWNUT-LATCH SCREW
-
20815607A1 LEVER-SPARK ADVANCELEVER-SPARK ADVANCE
-
2110-818165 SCREW-LEVER AND ARM TO CYLINDER BLOCK (1-3/4 IN.)SCREW-LEVER AND ARM TO CYLINDER BLOCK (1-3/4 IN.)
-
2223-55164 BUSHING-LEVER AND ARM SCREWBUSHING-LEVER AND ARM SCREW
-
2323-55171 BUSHING-LEVER AND ARM SCREWBUSHING-LEVER AND ARM SCREW
-
2424-55162 SPRING-RETURN-SPARK ADVANCE LEVERSPRING-RETURN-SPARK ADVANCE LEVER
-
2512-46765 WASHER-LEVER AND ARM SCREWWASHER-LEVER AND ARM SCREW
-
2610-25158 SCREW-ADJUSTING-SPARK ADVANCE LEVER (1-3/4 IN.)SCREW-ADJUSTING-SPARK ADVANCE LEVER (1-3/4 IN.)
-
2711-68219 NUT-ADJUSTING SCREWNUT-ADJUSTING SCREW
-
2848039 CAP-ADJUSTING SCREWCAP-ADJUSTING SCREW
-
2976056 LINK ROD-SPARK ADVANCE (2-1/2 IN. LONG)LINK ROD-SPARK ADVANCE (2-1/2 IN. LONG)
-
3074897T PIVOT-THREADED-LINK ROD TO TRIGGERPIVOT-THREADED-LINK ROD TO TRIGGER
-
3177013A1 SWIVEL-LINK ROD TO SPARK ADVANCE LEVERSWIVEL-LINK ROD TO SPARK ADVANCE LEVER
-
3213-29402 WAVE WASHER-SWIVELWAVE WASHER-SWIVEL
-
3323-26856 BUSHLNG-LINK ROD SWIVELBUSHLNG-LINK ROD SWIVEL
-
3412-73288 WASHER-LINK ROD SWIVELWASHER-LINK ROD SWIVEL
-
3511-45774 NUT-LINK ROD SWIVELNUT-LINK ROD SWIVEL
-
3666778T PLATE-THROTTLE ACTUATORPLATE-THROTTLE ACTUATOR
-
3710-46420 SCREW-PLATE TO THROTTLE ACTUATOR (1/2 IN.)SCREW-PLATE TO THROTTLE ACTUATOR (1/2 IN.)
-
3810-23015 SCREW-ADJUSTING-PLATE (1 IN.)SCREW-ADJUSTING-PLATE (1 IN.)
-
3911-68219 NUT-ADJUSTING SCREWNUT-ADJUSTING SCREW
-
4048039 CAP-ADJUSTING SCREWCAP-ADJUSTING SCREW
