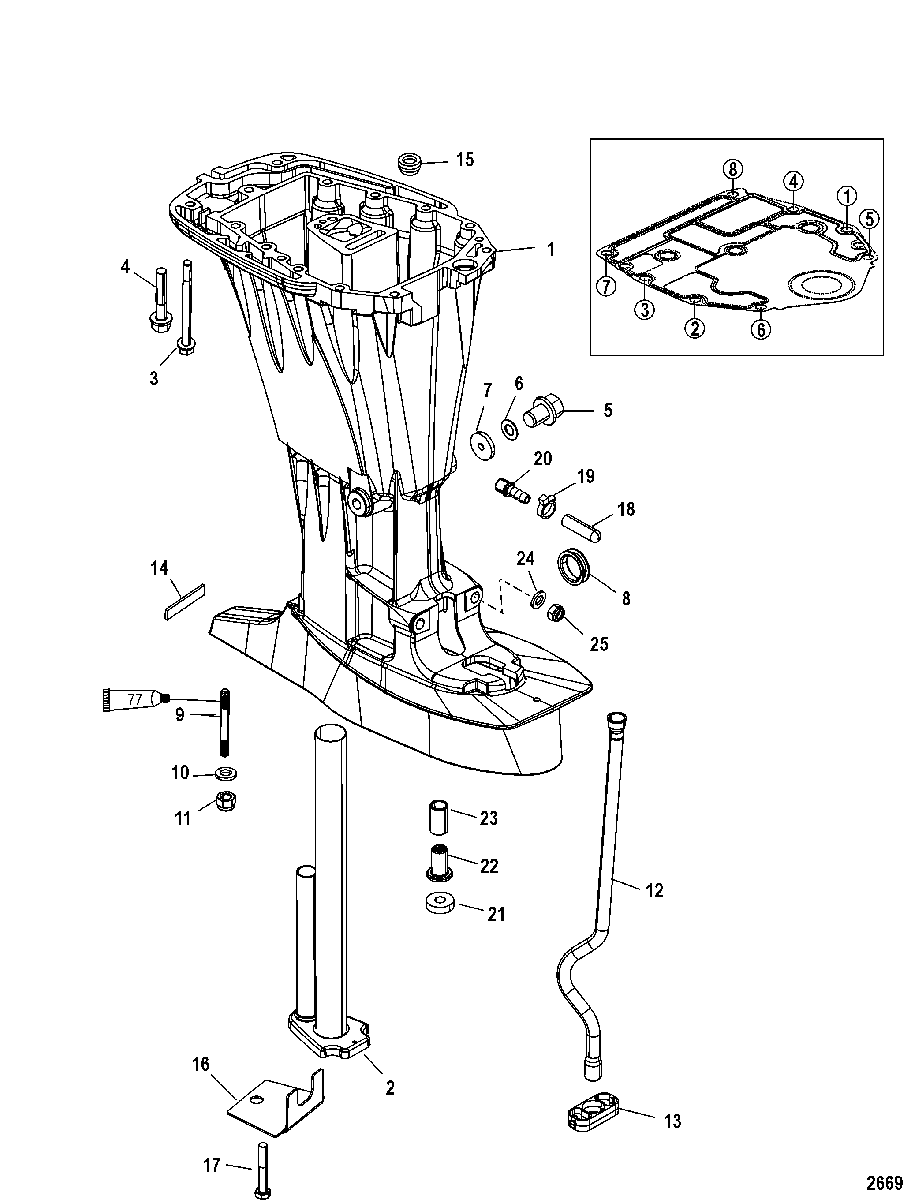

Driveshaft Housing(Long) для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1B227000 THRU 1B344306
-
№АртикулНазвание
-
11500-8M0118178 HOUSING, DriveshaftHOUSING, Driveshaft
-
2825220T06 PIPE, ExhaustPIPE, Exhaust
-
310-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
410-88960845 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
58288181 PLUG, DrainPLUG, Drain
-
627-828816 GASKETGASKET
-
7826276 BUMPERBUMPER
-
825-8M4504002 GROMMETGROMMET
-
916-823984 STUD, (M10 x 50)STUD, (M10 x 50)
-
1012-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1111-40140 NUT, (M10)NUT, (M10)
-
1232-897971A01 TUBE, WaterTUBE, Water
-
1354-828529 GUIDEGUIDE
-
148M0043364 BUMPERBUMPER
-
1542941001 SEAL, Water TubeSEAL, Water Tube
-
168M4503628 PLATEPLATE
-
1710-1993325 SCREW, (M10 x 25 MM)SCREW, (M10 x 25 MM)
-
1819-892286 CAPCAP
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2022-13035002 FITTINGFITTING
-
2123-813745 SPACERSPACER
-
2243585 COUPLINGCOUPLING
-
2323-855623 BUSHINGBUSHING
-
2412-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
2511-40140 NUT, (M10)NUT, (M10)
