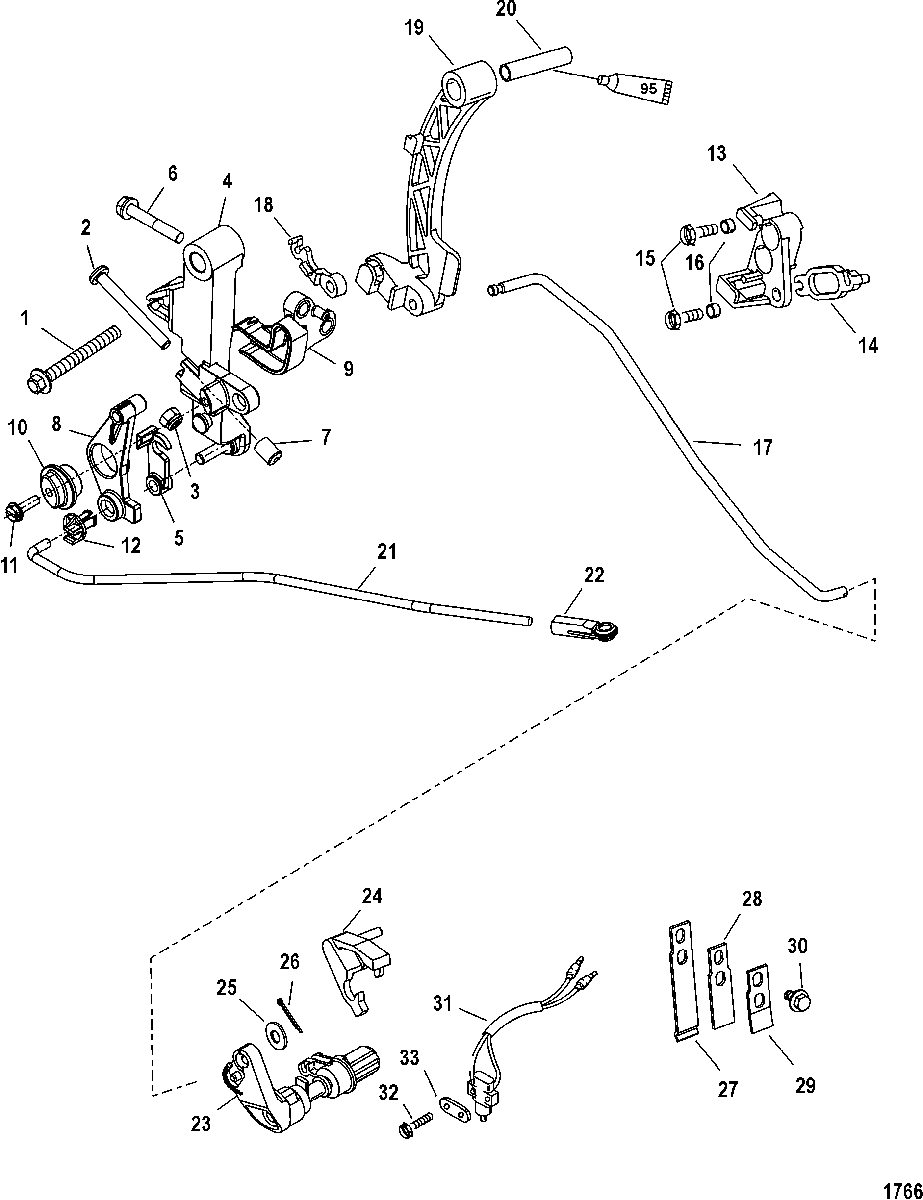

Linkage для Mariner - 40 EFI (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
4822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
5883160 RETAINER
(NON HANDLE)RETAINER
(NON HANDLE) -
610-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
742942 CAPCAP
-
8883006A1 ARM ASSEMBLY, ThrottleARM ASSEMBLY, Throttle
-
9879865 CAM, ThrottleCAM, Throttle
-
1023-883005 BUSHINGBUSHING
-
1110-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1223-932481 BUSHINGBUSHING
-
13827706A4 BRACKET
(NON HANDLE)BRACKET
(NON HANDLE) -
1498889 LATCH
(NON HANDLE)LATCH
(NON HANDLE) -
1510-8248324 SCREW, (M6 x 16)
(NON HANDLE)SCREW, (M6 x 16)
(NON HANDLE) -
1623-15885 SLEEVE
(NON HANDLE)SLEEVE
(NON HANDLE) -
17882820 SHIFT ROD
(NON HANDLE)SHIFT ROD
(NON HANDLE) -
18822459 RETAINER
(NON HANDLE)RETAINER
(NON HANDLE) -
198259571 LEVER, Shift
(NON HANDLE)LEVER, Shift
(NON HANDLE) -
2023-825078 BUSHINGBUSHING
-
21893780A01 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
228M0084742 SOCKETSOCKET
-
23826588A4 SHIFT SHAFT ASSEMBLY, HorizontalSHIFT SHAFT ASSEMBLY, Horizontal
-
248277071 RETAINERRETAINER
-
2512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2618-210711 COTTER PINCOTTER PIN
-
2724-826077 SPRING, DetentSPRING, Detent
-
2824-824993 SPRING, BackingSPRING, Backing
-
29824994 SPRING, PlateSPRING, Plate
-
3010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
3187-8M0052927 SWITCH
(ELECTRIC HANDLE MODELS)SWITCH
(ELECTRIC HANDLE MODELS) -
3210-88075020 SCREW, (M3 x 20)
(ELECTRIC HANDLE MODELS)SCREW, (M3 x 20)
(ELECTRIC HANDLE MODELS) -
33824923 PLATE, Switch
(ELECTRIC HANDLE MODELS)PLATE, Switch
(ELECTRIC HANDLE MODELS)
