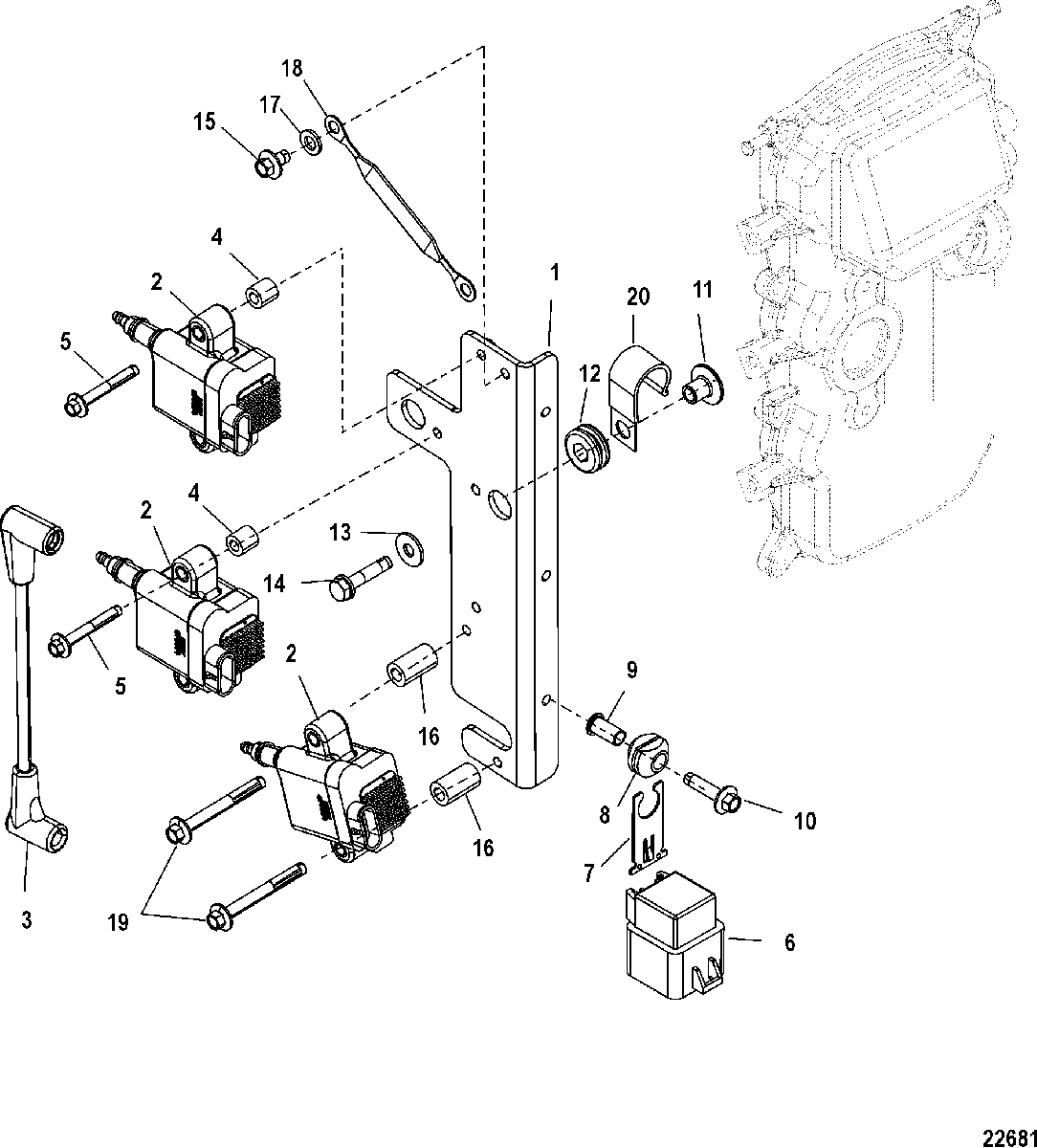

Ignition Coil для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1C000001 THRU 1C043416
-
№АртикулНазвание
-
1892858T PLATE, Coil MountingPLATE, Coil Mounting
-
2300-8M0077471 COIL, IgnitionCOIL, Ignition
-
384-881908T CABLE SETCABLE SET
-
423-892863001 SPACERSPACER
-
510-82129145 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
6882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
7828102 BRACKETBRACKET
-
825-818967 GROMMETGROMMET
-
923-818968 BUSHINGBUSHING
-
1010-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1123-856954 BUSHINGBUSHING
-
1225-834985 GROMMETGROMMET
-
1312-4002316 WASHERWASHER
-
1410-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1510-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1623-892863002 SPACERSPACER
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1884-858414A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
1910-82129155 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
2054-55098 J CLIPJ CLIP
