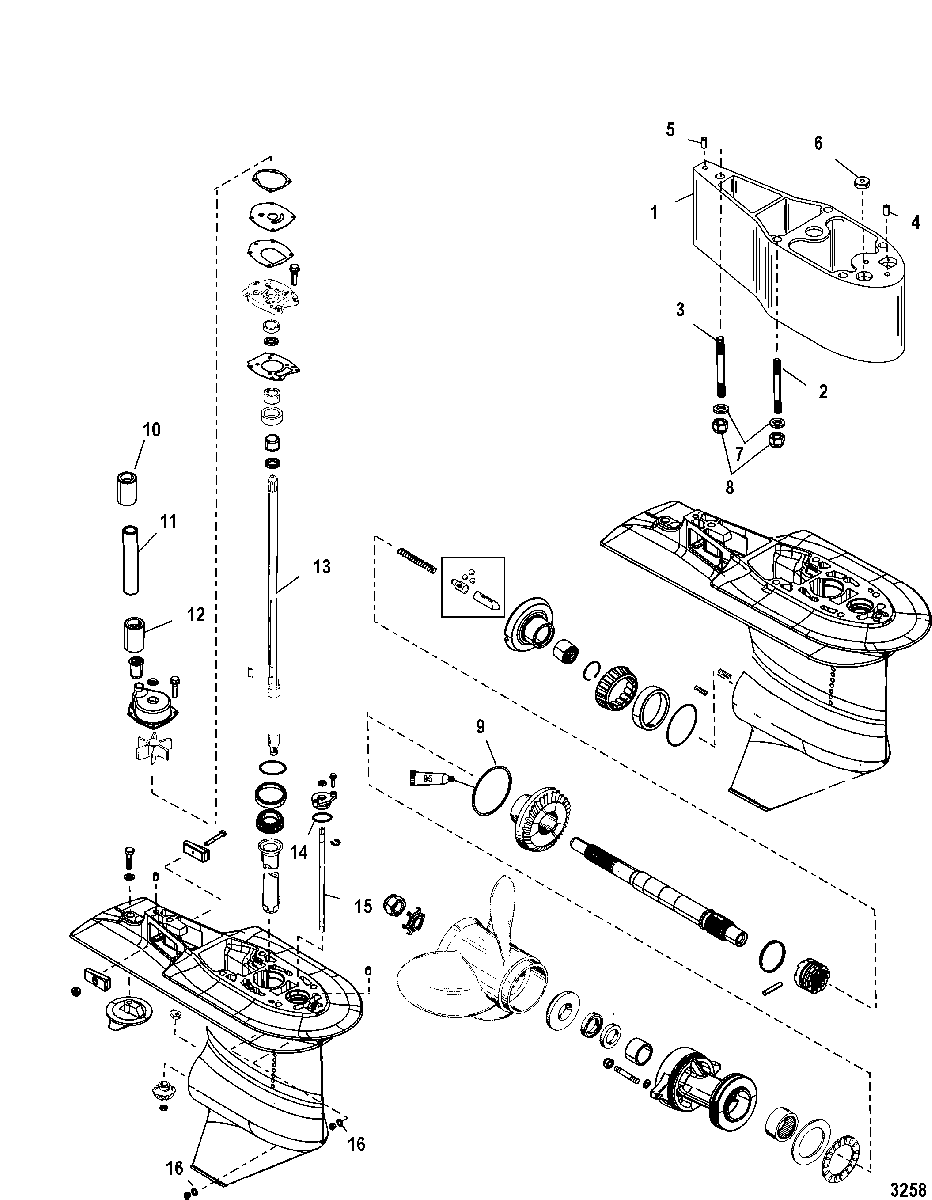

XL Extension Kit для Mariner - 40 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
-12092A18 EXTENSION KIT, Driveshaft - 5 InchEXTENSION KIT, Driveshaft - 5 Inch
-
112092A3 SPACER KITSPACER KIT
-
216-903503 STUD, (M10 x 190)STUD, (M10 x 190)
-
316-903502 STUD, (M10 x 227)STUD, (M10 x 227)
-
417-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
623-11289 SPACERSPACER
-
712-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
811-40140 NUT, (M10)NUT, (M10)
-
925-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
1043023 SEALSEAL
-
1132-8M4501430 TUBE, WaterTUBE, Water
-
12430232 SEALSEAL
-
1345-875222A1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1425-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
15853908A1 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
1612-191833 SEALSEAL
