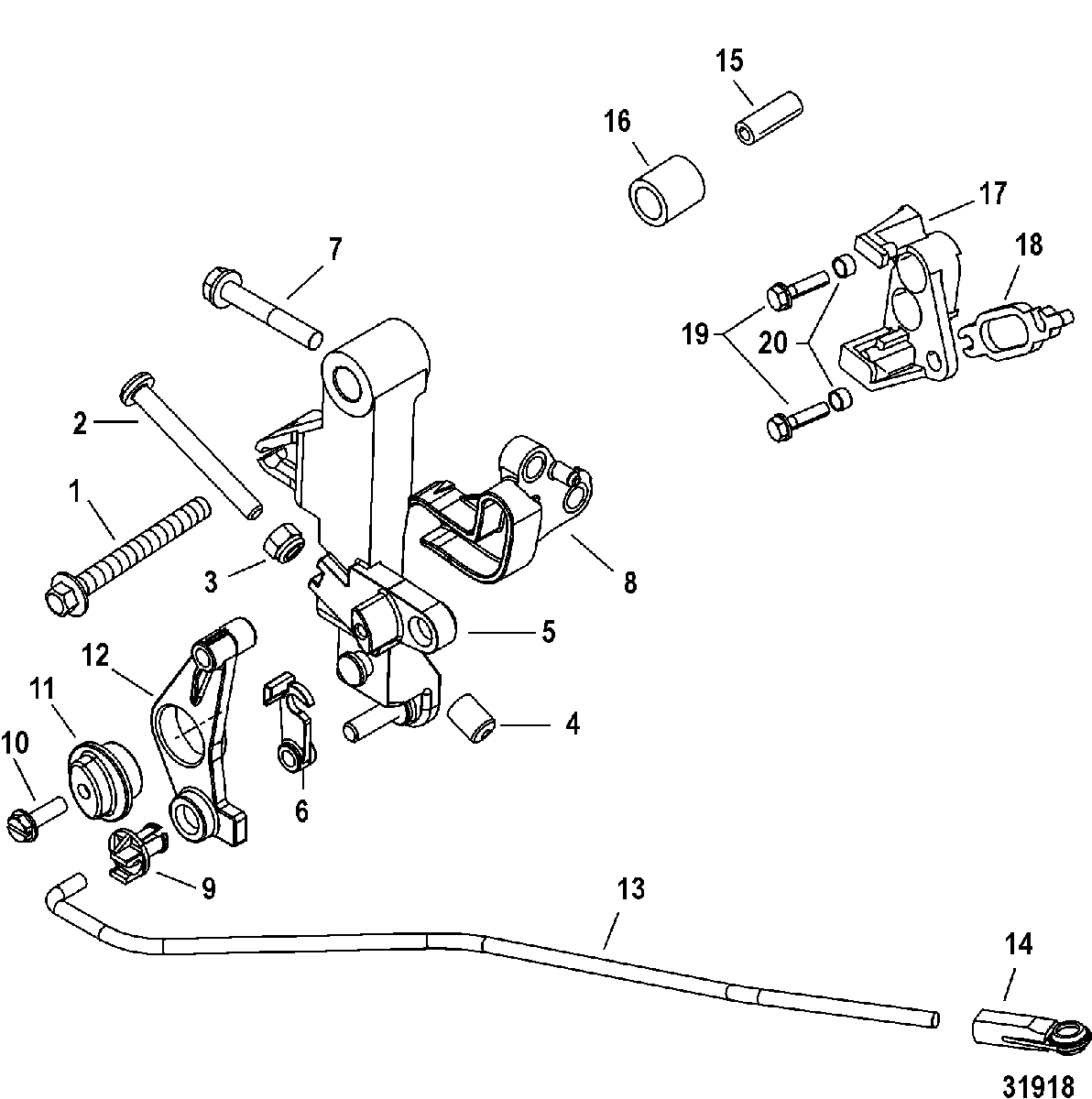

Throttle Linkage, Jet для Mariner - 40 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
110-4010770 SCREW, (M8 x 70)SCREW, (M8 x 70)
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
58226824 LEVER, ThrottleLEVER, Throttle
-
6883160 RETAINERRETAINER
-
710-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
8879865 CAM, ThrottleCAM, Throttle
-
923-932481 BUSHINGBUSHING
-
1010-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1123-883005 BUSHINGBUSHING
-
12883006A1 ARM ASSEMBLY, ThrottleARM ASSEMBLY, Throttle
-
13893780A01 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
148M0084742 SOCKETSOCKET
-
1523-825078 BUSHINGBUSHING
-
168M0007035 SPACER, (1.49 x 22 x 24)SPACER, (1.49 x 22 x 24)
-
17827706A4 BRACKETBRACKET
-
1898889 LATCHLATCH
-
1910-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2023-15885 SLEEVESLEEVE
