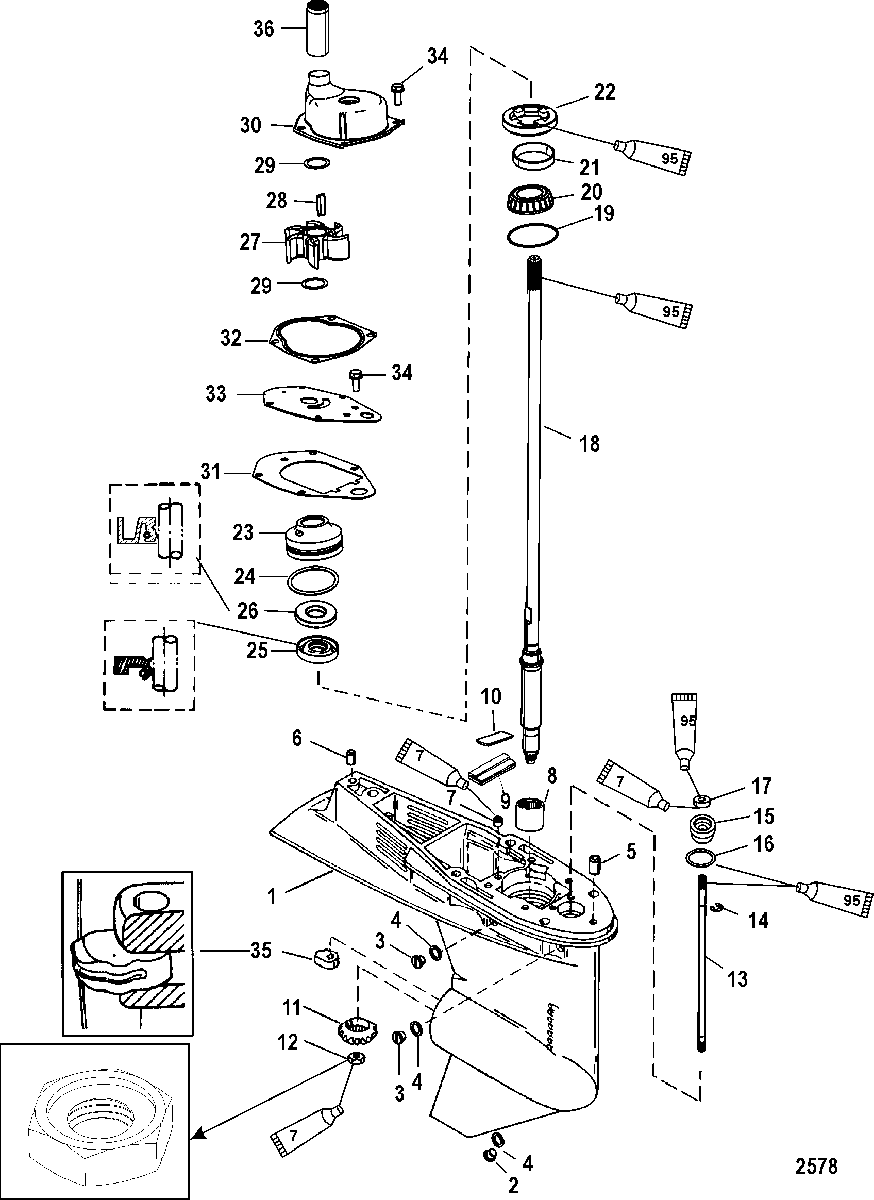

Gear Housing(Driveshaft)(1.83:1 Gear Ratio) для Mariner - 40 EFI (4 CYL.)(4-STROKE) 1C000001 THRU 1C050251
-
№АртикулНазвание
-
-1671-9760T41 GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter)GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter)
-
11671-9760T42 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
210-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
310-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
426-830749 SEALSEAL
-
517-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
617-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
722-878089 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
831-812768 BEARING, RollerBEARING, Roller
-
9818226A1 SEAL/PLATE KITSEAL/PLATE KIT
-
10NSS NOT SOLD SEPARATE, Filler PlateNOT SOLD SEPARATE, Filler Plate
-
1143-859103T GEAR, Pinion - 12 TeethGEAR, Pinion - 12 Teeth
-
1211-55910 NUT, (.437-20)NUT, (.437-20)
-
13859607A1 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
1453-29641 E RINGE RING
-
1523-813696A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
1625-45258 O-RING, (.987 x .103)O-RING, (.987 x .103)
-
1726-8164641 SEAL, OilSEAL, Oil
-
1845-859102 DRIVESHAFT, LongDRIVESHAFT, Long
-
1915-8M0063262 SHIM SETSHIM SET
-
2031-77420A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
21NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
2211-8128201 NUTNUT
-
2346-812966A7 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2425-30224 O-RING, (1.859 x .139)O-RING, (1.859 x .139)
-
2526-814669 SEAL, OilSEAL, Oil
-
2626-814670 SEAL, OilSEAL, Oil
-
2747-19453T IMPELLERIMPELLER
-
2828-8M0032831 KEYKEY
-
2912-8M0005777 WASHERWASHER
-
3046-812966A12 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
3127-8M4502052 GASKET (Lower)GASKET (Lower)
-
3227-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
3319700A2 FACE PLATEFACE PLATE
-
3410-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
35760394 CAM, Shift ControlCAM, Shift Control
-
368M0109708 COUPLERCOUPLER
-
-26-814669A2 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-812966A12 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
