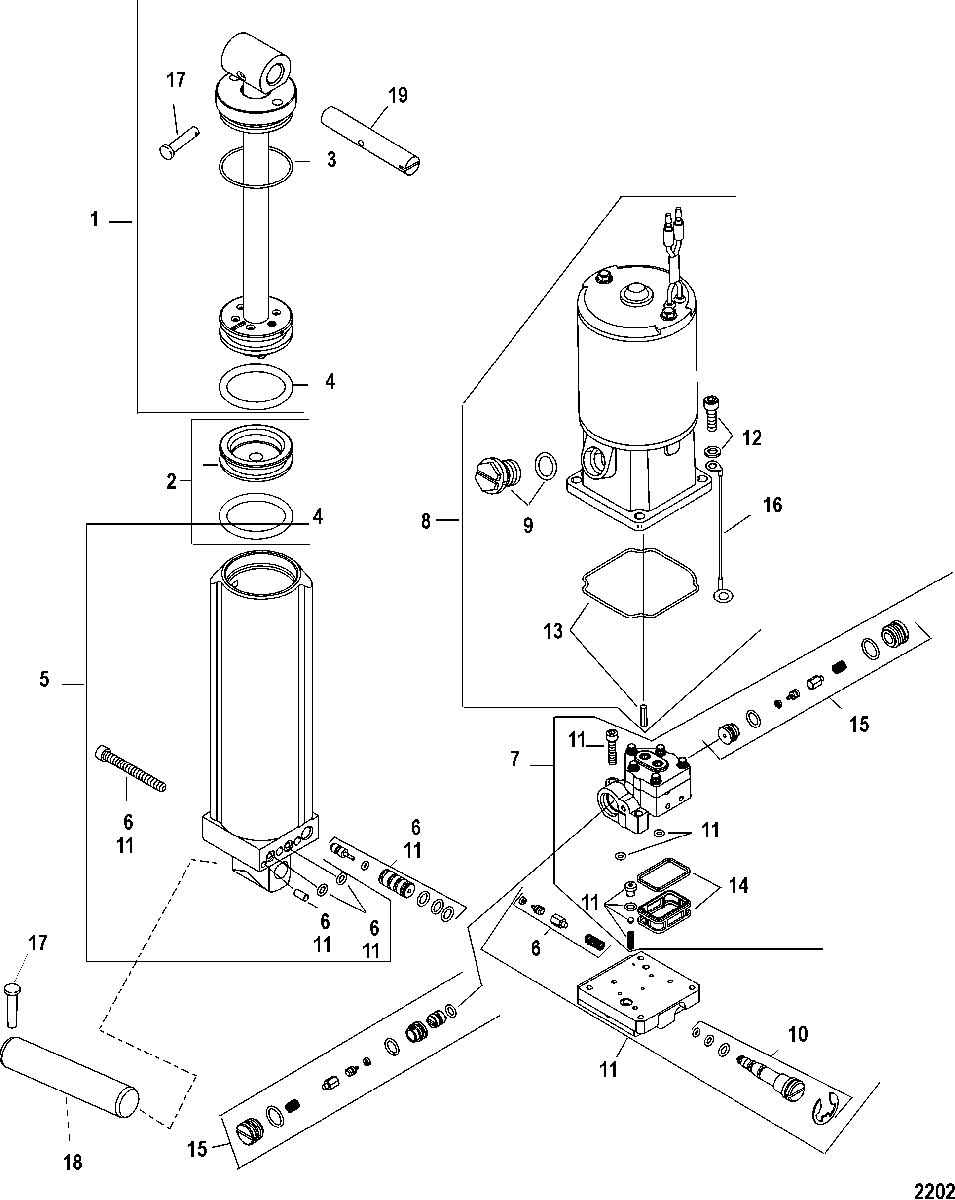

Power Trim для Mariner - 40 EFI (4 CYL.)(4-STROKE) 1C050252 & Up
-
№АртикулНазвание
-
-8M0055011 POWER TRIM ASSEMBLYPOWER TRIM ASSEMBLY
-
18M0118573 SHOCK ROD KITSHOCK ROD KIT
-
2810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
325-893902A01 O-RING KITO-RING KIT
-
4NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
58M0055016 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
6893944A01 VAVLE KIT, Trim LimitVAVLE KIT, Trim Limit
-
78M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
8893907A02 MOTOR KITMOTOR KIT
-
922-8134351 PLUGPLUG
-
10893929A01 VALVE KIT, ReliefVALVE KIT, Relief
-
118M0055018 MANIFOLD KITMANIFOLD KIT
-
1210-809876A1 SCREW KIT, MotorSCREW KIT, Motor
-
13809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 POPPET KITPOPPET KIT
-
1688238A18 CABLE ASSEMBLYCABLE ASSEMBLY
-
-25-8M0089947 O-RING KITO-RING KIT
-
1717-821539 PIN, TrilobePIN, Trilobe
-
1817-19607 PINPIN
-
1917-822869001 PINPIN
