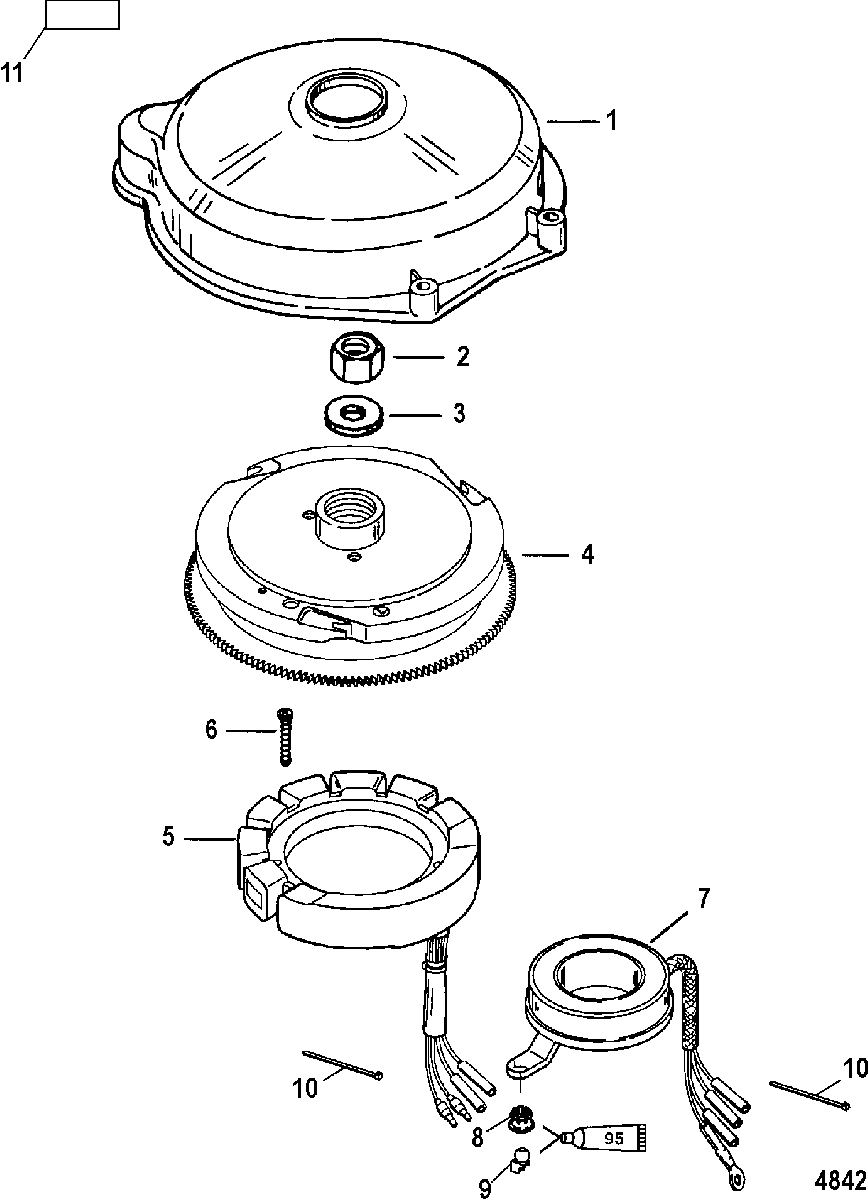

Flywheel and Stator, Electric для Mariner - 40 JET 0T178500 THRU 0T979999
-
№АртикулНазвание
-
1812777T1 COVER ASSEMBLYCOVER ASSEMBLY
-
211-42979 NUT, (M16)NUT, (M16)
-
312-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
4261-859234T24 FLYWHEELFLYWHEEL
-
5398-832075A21 IGNITION STATOR KITIGNITION STATOR KIT
-
610-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
7854512T TRIGGERTRIGGER
-
893421 SWIVEL BALLSWIVEL BALL
-
993254 SWIVEL BASESWIVEL BASE
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1137-856985A7 DECAL, EPA Label Information
(1999)DECAL, EPA Label Information
(1999) -
1137-804665A00 DECAL, EPA Label Information
(2000)DECAL, EPA Label Information
(2000) -
1137-804665A01 DECAL, EPA Label Information
(2001)DECAL, EPA Label Information
(2001) -
1137-804665A02 DECAL, EPA Label Information
(2002)DECAL, EPA Label Information
(2002) -
1137-804665A03 DECAL, EPA Label Information
(2003)DECAL, EPA Label Information
(2003) -
1137-804665A04 DECAL, EPA Label Information
(2004)DECAL, EPA Label Information
(2004)
