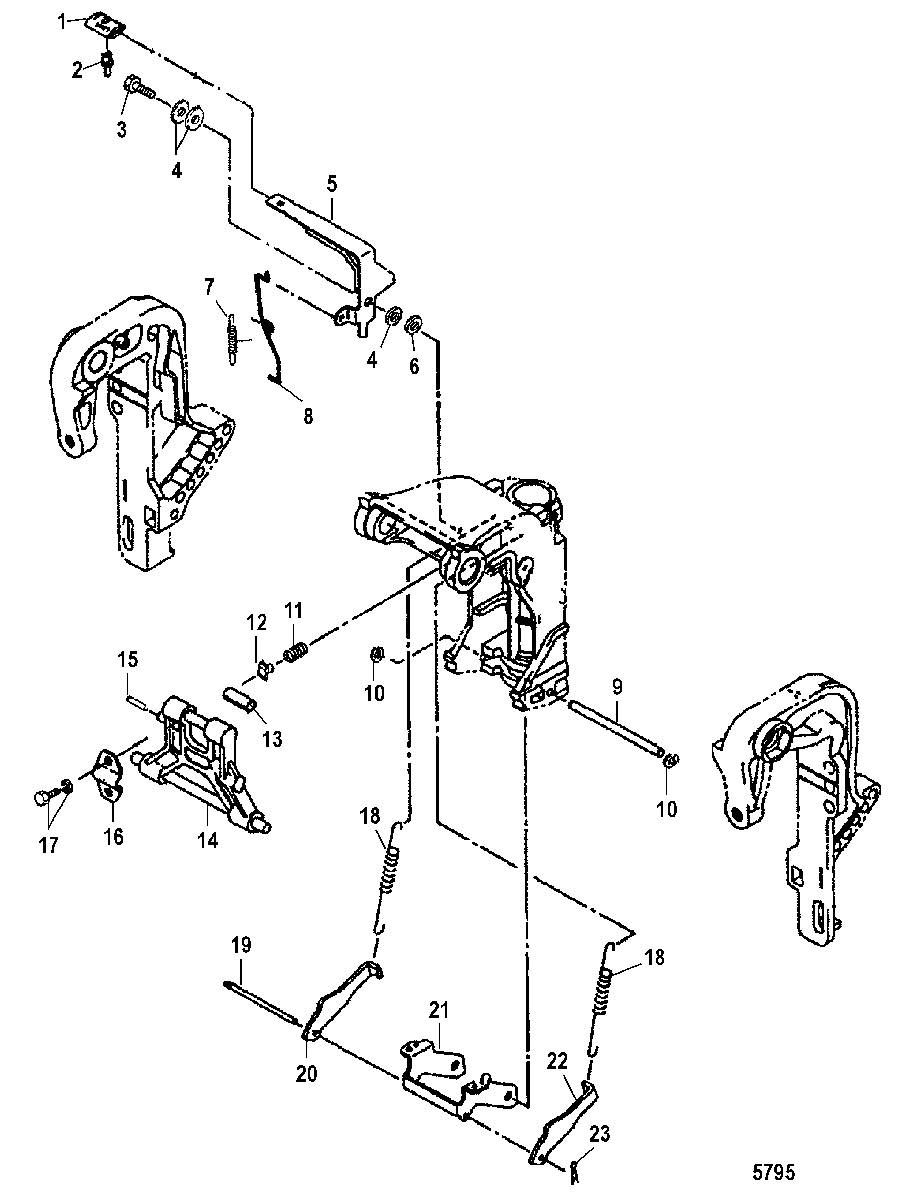

Manual Tilt для Mariner - 40 LIGHTNING XR (International) 0N000513 THRU 0N056164
-
№АртикулНазвание
-
1853775 GRIPGRIP
-
28M0051399 BUTTONBUTTON
-
310-803790001 SHAFT/BOLT, Reverse Lock LeverSHAFT/BOLT, Reverse Lock Lever
-
412-16192 WASHERWASHER
-
58M0059835 LEVER, Tilt StopperLEVER, Tilt Stopper
-
612-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
724-8040246 SPRINGSPRING
-
8804050 LINKLINK
-
9804046 SHAFT, Reverse LockSHAFT, Reverse Lock
-
1053-160572 E RINGE RING
-
1124-953832 SPRINGSPRING
-
12853774 STOPSTOP
-
138251131 BRACKETBRACKET
-
14825112008 STOPPER, TiltSTOPPER, Tilt
-
1517-9521813 PIN, SpringPIN, Spring
-
16879194006 SET PLATESET PLATE
-
1710-8230426 BOLTBOLT
-
1824-8040244 SPRING
(Short)SPRING
(Short) -
1824-8040245 SPRING
(Long)(X-Long)SPRING
(Long)(X-Long) -
19804047 ROD, Reverse LockROD, Reverse Lock
-
20804044 LOCK, Reverse (Starboard)LOCK, Reverse (Starboard)
-
21804045004 ARM, Reverse LockARM, Reverse Lock
-
228040441 LOCK, Reverse (Port)LOCK, Reverse (Port)
-
2318-8150261 COTTER PINCOTTER PIN
