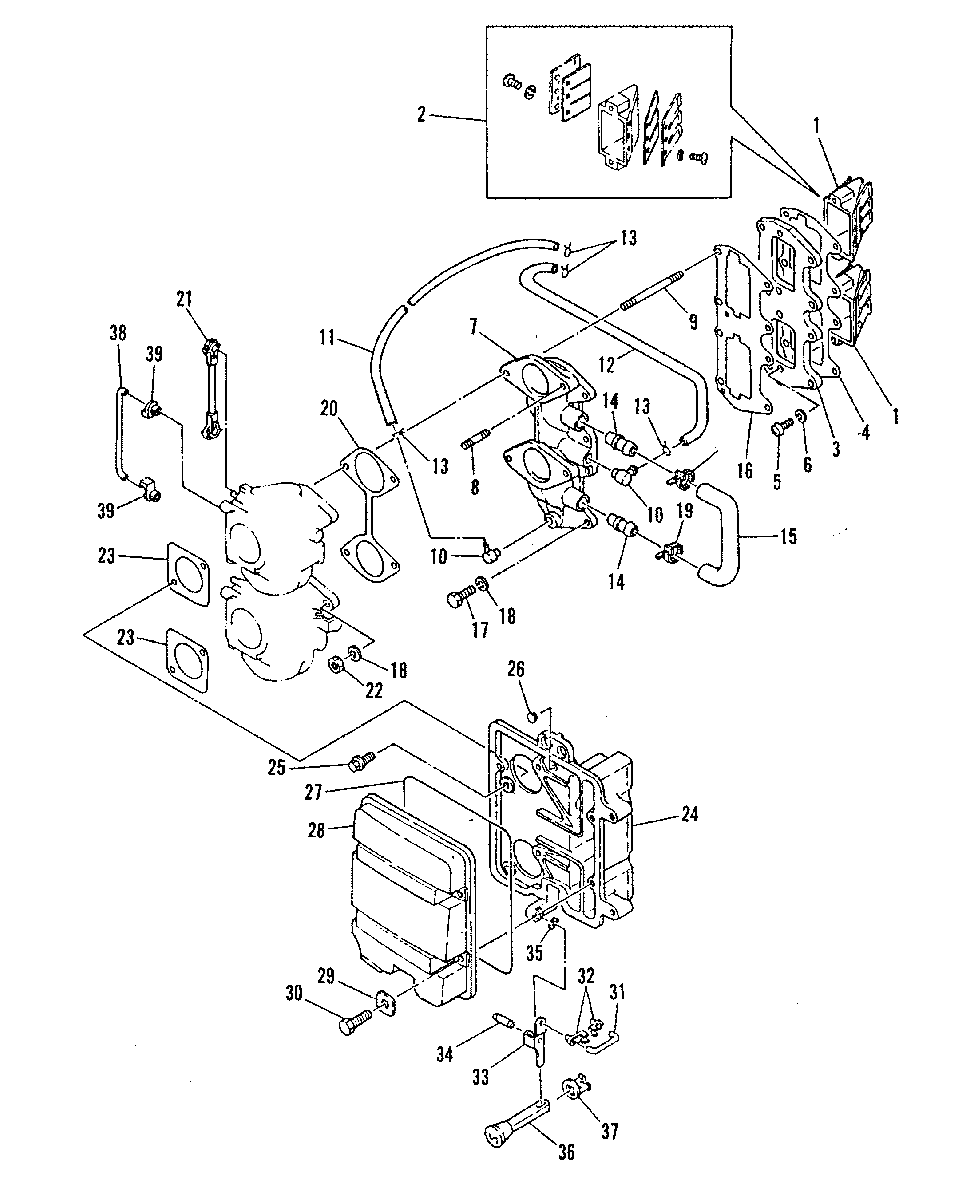

INTAKE MANIFOLD для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-350001 AND UP (ML)
-
№АртикулНазвание
-
134-94493M REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
234-84954M REED SETREED SET
-
383354M MANIFOLDMANIFOLD
-
427-83355 GASKETGASKET
-
510-83356M SCREWSCREW
-
613-82186M WASHERWASHER
-
797720M MANIFOLDMANIFOLD
-
816-811028M STUDSTUD
-
916-97721M STUDSTUD
-
1054-80717M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
1132-811045M HOSEHOSE
-
1232-811045M HOSEHOSE
-
1354-82046M CLIPCLIP
-
1422-97722M CONNECTORCONNECTOR
-
1532-97723M HOSEHOSE
-
1627-83355 GASKETGASKET
-
1710-82405M BOLTBOLT
-
1812-82214M WASHERWASHER
-
1956762 CLAMPCLAMP
-
2027-97725 GASKETGASKET
-
21810939M RODROD
-
2211-82389M NUTNUT
-
2327-97716 GASKETGASKET
-
24814563M COVERCOVER
-
2510-91686M BOLTBOLT
-
2625-97726M GROMMETGROMMET
-
2726-97714M SEALSEAL
-
2897715M COVERCOVER
-
2912-97717M WASHERWASHER
-
3010-826957M BOLTBOLT
-
3197718M RODROD
-
3216333 RETAINERRETAINER
-
3397719M LEVERLEVER
-
3417-82155M PINPIN
-
3513-81865M WASHERWASHER
-
3683960M KNOBKNOB
-
3725-84760M GROMMETGROMMET
-
38810938M RODROD
-
3916333 RETAINERRETAINER
-
-27-814556M POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 2POWERHEAD GASKET SET
CONTENTS INDICATED BY FOOTNOTE 2 -
-17068M CARBURETOR REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 1CARBURETOR REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 1
