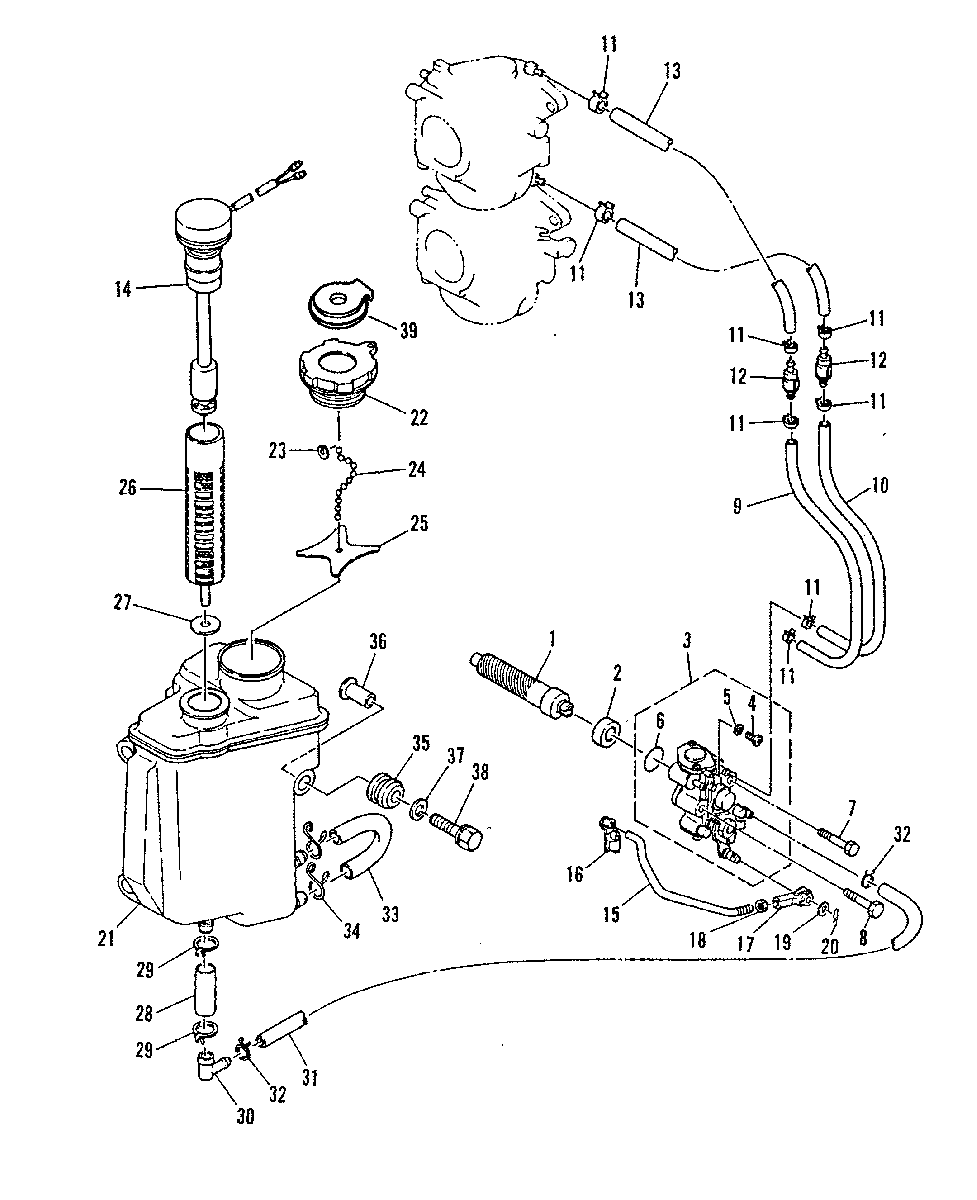

OIL PUMP для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-450001 AND UP (EL)
-
№АртикулНазвание
-
143-814577M DRIVEN GEARDRIVEN GEAR
-
223-814578M BUSHINGBUSHING
-
3814579M OIL INJECTION PUMP ASSEMBLYOIL INJECTION PUMP ASSEMBLY
-
410-814580M DRAIN PLUGDRAIN PLUG
-
527-814581M GASKETGASKET
-
625-814582M O-RINGO-RING
-
710-814583M BOLTBOLT
-
810-814584M BOLTBOLT
-
932-811045M HOSEHOSE
-
1032-811045M HOSEHOSE
-
1154-814585M CLAMPCLAMP
-
1221-814586M CHECK VALVECHECK VALVE
-
1332-814587M HOSEHOSE
-
14822883M OIL LEVEL GAUGE ASSEMBLYOIL LEVEL GAUGE ASSEMBLY
-
14822883M OIL LEVEL GAUGE ASSEMBLYOIL LEVEL GAUGE ASSEMBLY
-
15814588M RODROD
-
1697742M CONNECTORCONNECTOR
-
1716715M CONNECTORCONNECTOR
-
1811-83763M NUTNUT
-
1912-83768M WASHERWASHER
-
2054-814589M CLAMPCLAMP
-
21814590M OIL TANKOIL TANK
-
2236-814591M CAP ASSEMBLYCAP ASSEMBLY
-
2312-814592M WASHERWASHER
-
24814593M CHAINCHAIN
-
25814594M PLATEPLATE
-
26814595M STRAINERSTRAINER
-
2727-814596M GASKETGASKET
-
2832-811142M HOSEHOSE
-
2954-814598M CLAMPCLAMP
-
3022-814599M CONNECTORCONNECTOR
-
3132-814600M HOSEHOSE
-
3254-82047M CLAMPCLAMP
-
3332-814966M HOSEHOSE
-
3454-814967M CLAMPCLAMP
-
3525-881304 DAMPERDAMPER
-
3623-804344003 BUSHINGBUSHING
-
3712-83769M WASHERWASHER
-
3810-83285M BOLTBOLT
-
39811015M HOOKHOOK
