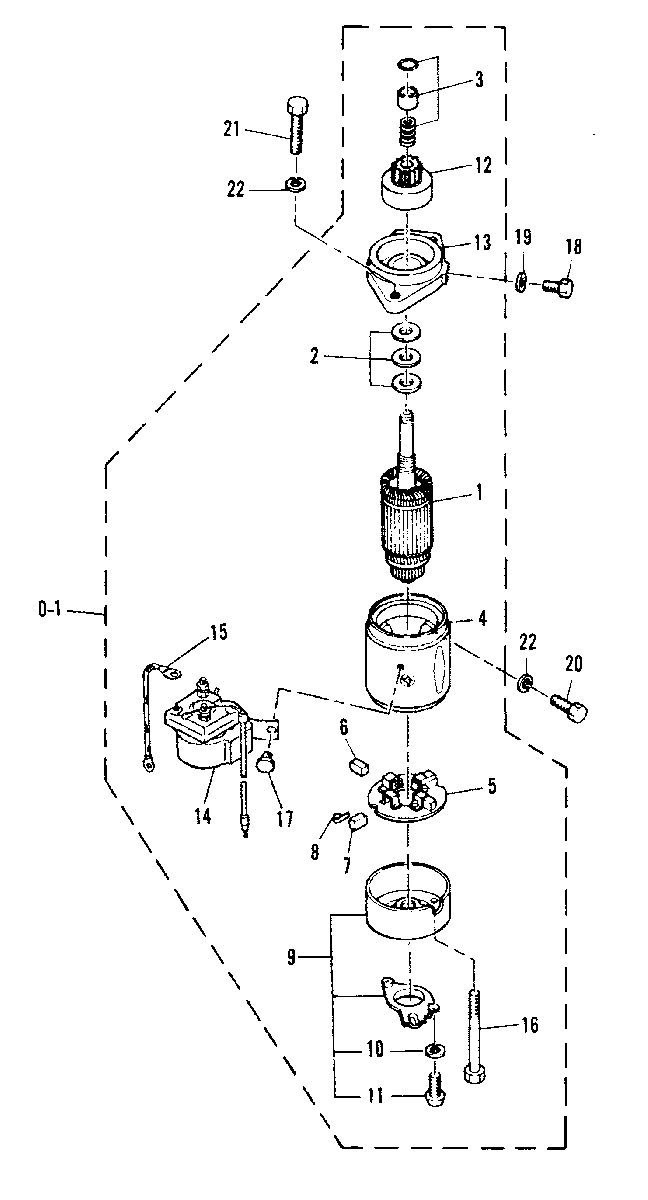

ELECTRIC START MOTOR для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A007736 ANU UP (M)
-
№АртикулНазвание
-
0-150-97072T ELECTRIC MOTOR ASS'YELECTRIC MOTOR ASS'Y
-
183651M ARMATUREARMATURE
-
212-83652M WASHER KITWASHER KIT
-
392671M STOP RING KITSTOP RING KIT
-
481493M STATORSTATOR
-
581507M BRUSH HOLDERBRUSH HOLDER
-
694475M BRUSH (+)BRUSH (+)
-
794478M BRUSH (-)BRUSH (-)
-
824-81496M SPRING, BRUSHSPRING, BRUSH
-
981499M REAR COVER ASS'YREAR COVER ASS'Y
-
1013-82206M WASHERWASHER
-
1110-82515M SCREWSCREW
-
1281504T GEARGEAR
-
1383654M FRONT BRACKETFRONT BRACKET
-
1489-96357T SOLENOIDSOLENOID
-
1592672M WIRE, LEADWIRE, LEAD
-
1610-81500M BOLTBOLT
-
1710-84088M BOLTBOLT
-
1810-82436M BOLTBOLT
-
1913-82215M WASHER, LOCKWASHER, LOCK
-
2010-84342M BOLTBOLT
-
2110-82441M BOLTBOLT
-
2213-82215M WASHER, LOCKWASHER, LOCK
