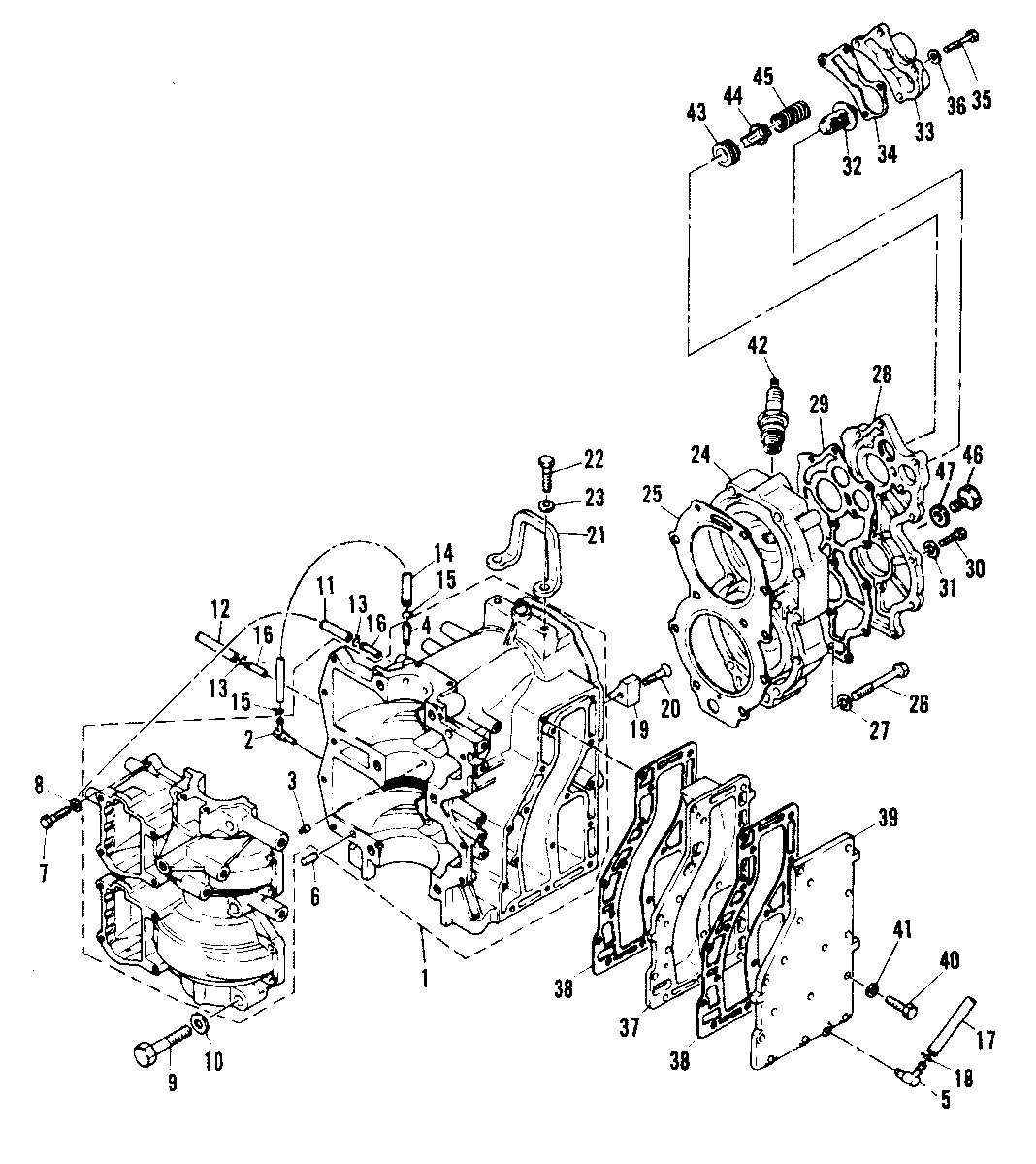

CRANKCASE AND CYLINDER HEAD для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A50631 THRU 403470 (EL)
-
№АртикулНазвание
-
1870-6982M CRANKCASE ASS'YCRANKCASE ASS'Y
-
221-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
317-81258M PIN, DOWELPIN, DOWEL
-
422-80122M FITTING, WATERFITTING, WATER
-
522-83326M FITTING, WATERFITTING, WATER
-
617-82368M PIN, DOWELPIN, DOWEL
-
710-82405M BOLTBOLT
-
812-81792M WASHERWASHER
-
910-83327M BOLTBOLT
-
1012-81807M WASHERWASHER
-
1132-811045M HOSEHOSE
-
1232-811045M HOSEHOSE
-
1354-82046M CLAMPCLAMP
-
1432-83328M HOSEHOSE
-
1554-82046M CLAMPCLAMP
-
1621-83329M FITTING, DRAINFITTING, DRAIN
-
1732-81323M HOSEHOSE
-
1854-82047M CLAMPCLAMP
-
1983330M ANODEANODE
-
2010-82168M SCREWSCREW
-
21814553M BRACKET, ENGINEBRACKET, ENGINE
-
2210-82439M BOLTBOLT
-
2313-82215M WASHER, LOCKWASHER, LOCK
-
24968-6983M HEAD, CYLINDERHEAD, CYLINDER
-
2527-95414 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2610-82408M BOLTBOLT
-
2712-80564M WASHERWASHER
-
2883333M COVER, CYLINDER HEAD
SERIAL 00000000-00004320COVER, CYLINDER HEAD
SERIAL 00000000-00004320 -
2894480M COVER, CYLINDER HEAD
SERIAL 00004321-09999999COVER, CYLINDER HEAD
SERIAL 00004321-09999999 -
2927-83334M GASKET, HEAD VOERGASKET, HEAD VOER
-
3010-84058M BOLTBOLT
-
3112-82214M WSHERWSHER
-
3299080M THERMOSTATTHERMOSTAT
-
3319255M COVE,R THERMOSTATCOVE,R THERMOSTAT
-
3427-83336M GASKET, THEROSTATGASKET, THEROSTAT
-
3510-83285M BOLTBOLT
-
3612-82214M WASHERWASHER
-
3797707M INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
3827-83338 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
3983339M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
4010-82405M BOLTBOLT
-
4112-82214M WASHERWASHER
-
4233-8M0114741 SPARK PLUG (B-8HS) NGKSPARK PLUG (B-8HS) NGK
-
4325-82067M GROMMETGROMMET
-
4481267M VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
4524-83340M SPRINGSPRING
-
4622-81926M PLUG
SERIAL 00000432-09999999PLUG
SERIAL 00000432-09999999 -
4727-81990M GASKET
SERIAL 00000000-00004321GASKET
SERIAL 00000000-00004321 -
4794482M POWERHEAD ASSY'S, COMPLETE (SEE NOTE)POWERHEAD ASSY'S, COMPLETE (SEE NOTE)
-
4727-94483M GASKET SET, POWERHEADGASKET SET, POWERHEAD
