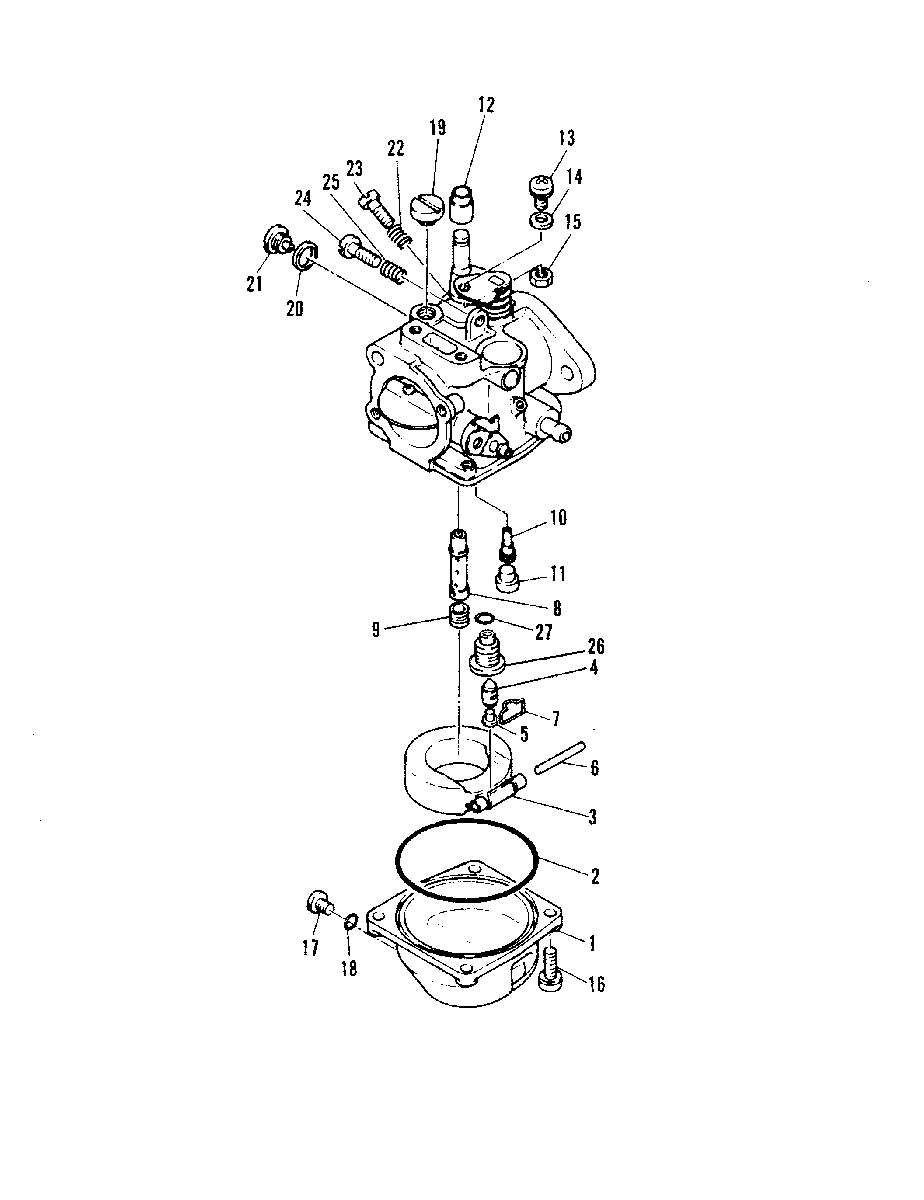

CARBURETOR для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B002781 AND UP (M)
-
№АртикулНазвание
-
0-11383-7991M CARBURETOR ASS'YCARBURETOR ASS'Y
-
194495M FLOAT BOWLFLOAT BOWL
-
225-83362M O-RINGO-RING
-
3891730A01 FLOATFLOAT
-
483364M INLET NEEDLEINLET NEEDLE
-
517-92639M PIN,INLET NEEDLEPIN,INLET NEEDLE
-
617-81278M PINPIN
-
754-8M0120624 CLIPCLIP
-
894496M NOZZLE,MAINNOZZLE,MAIN
-
994779M JET MAIN(#150)JET MAIN(#150)
-
1094497M JET,SLOW(#80)JET,SLOW(#80)
-
1122-8M0080455 PLUGPLUG
-
1283370M COLLARCOLLAR
-
1310-83371M SCREW WITH WASHERSCREW WITH WASHER
-
1412-83372M WASHERWASHER
-
1511-82388M NUTNUT
-
1610-11796M SCREW WITH WASHERSCREW WITH WASHER
-
1710-81293M SCREWSCREW
-
1825-94498M O-RINGO-RING
-
1910-83375M SCREWSCREW
-
2012-92636M WASHERWASHER
-
2110-81292M SCREWSCREW
-
2224-94499M SPRINGSPRING
-
2310-83889M SCREW,IDLE MIXTURESCREW,IDLE MIXTURE
-
2410-81277M SCREW,IDLE SPEEDSCREW,IDLE SPEED
-
2524-82080M SPRINGSPRING
-
2694726M VALVE SEATVALVE SEAT
-
2725-97070M O-RING
SERIAL 00004416-09999999O-RING
SERIAL 00004416-09999999 -
94500M CONTENTS OF CARBURETOR REPAIR KIT (M-94500M)
REPLACEMENT PARTSCONTENTS OF CARBURETOR REPAIR KIT (M-94500M)
REPLACEMENT PARTS
