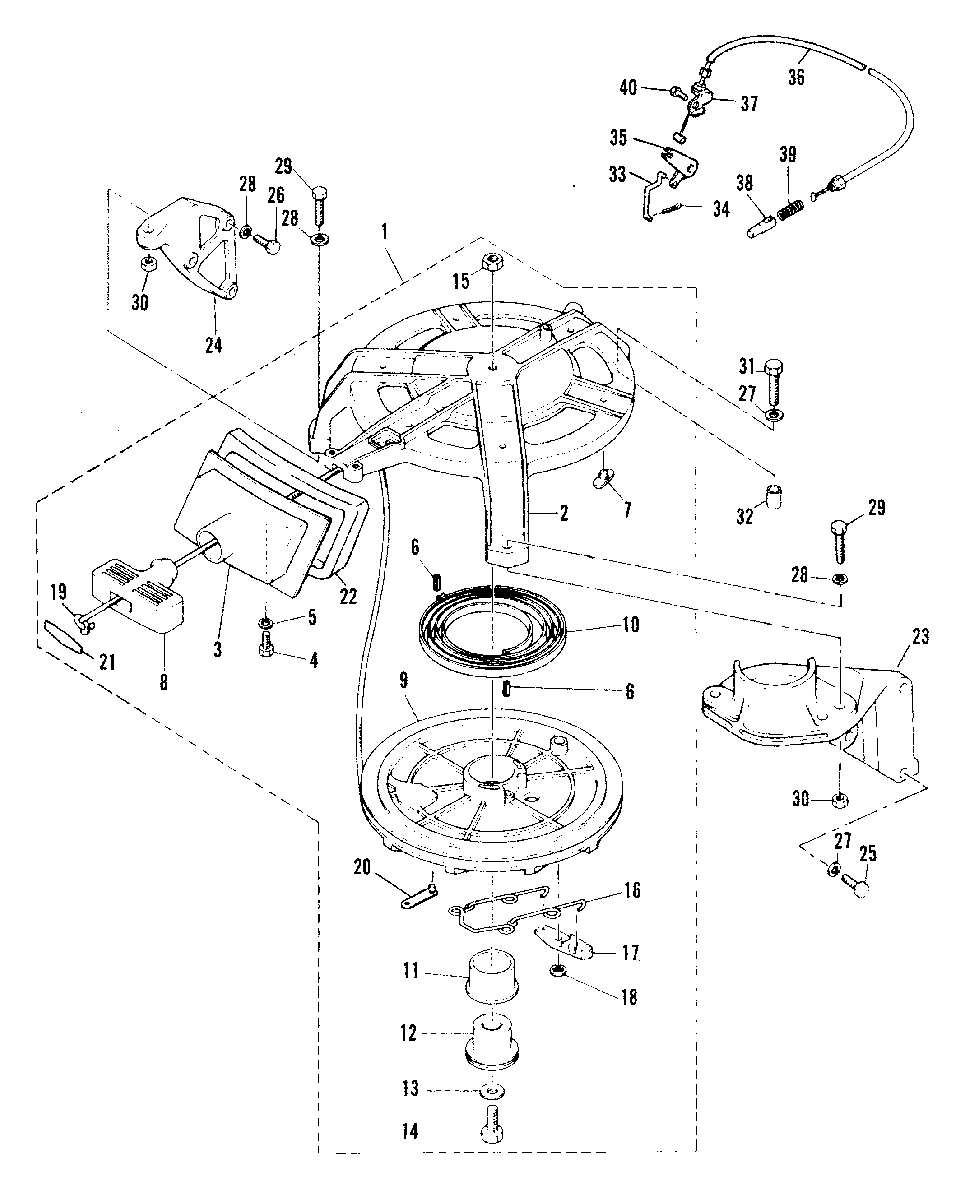

RECOIL STARTER для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B405251 AND UP (EL)
-
№АртикулНазвание
-
12169-7101M STARTER ASS'YSTARTER ASS'Y
-
22169-811912M HOUSING STARTERHOUSING STARTER
-
383583M GUIDE, STARTER ROPEGUIDE, STARTER ROPE
-
410-826957M BOLTBOLT
-
512-82214M WASHER, LOCKWASHER, LOCK
-
617-82157M PIN, ROLLPIN, ROLL
-
723-83585M BUSHINGBUSHING
-
8814491A1 HANDLE, STARTERHANDLE, STARTER
-
950-83587M STARTER, SHEAVESTARTER, SHEAVE
-
1024-83588M SPRING, STARTERSPRING, STARTER
-
1123-83589M BUSHINGBUSHING
-
1223-83590M SPACERSPACER
-
1312-81801M WASHERWASHER
-
1410-84342M BOLTBOLT
-
1511-82382M NUTNUT
-
1624-83591M SPRING DRIVE PAWLSPRING DRIVE PAWL
-
1784894M PAWL, DRIVEPAWL, DRIVE
-
1853-84895M SNAP RINGSNAP RING
-
1950-12066Q10 STARTER ROPESTARTER ROPE
-
2054-84893M CLIPCLIP
-
21814491A1 COVERCOVER
-
2293107M SEALSEAL
-
2383629M BRACKET(PORT)BRACKET(PORT)
-
2483593M BRACKET(STARBOARD)BRACKET(STARBOARD)
-
2510-82441M BOLTBOLT
-
2610-82405M BOLTBOLT
-
2713-82215M WASHER,LOCKWASHER,LOCK
-
2813-82212M WASHER,LOCKWASHER,LOCK
-
2910-83285M BOLTBOLT
-
3011-82389M NUTNUT
-
3110-84236M BOLTBOLT
-
3217-14229M SPACERSPACER
-
3383595M RODROD
-
3418-82125M PIN,COTTERPIN,COTTER
-
3583596M LEVERLEVER
-
3683597M CABLE,STARTER STOPCABLE,STARTER STOP
-
3793106M BRACKETBRACKET
-
3881106M PLUNGER,STARTER STOPPLUNGER,STARTER STOP
-
3924-82079M SPRINGSPRING
-
4010-91772M BOLTBOLT
