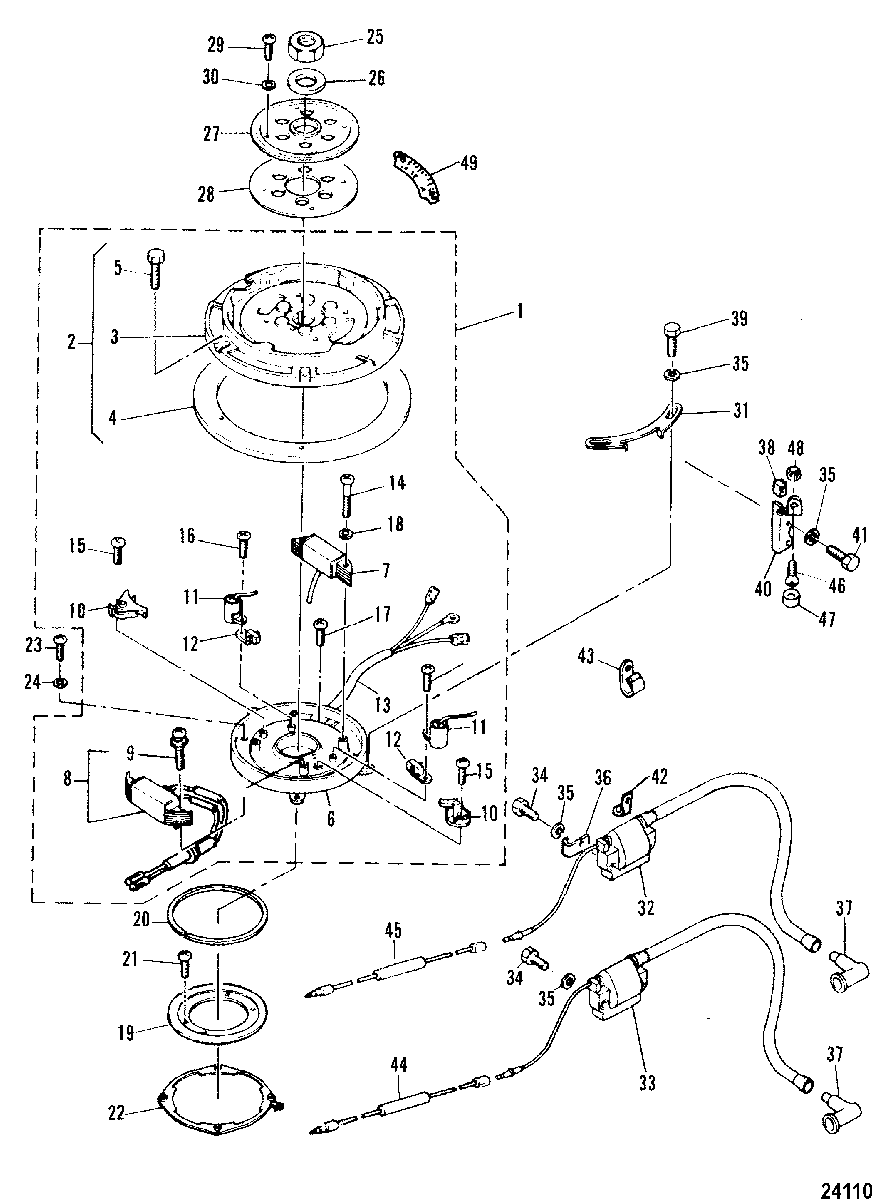

FLYWHEEL MAGNETO для Mariner - 40B (THRU PROP. EXHAUST) E-676-B100461 THRU B102785
-
№АртикулНазвание
-
1253-6999M FLYWHEEL MAGNETO ASSEMBLY (MANUAL START)FLYWHEEL MAGNETO ASSEMBLY (MANUAL START)
-
2253-7100M FLYWHEEL (W/O RING GEAR)FLYWHEEL (W/O RING GEAR)
-
343-83556M GEAR, RINGGEAR, RING
-
483557M WEIGHT RINGWEIGHT RING
-
510-83558M BOLTBOLT
-
683559M BASE, MAGNETOBASE, MAGNETO
-
783560M COIL, IGNITIONCOIL, IGNITION
-
883561M COIL, LIGHTING -80 WATT (OPTIONAL IN USA)COIL, LIGHTING -80 WATT (OPTIONAL IN USA)
-
910-82522M SCREWSCREW
-
1081021M BREAKERBREAKER
-
1183562M CONDENSERCONDENSER
-
1280003M LUBRICATORLUBRICATOR
-
1384-91627M LEAD WIRELEAD WIRE
-
1410-83108M SCREWSCREW
-
1510-80001M SCREWSCREW
-
1610-80001M SCREWSCREW
-
1710-83565M SCREWSCREW
-
1813-82186M WASHER, LOCKWASHER, LOCK
-
1919139M RETAINER, MAGNETO BASERETAINER, MAGNETO BASE
-
2083566M RETAINER, MAGNETO BASERETAINER, MAGNETO BASE
-
2110-11832M SCREWSCREW
-
2283569M PLATE, BASE FRICTIONPLATE, BASE FRICTION
-
2310-14232M SCREWSCREW
-
2413-82186M WASHER, LOCKWASHER, LOCK
-
2511-893789 NUTNUT
-
2612-893762 WASHERWASHER
-
2783571M COVERCOVER
-
2827-83572M GASKETGASKET
-
2910-14232M SCREWSCREW
-
3012-82211M WASHERWASHER
-
3183922M STOP, MAGNETO BASESTOP, MAGNETO BASE
-
3283575M COIL, Ignition (TOP CYLINDER)COIL, Ignition (TOP CYLINDER)
-
3383576M COIL, Ignition (BOTTOM CYLINDER)COIL, Ignition (BOTTOM CYLINDER)
-
3410-83285M BOLTBOLT
-
3513-82212M WASHER, LOCKWASHER, LOCK
-
3654-83577M CLAMPCLAMP
-
3785-63709A1 CAP ASSEMBLY, Spark PlugCAP ASSEMBLY, Spark Plug
-
3785-815119M PROTECTER, NOISE SUPPRESSORPROTECTER, NOISE SUPPRESSOR
-
3883578M CAPCAP
-
3910-84088M BOLTBOLT
-
4083579M STOP, MAGNETO BASESTOP, MAGNETO BASE
-
4110-826957M BOLTBOLT
-
4254-83580M CLAMPCLAMP
-
4354-82042M CLAMPCLAMP
-
4483581M DIODE (BOTTOM IGNITION COIL)DIODE (BOTTOM IGNITION COIL)
-
4583582M DIODE (TOP IGNITION COIL)DIODE (TOP IGNITION COIL)
-
4610-83924M SCREWSCREW
-
4781415M CAPCAP
-
4811-82390M NUTNUT
-
4937-83925M DECAL, TIMING MARKDECAL, TIMING MARK
