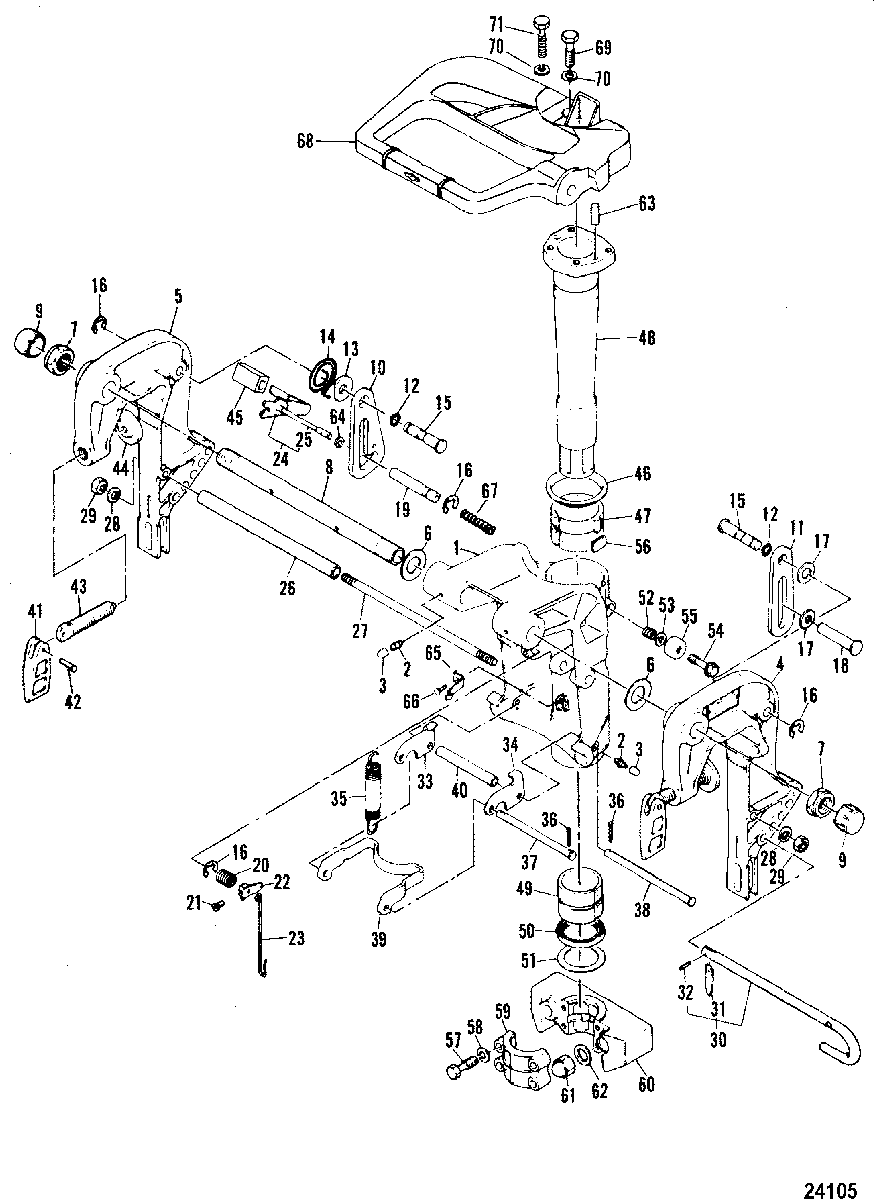

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 40B (THRU PROP. EXHAUST) EL-676-B400420 THRU B405250
-
№АртикулНазвание
-
11485-6996M BRACKET, SWIVELBRACKET, SWIVEL
-
222-82369M FITTING, GREASEFITTING, GREASE
-
381439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
41484-9822M BRACKET, CLAMP (PORT)
SN# S-001161/L-303186/ES-101681/EL-403211 & UpBRACKET, CLAMP (PORT)
SN# S-001161/L-303186/ES-101681/EL-403211 & Up -
41484-6997M BRACKET, CLAMP (PORT)
SN# S-001160/L-303185/ES-101680/EL-403210 & BelowBRACKET, CLAMP (PORT)
SN# S-001160/L-303185/ES-101680/EL-403210 & Below -
51484-9823M BRACKET, CLAMP (STARBOARD)
SN# S-001161/L-303186/ES-101681/EL-403211 & UpBRACKET, CLAMP (STARBOARD)
SN# S-001161/L-303186/ES-101681/EL-403211 & Up -
51484-6998M BRACKET, CLAMP (STARBOARD)
SN# S-001160/L-303185/ES-101680/EL-403210 & BelowBRACKET, CLAMP (STARBOARD)
SN# S-001160/L-303185/ES-101680/EL-403210 & Below -
612-81836M WASHERWASHER
-
711-879172252 NUT, NYLONNUT, NYLON
-
810-41312M STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
9811914M CAPCAP
-
1014278M STOP, TILT (STARBOARD)
SN# S-001161/L-303186/ES-101681/EL-403211 & UpSTOP, TILT (STARBOARD)
SN# S-001161/L-303186/ES-101681/EL-403211 & Up -
1094508M STOP, TILT (STARBOARD)
SN# S-001160/L-303185/ES-101680/EL-403210 & BelowSTOP, TILT (STARBOARD)
SN# S-001160/L-303185/ES-101680/EL-403210 & Below -
1184969M STOP, TILT (PORT)
SN# S-001161/L-303186/ES-101681/EL-403211 & UpSTOP, TILT (PORT)
SN# S-001161/L-303186/ES-101681/EL-403211 & Up -
1194510M STOP, TILT (PORT)
SN# S-001160/L-303185/ES-101680/EL-403210 & BelowSTOP, TILT (PORT)
SN# S-001160/L-303185/ES-101680/EL-403210 & Below -
1213-83457M WAVE WASHERWAVE WASHER
-
1312-83458M WASHERWASHER
-
1424-83459M SPRING, LEVER RETURNSPRING, LEVER RETURN
-
1517-19257M PINPIN
-
1653-83461M RING, SnapRING, Snap
-
1712-83462M WASHERWASHER
-
1817-95450M PINPIN
-
1983464M SHAFTSHAFT
-
2024-83465M SPRINGSPRING
-
2110-84313M BOLTBOLT
-
2283467M LEVER, TILTLEVER, TILT
-
2383468M ROD, LOCKROD, LOCK
-
2414260M LEVER ASSEMBLY, TiltLEVER ASSEMBLY, Tilt
-
2517-83470M PINPIN
-
2619258M SPACERSPACER
-
2716-83472M STUDSTUD
-
2813-82215M LOCKWASHERLOCKWASHER
-
2911-82382M NUTNUT
-
3017-814972T PIN ASSEMBLY, TiltPIN ASSEMBLY, Tilt
-
3184044M STOPPER, TILT LOCKSTOPPER, TILT LOCK
-
3217-82145M PIN, ROLLPIN, ROLL
-
3383905M BRACKET, TILT LOCKBRACKET, TILT LOCK
-
3483906M BRACKET, TILT LOCKBRACKET, TILT LOCK
-
3524-83476M SPRINGSPRING
-
3618-82128M PIN, COTTERPIN, COTTER
-
3717-83477M PINPIN
-
3817-83478M PINPIN
-
3983479M TILT LOCKTILT LOCK
-
4023-83480M SPACERSPACER
-
4111868M HANDLE, TRANSOM CLAMPHANDLE, TRANSOM CLAMP
-
4217-81889M PINPIN
-
4310-83481M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
4412-80638M PAD, TRANSOM CLAMPPAD, TRANSOM CLAMP
-
4581395M COVERCOVER
-
4612-83482M WASHERWASHER
-
4723-83483M BUSHINGBUSHING
-
4883907M SHAFTSHAFT
-
4923-83485M BUSHINGBUSHING
-
5026-83486M SEAL, OilSEAL, Oil
-
5112-83487M WASHERWASHER
-
5224-83488M SPRINGSPRING
-
5312-82217M WASHERWASHER
-
5410-43106M BOLTBOLT
-
5526-83490M SEALSEAL
-
5680633M PLATE, FRICTIONPLATE, FRICTION
-
5710-95416M BOLTBOLT
-
5813-82215M LOCKWASHERLOCKWASHER
-
5983491M HOUSING, LOWER MOUNT RUBBERHOUSING, LOWER MOUNT RUBBER
-
6083492T HOUSING, LOWER MOUNT RUBBERHOUSING, LOWER MOUNT RUBBER
-
6111-82397M NUT, CROWNNUT, CROWN
-
6212-84429M WASHERWASHER
-
6317-82368M PIN, DOWELPIN, DOWEL
-
6412-83493M WASHERWASHER
-
6524-83494M SPRINGSPRING
-
6617-83495M RIVETRIVET
-
6724-83909M SPRING, COMPRESSIONSPRING, COMPRESSION
-
688M0057160 BRACKET, STEERINGBRACKET, STEERING
-
6910-95416M BOLTBOLT
-
7013-82215M LOCKWASHERLOCKWASHER
-
7110-82442M BOLTBOLT
