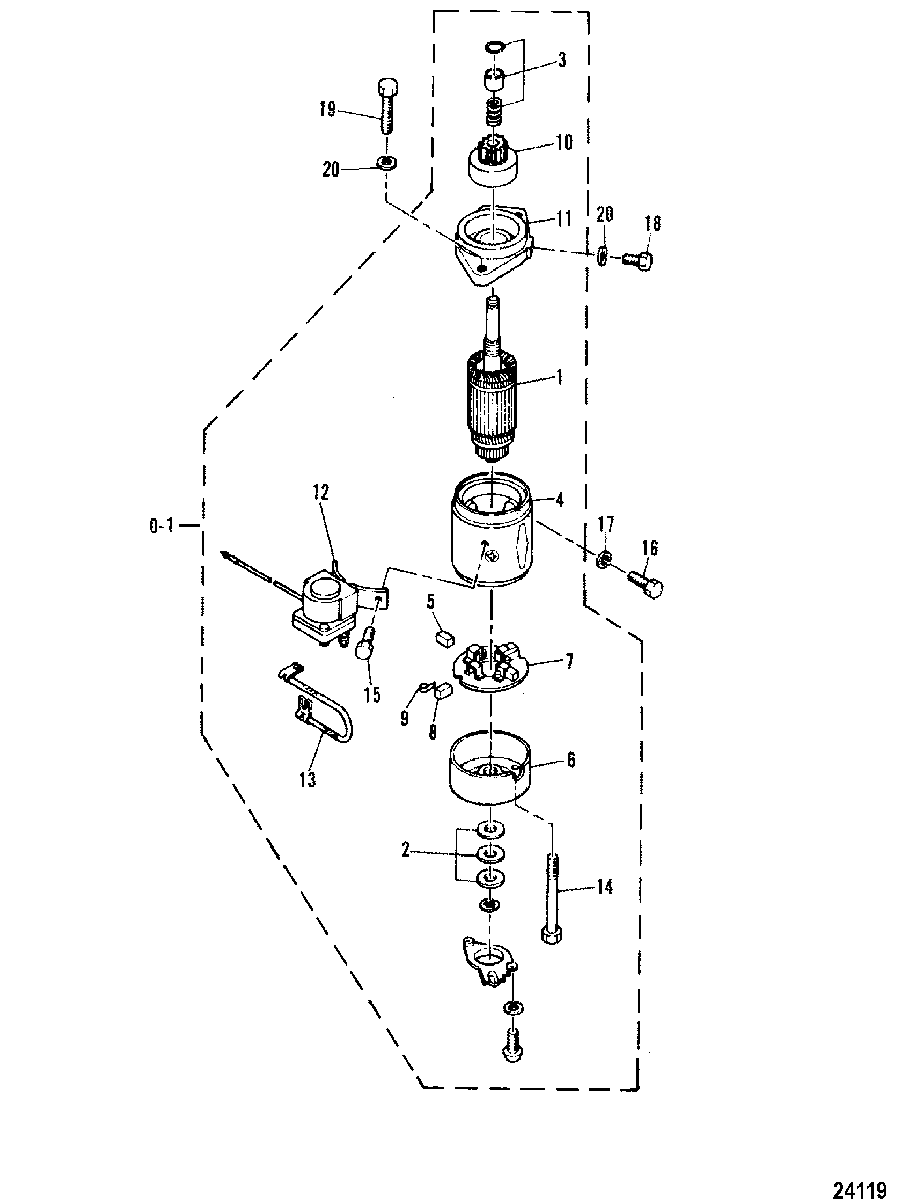

ELECTRIC STARTER MOTOR для Mariner - 40B (THRU PROP. EXHAUST) ML-676-B300101 THRU B302425
-
№АртикулНазвание
-
0-150-97072T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
183651M ARMATUREARMATURE
-
212-83652M WASHER KITWASHER KIT
-
392671M RINGRING
-
481493M STATORSTATOR
-
581494M BRUSH (+)BRUSH (+)
-
681499M REAR COVERREAR COVER
-
781507M HOLDER, BrushHOLDER, Brush
-
881495M BRUSH (-)BRUSH (-)
-
924-81496M SPRING, BRUSHSPRING, BRUSH
-
1081504T GEARGEAR
-
1183654M BRACKET, FrontBRACKET, Front
-
1289-81513M SWITCHSWITCH
-
1381497M WIRE, LEADWIRE, LEAD
-
1410-81500M BOLTBOLT
-
1510-84088M BOLTBOLT
-
1610-82436M BOLTBOLT
-
1713-82215M LOCKWASHERLOCKWASHER
-
1810-84342M BOLTBOLT
-
1910-82441M BOLTBOLT
-
2013-82215M WASHER, LOCKWASHER, LOCK
