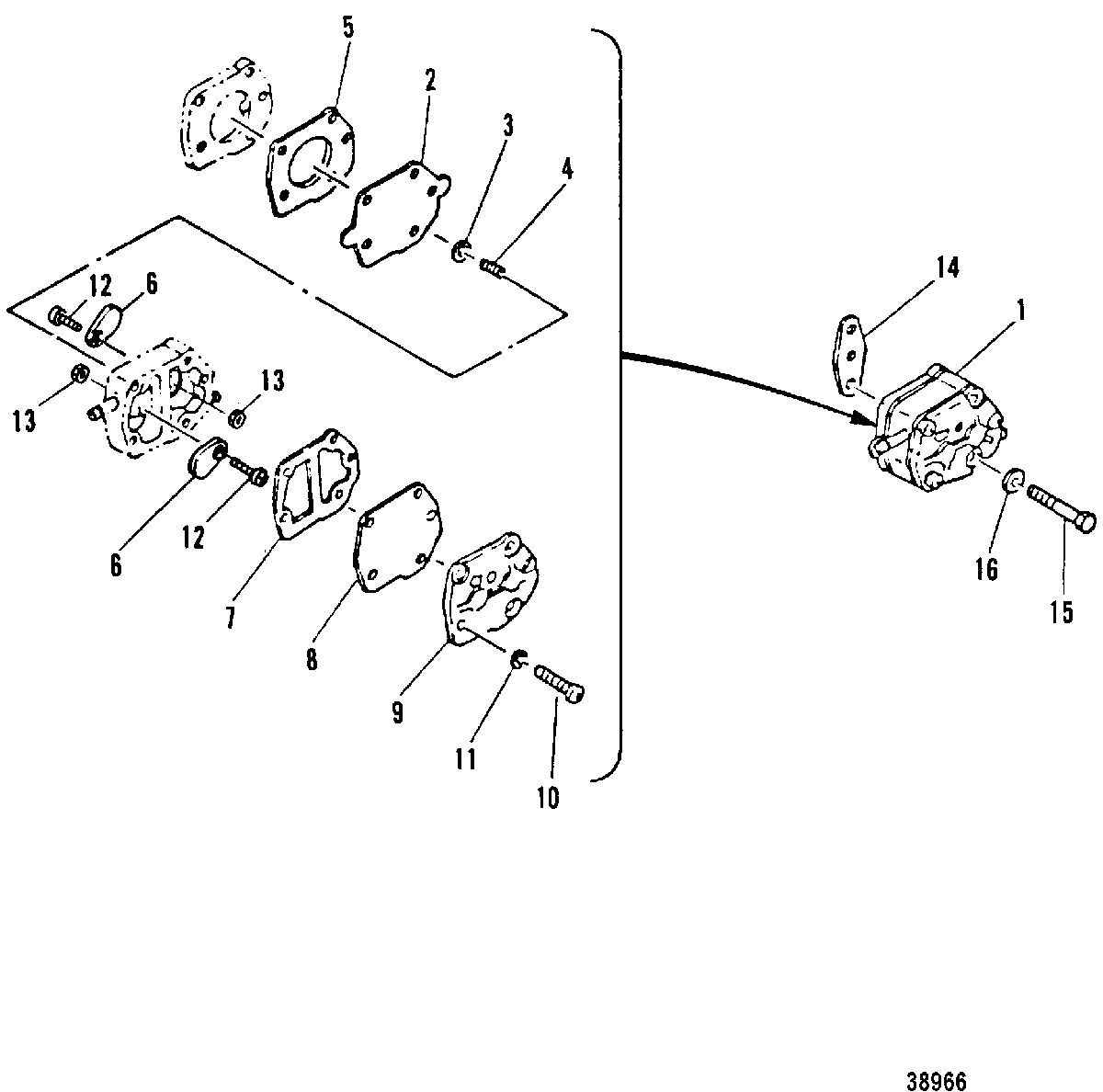

FUEL PUMP для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-105014 THRU 6E9-150000 (E)
-
№АртикулНазвание
-
143113T PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
280606M DIAPHRAGMDIAPHRAGM
-
380611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
424-80610M SPRINGSPRING
-
527-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
621-41888M CHECK VALVECHECK VALVE
-
727-80614 GASKET, BOSY TO COVERGASKET, BOSY TO COVER
-
884141M DIAPHRAGMDIAPHRAGM
-
980607M COVERCOVER
-
1010-82522M SCREWSCREW
-
1113-82186M WASHERWASHER
-
1210-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
1311-82537M NUTNUT
-
1427-80757 GASKET, FUEL PUMP TO CRANKCASEGASKET, FUEL PUMP TO CRANKCASE
-
1510-827043M BOLTBOLT
-
1612-82214M WASHERWASHER
-
-27-97666M GASKET SETGASKET SET
