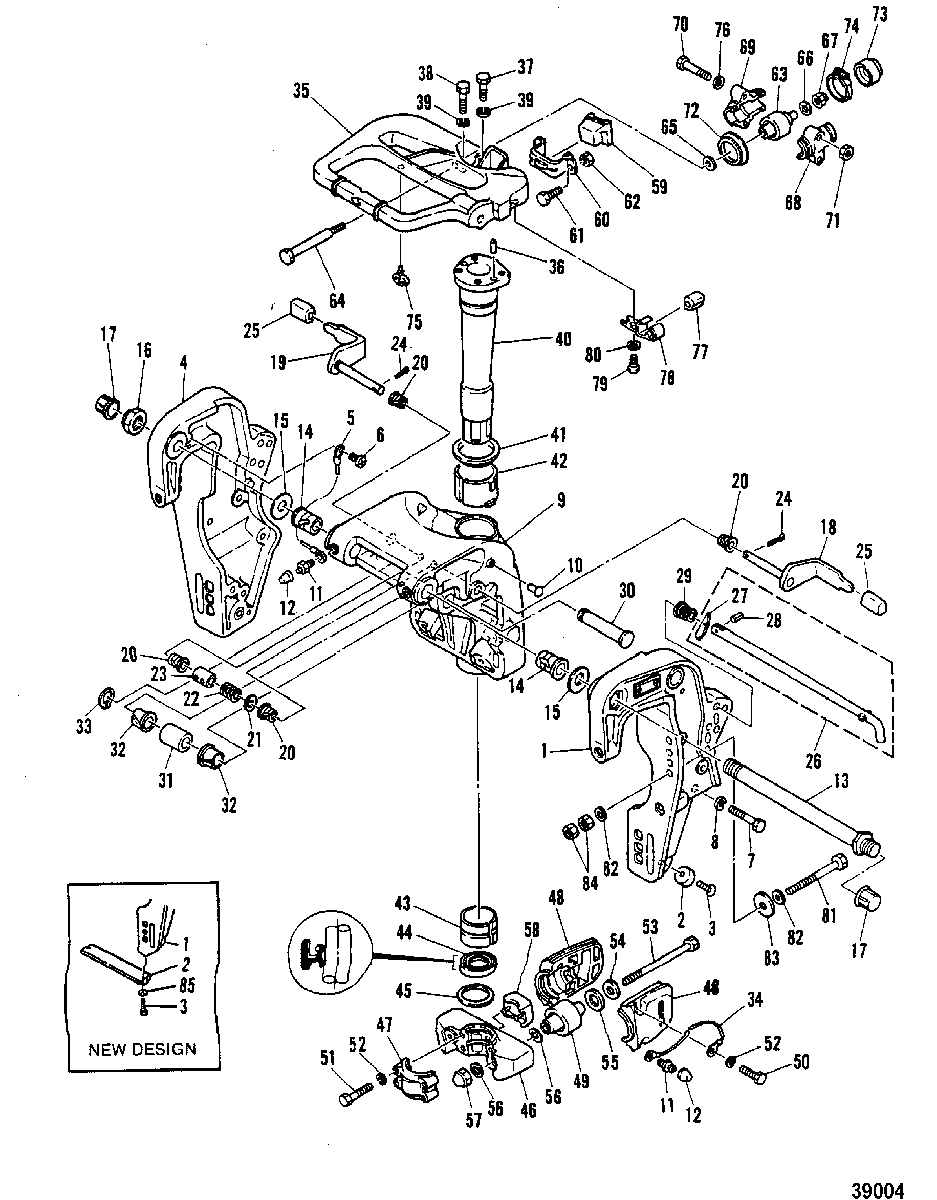

CLAMP AND SWIVEL BRACKET(ELECTRIC TILT) для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-309344 THRU 350000 (ML)
-
№АртикулНазвание
-
11484-9827M BRACKET, CLAMP (PORT)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpBRACKET, CLAMP (PORT)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
11484-9827M BRACKET, CLAMP (PORT)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowBRACKET, CLAMP (PORT)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
28M0073429 ANODE
SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpANODE
SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
284422M ANODE
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowANODE
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
310-83285M BOLT
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpBOLT
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
310-92679M SCREW
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowSCREW
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
41484-9828M BRACKET, CLAMP (STARBOARD)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpBRACKET, CLAMP (STARBOARD)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
41484-9828M BRACKET, CLAMP (STARBOARD)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowBRACKET, CLAMP (STARBOARD)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
584-16716M WIRE, LEADWIRE, LEAD
-
610-11832M SCREWSCREW
-
710-17069M BOLTBOLT
-
813-82218M LOCKWASHERLOCKWASHER
-
91485-9679M BRACKET, SWIVELBRACKET, SWIVEL
-
1017-81909M RIVETRIVET
-
1122-82369M FITTING, GREASEFITTING, GREASE
-
1281439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
1310-19236M BOLT
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpBOLT
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
1310-19236M BOLT
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowBOLT
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
1423-41313M BUSHINGBUSHING
-
1512-17071M WASHERWASHER
-
1611-879172252 NUTNUT
-
17811914M CAP, CLAMP BRACKETCAP, CLAMP BRACKET
-
1819237M LEVER, TILT STOP (PORT)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpLEVER, TILT STOP (PORT)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
1819237M LEVER, TILT STOP (PORT)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowLEVER, TILT STOP (PORT)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
1919238M LEVER, TILT STOP (STARBOARD)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpLEVER, TILT STOP (STARBOARD)
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
1919238M LEVER, TILT STOP (STARBOARD)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowLEVER, TILT STOP (STARBOARD)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
2023-17074M BUSHINGBUSHING
-
2112-82219M WASHERWASHER
-
2224-17075M SPRINGSPRING
-
2323-17076M COLLARCOLLAR
-
2418-82132M COTTER PINCOTTER PIN
-
2581395M COVERCOVER
-
2617-17077M TILT ROD ASSEMBLYTILT ROD ASSEMBLY
-
2717078M STOPPER, TILT LOCKSTOPPER, TILT LOCK
-
2817-82146M PIN, ROLLPIN, ROLL
-
2924-17079M SPRINGSPRING
-
3017-19239M PIN, UPPER SHOCK MOUNT
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpPIN, UPPER SHOCK MOUNT
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
3017-19239M PIN, UPPER SHOCK MOUNT
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowPIN, UPPER SHOCK MOUNT
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
3123-17081M COLLARCOLLAR
-
3223-17082M BUSHINGBUSHING
-
3353-8M0075279 RING, SnapRING, Snap
-
3484-17084M WIRE, LEADWIRE, LEAD
-
3517085M BRACKET, STEERINGBRACKET, STEERING
-
3617-82368M PIN, DOWELPIN, DOWEL
-
3710-95416M BOLTBOLT
-
3810-82442M BOLTBOLT
-
3913-82215M LOCKWASHERLOCKWASHER
-
4083907M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
4112-83482M WASHERWASHER
-
4223-83483M BUSHINGBUSHING
-
4323-83485M BUSHINGBUSHING
-
4426-83486M SEAL, OilSEAL, Oil
-
4512-83487M WASHERWASHER
-
4683492T HOUSING, LOWER MOUNTHOUSING, LOWER MOUNT
-
4783491M HOUSING, LOWER MOUNTHOUSING, LOWER MOUNT
-
4883512M COVER, LOWR MOUNTCOVER, LOWR MOUNT
-
498M0050006 MOUNT DAMPERMOUNT DAMPER
-
5010-95416M BOLTBOLT
-
5110-85277614 BOLTBOLT
-
5213-82215M LOCKWASHERLOCKWASHER
-
5310-83510M BOLTBOLT
-
5412-83915M WASHERWASHER
-
5512-81860M WASHERWASHER
-
5612-84429M WASHERWASHER
-
5711-82397M NUT, CROWNNUT, CROWN
-
5883511M DAMPER, LOWER MOUNTDAMPER, LOWER MOUNT
-
5983496M DAMPER, UPPER MOUNTDAMPER, UPPER MOUNT
-
6083497M BRACKETBRACKET
-
6110-82405M BOLTBOLT
-
6211-82389M NUTNUT
-
638M0121495 MOUNT DAMPER, UPPERMOUNT DAMPER, UPPER
-
6410-83501M BOLTBOLT
-
6512-83911M WASHERWASHER
-
6612-83504M WASHERWASHER
-
6711-84295M NUT, NYLONNUT, NYLON
-
6883498M COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
6983499M COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
7010-83506M BOLTBOLT
-
7111-82382M NUTNUT
-
7225-83505M SEAL, RUBBERSEAL, RUBBER
-
7383912M CAPCAP
-
7454-83507M CLAMP, HOSECLAMP, HOSE
-
7592619M HOLDER, SHEAR PINHOLDER, SHEAR PIN
-
7612-82217M WASHERWASHER
-
7725-17086M GROMMETGROMMET
-
7854-17087M CLAMPCLAMP
-
7910-17088M SCREWSCREW
-
8012-82214M WASHERWASHER
-
8110-17089M BOLTBOLT
-
8212-83524M WASHERWASHER
-
8312-81812M WASHERWASHER
-
8411-17090M NUTNUT
-
8513-82212M LOCKWASHER
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpLOCKWASHER
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
Все узлы модели:
- AUTO-BLEND
- C.D.I. MAGNETO IGNITION
- CARBURETOR
- • CLAMP AND SWIVEL BRACKET(ELECTRIC TILT)
- CLAMP AND SWIVEL BRACKET(MANUAL AND ELECTRIC)
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRIC START COMPONENTS
- ELECTRIC STARTER MOTOR
- ELECTRIC TILT ASSEMBLY AND BRACKET
- FUEL LINES AND FILTER
- FUEL PUMP
- Fuel Tank and Fuel Line, Original Equipment
- FUEL TANK, Not Original Equipment
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- PROP CHART
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STEERING HANDLE
- THROTTLE CONTROL
