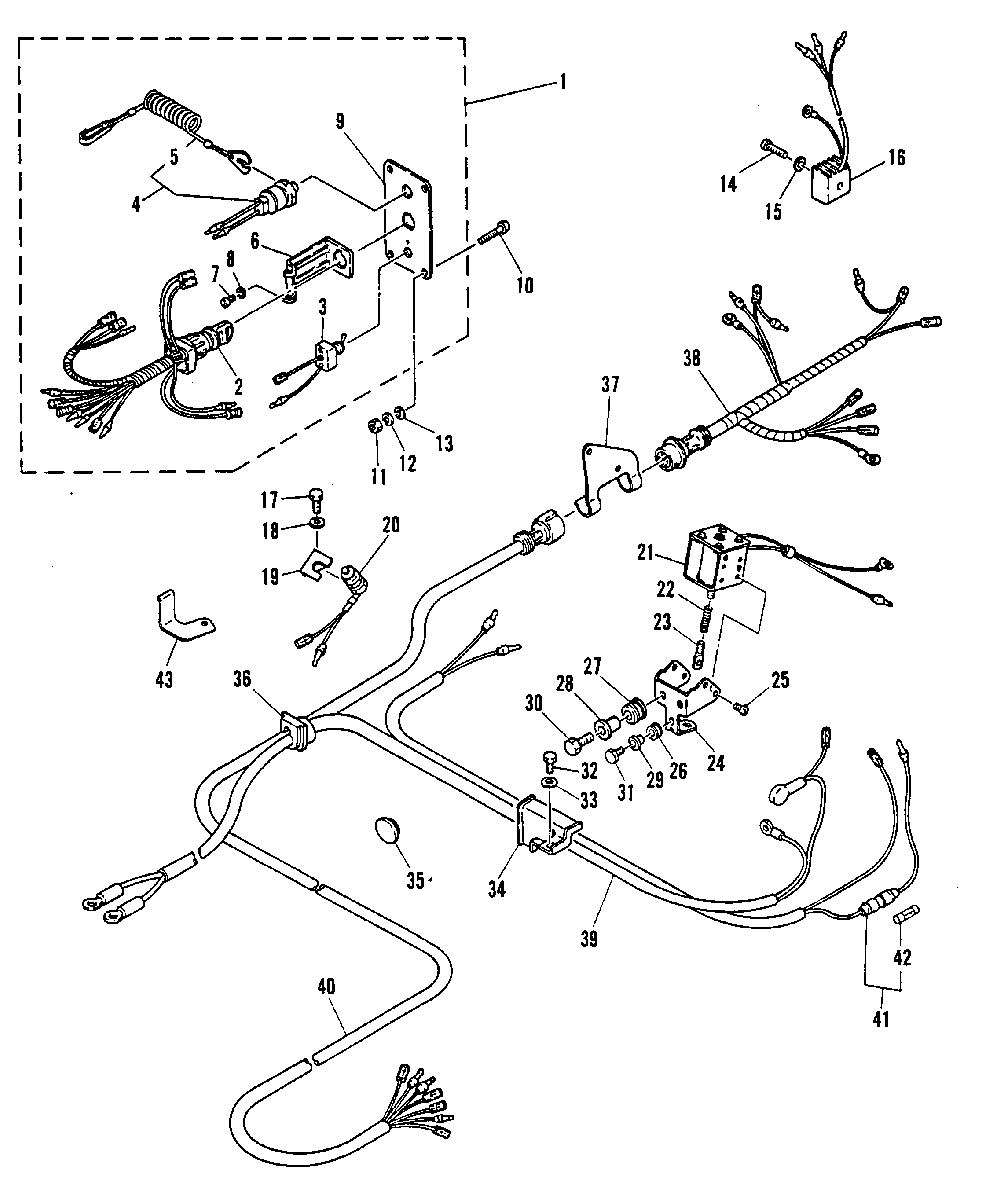

ELECTRIC START COMPONENTS для Mariner - 40C (TWIN CARB) 6E9-000106 THRU 6E9-007665 (M)
-
№АртикулНазвание
-
118975A1 SWITCH PANEL ASS'YSWITCH PANEL ASS'Y
-
287-8M0078321 MAIN SWITCH ( EL-48728 EUL-620176) AND ABOVE
SERIAL 00006406-09999999MAIN SWITCH ( EL-48728 EUL-620176) AND ABOVE
SERIAL 00006406-09999999 -
287-8M0078321 MAIN SWITCH
SERIAL 00004991-00006405MAIN SWITCH
SERIAL 00004991-00006405 -
287-8M0078321 MAIN SWITCH
SERIAL 00000000-00004990MAIN SWITCH
SERIAL 00000000-00004990 -
387-84944M SWITCH, CHOKESWITCH, CHOKE
-
487-97682M KILL SWITCH ASS'YKILL SWITCH ASS'Y
-
597756M STOPPERSTOPPER
-
681537M STAY, CORD CLAMPSTAY, CORD CLAMP
-
710-82500M SCREWSCREW
-
813-82206M WASHERWASHER
-
942435M SWITCH PANELSWITCH PANEL
-
1010-84946M SCREW
SERIAL 00004991-09999999SCREW
SERIAL 00004991-09999999 -
1010-80164M SCREW
SERIAL 00000000-00004990SCREW
SERIAL 00000000-00004990 -
1111-82377M NUTNUT
-
1213-82206M WASHER, LOCK
SERIAL 00004991-09999999WASHER, LOCK
SERIAL 00004991-09999999 -
1213-82186M WASHER, LOCK
SERIAL 00000000-00004990WASHER, LOCK
SERIAL 00000000-00004990 -
1312-82847M WASHERWASHER
-
1410-83108M SCREW
SERIAL 00004991-09999999SCREW
SERIAL 00004991-09999999 -
1410-83108M SCREW
SERIAL 00000000-00004990SCREW
SERIAL 00000000-00004990 -
1512-82211M WASHERWASHER
-
168M0091976 RECTIFIERRECTIFIER
-
1710-826957M BOLTBOLT
-
1813-82212M WASHER, LOCKWASHER, LOCK
-
1997683M BRACKETBRACKET
-
2087-97684M NEUTRAL START SWITCHNEUTRAL START SWITCH
-
2197685T SOLENOID COIL ASS'YSOLENOID COIL ASS'Y
-
2284701M WIRE, PULLWIRE, PULL
-
2384702M HOOK, PULL WIREHOOK, PULL WIRE
-
2497686M BRACKET, SOLENOIDBRACKET, SOLENOID
-
2510-17661M SCREWSCREW
-
2625-97687M GROMMETGROMMET
-
2725-881304 GROMMETGROMMET
-
2823-804344003 COLLARCOLLAR
-
2923-97688M COLLARCOLLAR
-
3010-82405M BOLTBOLT
-
3110-91686M BOLTBOLT
-
3210-91772M BOLTBOLT
-
3312-82214M WASHERWASHER
-
3497066M CLAMPCLAMP
-
3582066M GROMMETGROMMET
-
3625-94476M GROMMETGROMMET
-
3795411M BRACKET, HARNESS
SERIAL 00004991-09999999BRACKET, HARNESS
SERIAL 00004991-09999999 -
3795411M BRACKET, HARNESS
SERIAL 00000000-00004990BRACKET, HARNESS
SERIAL 00000000-00004990 -
3884-95412M HARNESS ASS"Y
SERIAL 00004991-09999999HARNESS ASS"Y
SERIAL 00004991-09999999 -
3884-95412M HARNESS ASS'Y
SERIAL 00000000-00004990HARNESS ASS'Y
SERIAL 00000000-00004990 -
3984-97691M WIRE HARNESS ASS'YWIRE HARNESS ASS'Y
-
4084-84711M WIRE HARNESS EXTENSION 5MWIRE HARNESS EXTENSION 5M
-
4184-97692M WIRE HARNESSWIRE HARNESS
-
4288-81522M FUSE (12V-20 A)FUSE (12V-20 A)
-
4342436M BRACKETBRACKET
