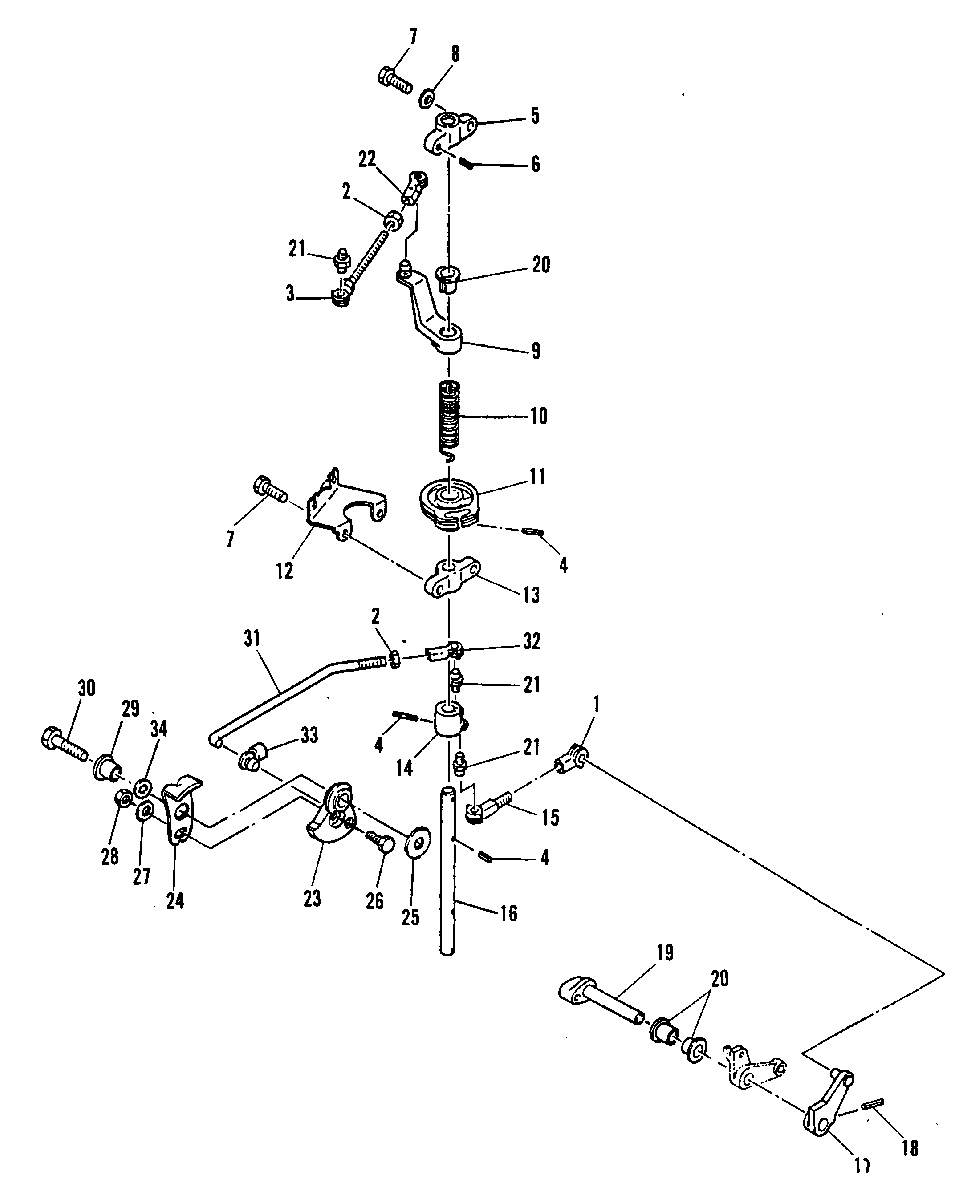

THROTTLE CONTROL для Mariner - 40C (TWIN CARB) 6E9-100101 THRU 6E9-105013 (E)
-
№АртикулНазвание
-
116715M RETAINER, LINK RODRETAINER, LINK ROD
-
211-82388M NUTNUT
-
384101M ROD, MAGNETO CONTROLROD, MAGNETO CONTROL
-
417-82149M PIN, ROLLPIN, ROLL
-
583547M BRACKETBRACKET
-
617-82154M PIN, ROLLPIN, ROLL
-
710-84058M BOLTBOLT
-
812-82214M WASHER, LOCKWASHER, LOCK
-
983548M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
1024-83549M SPRINGSPRING
-
1183919M PULLEYPULLEY
-
1283551M BRACKETBRACKET
-
1383537M BRACKETBRACKET
-
1497739M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
1583921M RODROD
-
1683555M SHAFT, LINK CONNECTINGSHAFT, LINK CONNECTING
-
1783526M LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1817-82158M PIN, ROLLPIN, ROLL
-
1983527T SHAFT, THROTTLE CONTROLSHAFT, THROTTLE CONTROL
-
2023-81946M BUSHINGBUSHING
-
2184305M BALL JOINTBALL JOINT
-
2284100M RETAINER, LINK RODRETAINER, LINK ROD
-
2397740M CAM, ACCELCAM, ACCEL
-
2497758M THROTTLE LIMITER (M AND ML MODELS ONLY)THROTTLE LIMITER (M AND ML MODELS ONLY)
-
2512-81796M WASHER (M AND ML MODELS ONLY)WASHER (M AND ML MODELS ONLY)
-
2610-82417M BOLT (M AND ML MODELS ONLY)BOLT (M AND ML MODELS ONLY)
-
2712-82211M WASHER (M AND ML MODELS ONLY)WASHER (M AND ML MODELS ONLY)
-
2811-82388M NUT (M AND ML MODELS ONLY)NUT (M AND ML MODELS ONLY)
-
2923-94503M COLLARCOLLAR
-
3010-83285M BOLTBOLT
-
3197741M LINK, ACCELLINK, ACCEL
-
3216715M RETAINERRETAINER
-
3397742M RETAINERRETAINER
-
3413-81868M WASHER
SERIAL 00004991-09999999WASHER
SERIAL 00004991-09999999
Все узлы модели:
- C.D.I. MAGNETO IGNITION
- CARBURETOR
- CL AMP AND SWIVEL BRACKET/REVERSE LOCK
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRIC START COMPONENTS
- ELECTRIC STARTER MOTOR
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT)
- FUEL TANK ASSEMBLY (NOT ORIGINAL EQUIPMENT TANK) (SEE NOTE)
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STEERING HANDLE
- • THROTTLE CONTROL
