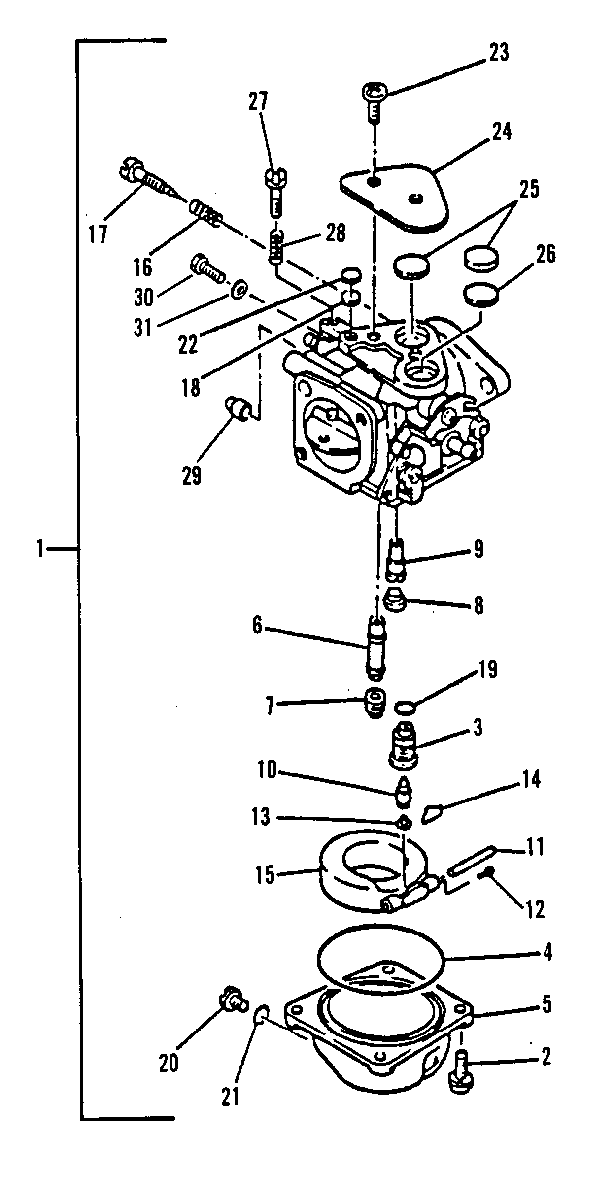

CARBURETOR для Mariner - 40C (TWIN CARB) 6E9-400231 THRU 6E9-423162 (EL)
-
№АртикулНазвание
-
11383-8567M CARBURETOR ASS'Y (UPPER)CARBURETOR ASS'Y (UPPER)
-
11383-8568M CARBURETOR ASS'Y (LOWER)CARBURETOR ASS'Y (LOWER)
-
210-11796M SCREW, WITH WASHERSCREW, WITH WASHER
-
394726M VALVE SEATVALVE SEAT
-
425-83362M O-RINGO-RING
-
594495M BODY, FLOAT CHAMBERBODY, FLOAT CHAMBER
-
697727M NOZZLE, MAINNOZZLE, MAIN
-
742437M JET, MAIN (# 170)JET, MAIN (# 170)
-
822-8M0080455 CAPCAP
-
942438M JET, SLOW (# 75)JET, SLOW (# 75)
-
1083364M VALVE, FLOATVALVE, FLOAT
-
1117-97730M PIN, ARMPIN, ARM
-
1210-82500M SCREWSCREW
-
1317-92639M PIN, VALVEPIN, VALVE
-
1454-8M0120624 CLIPCLIP
-
15891730A01 FLOAT COMPFLOAT COMP
-
1624-94499M SPRINGSPRING
-
1710-83889M SCREW, ADJUSTSCREW, ADJUST
-
1897732M PLATEPLATE
-
1925-97070M O-RINGO-RING
-
2010-81293M SCREW, DRAINSCREW, DRAIN
-
2125-94498M O-RINGO-RING
-
2297733M PACKINGPACKING
-
2310-83371M SCREWSCREW
-
2497734M PLATEPLATE
-
2527-97735M GASKETGASKET
-
2697736M PLATEPLATE
-
2710-81277M SCREW, STOP (LOWER)SCREW, STOP (LOWER)
-
2824-82080M SPRING (LOWER)SPRING (LOWER)
-
2983370M COLLAR (LOWER)COLLAR (LOWER)
-
3010-97082M SCREW, W/(W)ASHER (UPPER) - LEFT HAND THREAD
(EL-418727 EUL-620175) AND BELOW SERIAL 00000000-00006405SCREW, W/(W)ASHER (UPPER) - LEFT HAND THREAD
(EL-418727 EUL-620175) AND BELOW SERIAL 00000000-00006405 -
3112-83372M WASHER, UPPER
(EL-418727 EUL-620175) AND BELOW SERIAL 0A000000-0M006405WASHER, UPPER
(EL-418727 EUL-620175) AND BELOW SERIAL 0A000000-0M006405 -
3197667T REPAIR KIT, CARBURETOR 1REPAIR KIT, CARBURETOR 1
