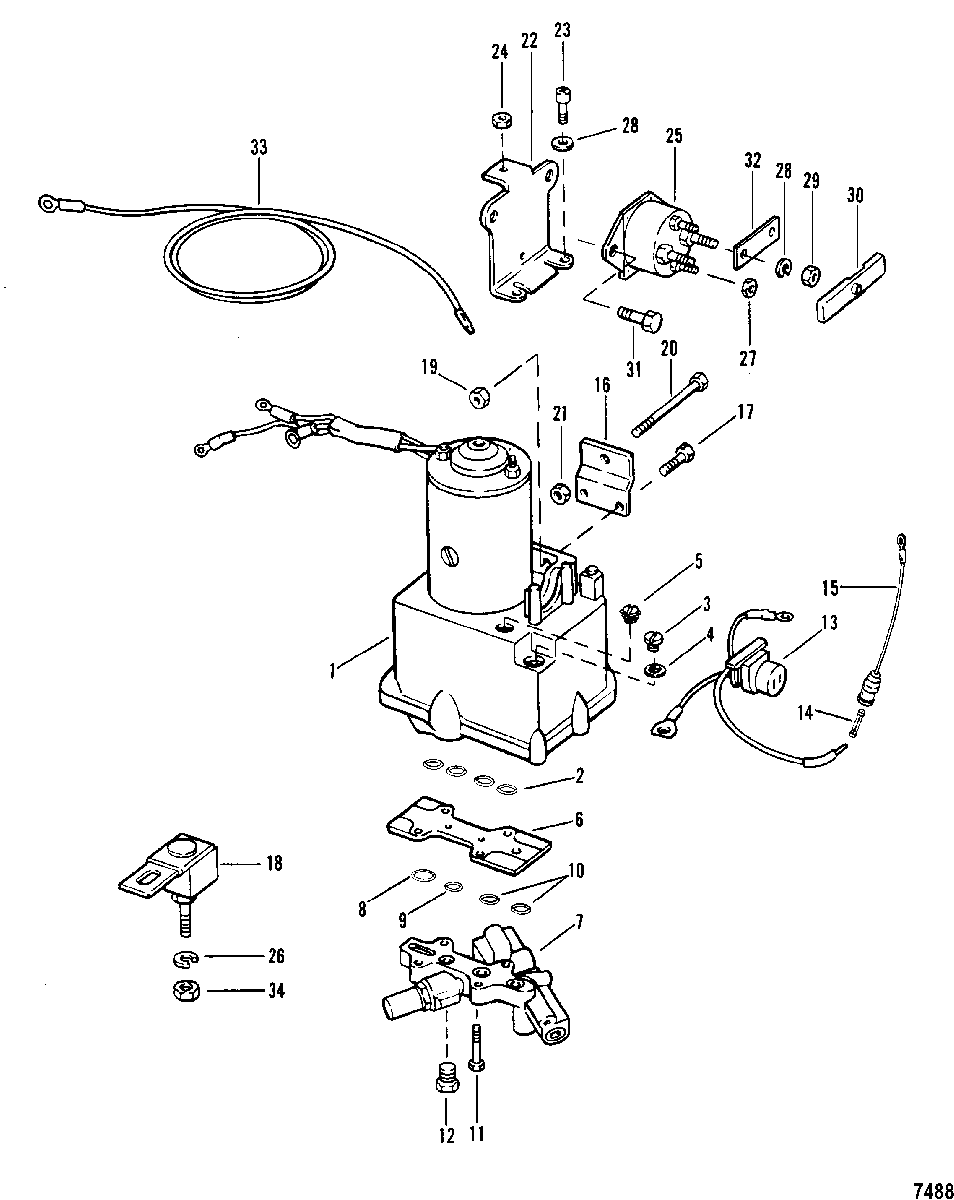

Power Trim Components(Electric Handle) для Mariner - 45 (4 CYL.) 0A719281 & Up
-
№АртикулНазвание
-
192975A32 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
225-48171 O-RING, (.364. x .070), Manifold PlateO-RING, (.364. x .070), Manifold Plate
-
310-79953Q04 SCREW, (.375-16 x .250), Filler - Hydraulic PumpSCREW, (.375-16 x .250), Filler - Hydraulic Pump
-
412-191833 WASHER, Fiber, Sealing Filler ScrewWASHER, Fiber, Sealing Filler Screw
-
510-62269 SCREW, (#10-32 x .437), Vent - Hydraulic Pump Hydraulic PumpSCREW, (#10-32 x .437), Vent - Hydraulic Pump Hydraulic Pump
-
645336 PLATE, ManifoldPLATE, Manifold
-
745197A2 VALVE ASSEMBLY, ControlVALVE ASSEMBLY, Control
-
--25-48171 O-RING, (.364. x .070), Manifold Plate (See Reference. #2)O-RING, (.364. x .070), Manifold Plate (See Reference. #2)
-
825-45254 O-RING, Control Valve
(0.75 Inch O.D.)O-RING, Control Valve
(0.75 Inch O.D.) -
925-48171 O-RING, (.364. x .070), Control Valve
(0.50 Inch O.D.)O-RING, (.364. x .070), Control Valve
(0.50 Inch O.D.) -
1025-45253 O-RING, Control Valve
(0.625 Inch O.D.)O-RING, Control Valve
(0.625 Inch O.D.) -
1110-56500 SCREW, (.250-28 x 1.250), Valve and Manifold Plate to Pump
(1.25 Inch)SCREW, (.250-28 x 1.250), Valve and Manifold Plate to Pump
(1.25 Inch) -
1222-46008 PLUG, Control Valve
(0.50-20 Inch)PLUG, Control Valve
(0.50-20 Inch) -
1384-79147A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1488-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1584-95084A3 CABLE ASSEMBLY, FuseCABLE ASSEMBLY, Fuse
-
1645377T BRACKET, MountingBRACKET, Mounting
-
1710-35386 SCREW, (.312-18 x 1.00), Mounting Bracket to Hydraulic PumpSCREW, (.312-18 x 1.00), Mounting Bracket to Hydraulic Pump
-
1888-79023T90 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
1911-21908 NUT, (.312-18) Cad Plated, Mounting Bracket ScrewNUT, (.312-18) Cad Plated, Mounting Bracket Screw
-
2010-31830 BOLT, (.375-24 x 1.75), Hydaulic Pump to BoatBOLT, (.375-24 x 1.75), Hydaulic Pump to Boat
-
2111-46335 NUT, Hydaulic Pump BookNUT, Hydaulic Pump Book
-
2294279 BRACKET, Mounting - Starter SolendiedBRACKET, Mounting - Starter Solendied
-
2310-48060 SCREW, (.250-14 x .625), Mounting Bracket to Hydraulic PumpSCREW, (.250-14 x .625), Mounting Bracket to Hydraulic Pump
-
2411-826709106 NUT, (#10-32), Mounting Bracket to Hydraulic Pump through BoltNUT, (#10-32), Mounting Bracket to Hydraulic Pump through Bolt
-
2589-96158T SOLENOID, StarterSOLENOID, Starter
-
2612-96457 WASHER, Phenolic (.27 x .81 x .062), Fuse TerminalWASHER, Phenolic (.27 x .81 x .062), Fuse Terminal
-
2711-26419 NUT, (#8-32) Brass, Solenoid TerminalNUT, (#8-32) Brass, Solenoid Terminal
-
2813-26992 LOCKWASHER, (.250) Stainless Steel, Solenoid TerminalLOCKWASHER, (.250) Stainless Steel, Solenoid Terminal
-
2911-94330 NUT, (.250-20) Brass, Solenoid TerminalNUT, (.250-20) Brass, Solenoid Terminal
-
3085-861680 BOOT, Rubber Starter Solenoid TerminalBOOT, Rubber Starter Solenoid Terminal
-
3110-41508 SCREW, (.250-20 x .500) Stainless Steel, Starter Solenoid to Mounting BracketSCREW, (.250-20 x .500) Stainless Steel, Starter Solenoid to Mounting Bracket
-
3294275 LINK, Soleniod to SolenoidLINK, Soleniod to Solenoid
-
3384-79139A13 CABLE ASSEMBLY, Battery
(Positive)CABLE ASSEMBLY, Battery
(Positive) -
3411-21825 NUT, (.250-28), Fuse TerminalNUT, (.250-28), Fuse Terminal
