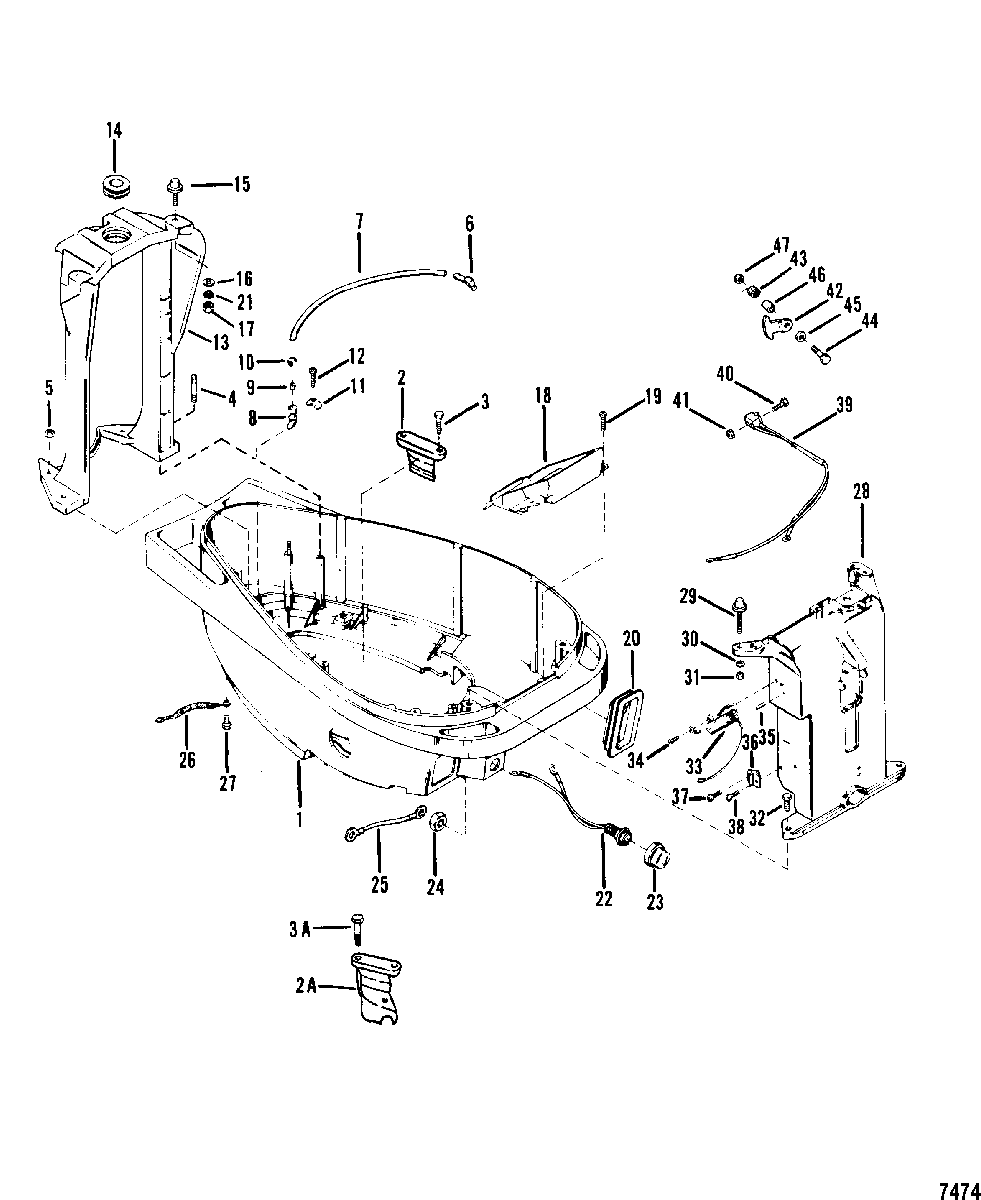

Bottom Cowl and Support Brackets для Mariner - 45 (4 CYL.) 0B110789 & Up

№

Артикул

Название
1

2116-7715A4 BOTTOM COWL ASSEMBLY
(Black)

BOTTOM COWL ASSEMBLY
(Black)

0 ₽
1

2116-7715A5 BOTTOM COWL ASSEMBLY
(Gray)

BOTTOM COWL ASSEMBLY
(Gray)

0 ₽
2

88926F1 COVER, Bottom Cowl
(Electric)

COVER, Bottom Cowl
(Electric)

0 ₽
3

10-28636 SCREW, (.250-20 x .750), Plug to Bottom Cowl
(Electric)

SCREW, (.250-20 x .750), Plug to Bottom Cowl
(Electric)

90 ₽
2A

948801 PLUG, Bottom Cowl
(Manual)

PLUG, Bottom Cowl
(Manual)

0 ₽
3A

10-28636 SCREW, (.250-20 x .750), Plug to Bottom Cowl
(Manual)

SCREW, (.250-20 x .750), Plug to Bottom Cowl
(Manual)

90 ₽
4

16-56766 STUD, (.250-20/.250-28 x 1.380), Bottom Cowl

STUD, (.250-20/.250-28 x 1.380), Bottom Cowl

250 ₽
5

11-20184 NUT, (1/4-28X7/32), Bottom Cowl Stud

NUT, (1/4-28X7/32), Bottom Cowl Stud

120 ₽
6

22-782792 ELBOW, Tell Tale Hose - Cylinder Block

ELBOW, Tell Tale Hose - Cylinder Block

490 ₽
7

32-7568058 HOSE, Tell Tale Hose to Bottom Cowl (14 Inch)

HOSE, Tell Tale Hose to Bottom Cowl (14 Inch)

750 ₽
8

69791 NOZZLE, Tell Tale Hose to Bottom Cowl

NOZZLE, Tell Tale Hose to Bottom Cowl

590 ₽
9

23-90882 SLEEVE, Tell Tale Nozzle

SLEEVE, Tell Tale Nozzle

500 ₽
10

54-816311T TIE STRAP, Tell Nozzle

TIE STRAP, Tell Nozzle

40 ₽
11

66849 CLAMP, Nozzle - Tell Tale

CLAMP, Nozzle - Tell Tale

0 ₽
12

10-48408 SCREW, (#10-16 x .500), Nozzle Clamp to Bottom Cowl

SCREW, (#10-16 x .500), Nozzle Clamp to Bottom Cowl

200 ₽
13

720201 BRACKET, Rear Support

BRACKET, Rear Support

0 ₽
14

25-52723 GROMMET, Rear Support Bracket

GROMMET, Rear Support Bracket

290 ₽
15

60577 MOUNT, Rubber - Rear Support Bracket

MOUNT, Rubber - Rear Support Bracket

0 ₽
16

12-69056 WASHER, (.255 x .625 x .0312), Rubber Mount

WASHER, (.255 x .625 x .0312), Rubber Mount

120 ₽
17

11-29598 NUT, (.250-28) Stainless Steel, Rubber Mount

NUT, (.250-28) Stainless Steel, Rubber Mount

150 ₽
18

72466 DRIP TRAY

DRIP TRAY

0 ₽
19

10-48409 SCREW, (#10-16 x .625) Stainless Steel, Drip Tray to Bottom Cowl

SCREW, (#10-16 x .625) Stainless Steel, Drip Tray to Bottom Cowl

140 ₽
20

37695 BOOT, Control Cable

BOOT, Control Cable

0 ₽
21

13-26992 LOCKWASHER, (.250) Stainless Steel, Rubber Mount

LOCKWASHER, (.250) Stainless Steel, Rubber Mount

70 ₽
22

87-69508A31 SWITCH ASSEMBLY, Stop
(Manual Push Button Switch)

SWITCH ASSEMBLY, Stop
(Manual Push Button Switch)

8 070 ₽
23

87-99525A1 COVER ASSEMBLY, Top Switch
(Manual Push Button Switch)

COVER ASSEMBLY, Top Switch
(Manual Push Button Switch)

1 700 ₽
24

11-69844 NUT, Stop Switch
(Manual Push Button Switch)

NUT, Stop Switch
(Manual Push Button Switch)

0 ₽
25

84-62190A8 WIRE ASSEMBLY, Orange Stop Switch
(Manual Push Button Switch)

WIRE ASSEMBLY, Orange Stop Switch
(Manual Push Button Switch)

0 ₽
26

84-88238T01 CABLE ASSEMBLY (3.375 Inch)

CABLE ASSEMBLY (3.375 Inch)

2 070 ₽
27

10-62568 SCREW, (#10-16 x .375), Ground Strap

SCREW, (#10-16 x .375), Ground Strap

70 ₽
28

42660A1 BRACKET ASSEMBLY, Front Support

BRACKET ASSEMBLY, Front Support

0 ₽
29

31014 MOUNT, Rubber - Front Support Bracket

MOUNT, Rubber - Front Support Bracket

260 ₽
30

13-26992 LOCKWASHER, (.250) Stainless Steel, Rubber Mount

LOCKWASHER, (.250) Stainless Steel, Rubber Mount

70 ₽
31

11-29598 NUT, (.250-28) Stainless Steel, Rubber Mount

NUT, (.250-28) Stainless Steel, Rubber Mount

150 ₽
32

10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, Front Support Bracket to Bottom Cowl

SCREW, (.312-18 x 1.00) Stainless Steel, Front Support Bracket to Bottom Cowl

220 ₽
33

58124A20 SWITCH ASSEMBLY, Mercury
(Manual)

SWITCH ASSEMBLY, Mercury
(Manual)

7 610 ₽
33

87-33386A3 SWITCH ASSEMLBY, Mercury
(Electric)

SWITCH ASSEMLBY, Mercury
(Electric)

0 ₽
34

10-69235 SCREW, (.190-24 x .500), Switch to Front Bracket (0.50 Inch)

SCREW, (.190-24 x .500), Switch to Front Bracket (0.50 Inch)

140 ₽
35

17-36242 PIN, Roll, Mercury Switch

PIN, Roll, Mercury Switch

0 ₽
36

86-45915 TERMINAL BLOCK
(Manual Only)

TERMINAL BLOCK
(Manual Only)

210 ₽
37

10-20411 SCREW, (.190-24 x .62), Terminal Block to Front Bracket
(Manual Only)

SCREW, (.190-24 x .62), Terminal Block to Front Bracket
(Manual Only)

0 ₽
38

10-69079 SCREW, (#10-16 x .440), Harness Leads
(Manual Only)

SCREW, (#10-16 x .440), Harness Leads
(Manual Only)

100 ₽
39

87-74605A4 SWITCH ASSEMBLY, Neutral Start
(Use with Electric Tiller Handle Models)

SWITCH ASSEMBLY, Neutral Start
(Use with Electric Tiller Handle Models)

0 ₽
40

10-64332 SCREW, (#4-40 x .750)
(Use with Electric Tiller Handle Models)

SCREW, (#4-40 x .750)
(Use with Electric Tiller Handle Models)

0 ₽
41

11-24832 NUT, (#4-40), Switch Screw
(Use with Electric Tiller Handle Models)

NUT, (#4-40), Switch Screw
(Use with Electric Tiller Handle Models)

260 ₽
42

97411 ACTUATOR
(Use with Electric Tiller Handle Models)

ACTUATOR
(Use with Electric Tiller Handle Models)

0 ₽
43

24-88099 SPRING, Interlock Actuator
(Use with Electric Tiller Handle Models)

SPRING, Interlock Actuator
(Use with Electric Tiller Handle Models)

0 ₽
44

10-37892 SCREW, (.190-32 x 1.00), Actuator to Front Bracket
(Use with Electric Tiller Handle Models)

SCREW, (.190-32 x 1.00), Actuator to Front Bracket
(Use with Electric Tiller Handle Models)

0 ₽
45

12-22887 WASHER, Actuator Screw
(Use with Electric Tiller Handle Models)

WASHER, Actuator Screw
(Use with Electric Tiller Handle Models)

140 ₽
46

23-88100 SPACER, Actuator Screw
(Use with Electric Tiller Handle Models)

SPACER, Actuator Screw
(Use with Electric Tiller Handle Models)

0 ₽
47

11-859124 NUT, (#10-32) Stainless Steel, Actuator Screw
(Use with Electric Tiller Handle Models)

NUT, (#10-32) Stainless Steel, Actuator Screw
(Use with Electric Tiller Handle Models)

1 490 ₽
