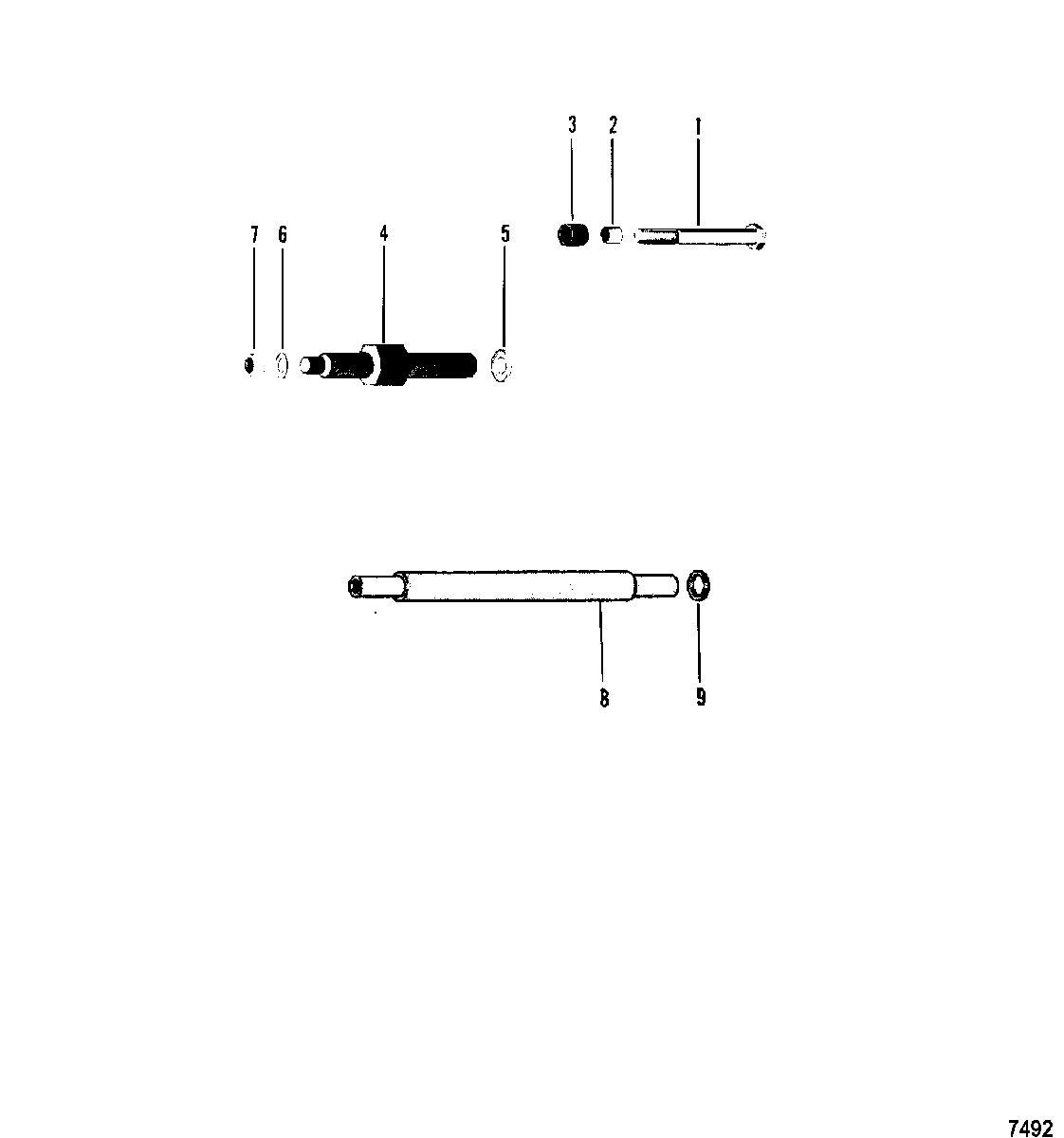

Mounting Hardware(Electric Handle) для Mariner - 45 (4 CYL.) 0B110789 & Up
-
№АртикулНазвание
-
110-62882 SCREW, (.500-20 x 3.250), Bracket to Shock Pin
(3.25 Inch)SCREW, (.500-20 x 3.250), Bracket to Shock Pin
(3.25 Inch) -
223-62885 SPACER, Mounting Bracket Screw
(0.50 Inch I.D.)SPACER, Mounting Bracket Screw
(0.50 Inch I.D.) -
223-89952 SPACER, Mounting Bracket Screw
(0.333 Inch I.D.)SPACER, Mounting Bracket Screw
(0.333 Inch I.D.) -
323-62884 SPACER, Mounting Bracket Screw
(0.75 Inch I.D.)SPACER, Mounting Bracket Screw
(0.75 Inch I.D.) -
417-62887 PIN, Trim Cylinders to Swivel BracketPIN, Trim Cylinders to Swivel Bracket
-
512-840400 WASHER, (1.50 x .766 x .125), Trim Cylinder Pin
(0.75 Inch I.D.)WASHER, (1.50 x .766 x .125), Trim Cylinder Pin
(0.75 Inch I.D.) -
612-54012 WASHER, (.530 x .870 x .105) Stainless Steel, Trim Cylinder Pin
(0.50 Inch I.D.)WASHER, (.530 x .870 x .105) Stainless Steel, Trim Cylinder Pin
(0.50 Inch I.D.) -
711-826709117 NUT, (.500-20), Trim Cylinder PinNUT, (.500-20), Trim Cylinder Pin
-
855-28416 PIN, Upper Shock MountingPIN, Upper Shock Mounting
-
912-34937 WASHER, (.766 x 1.312 x .125), Shock PinWASHER, (.766 x 1.312 x .125), Shock Pin
