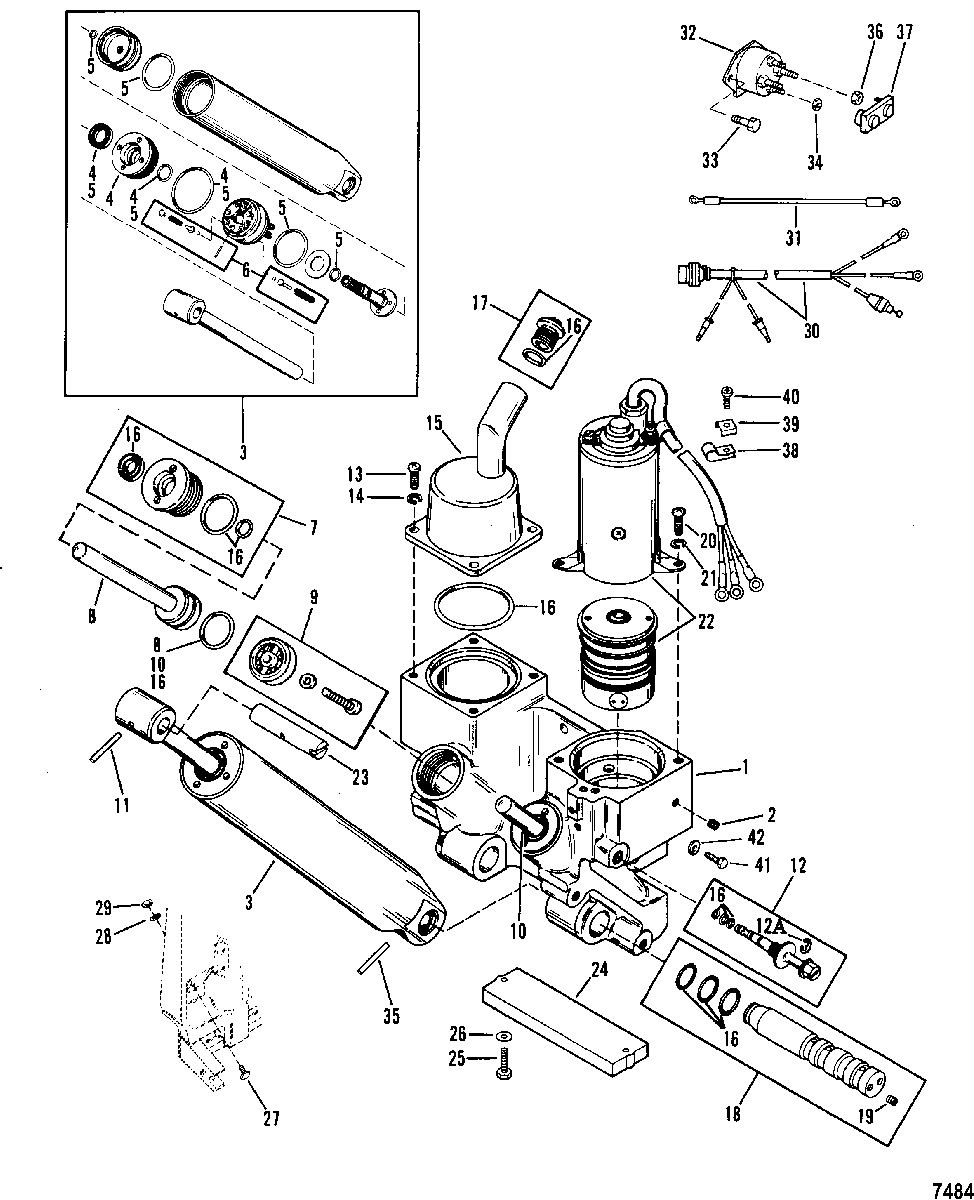

Power Trim Components для Mariner - 45 (4 CYL.) 0B110789 & Up
-
№АртикулНазвание
-
199659A21 MANIFOLD ASSEMBLY
(Black)MANIFOLD ASSEMBLY
(Black) -
199659A22 MANIFOLD ASSEMBLY
(Gray)MANIFOLD ASSEMBLY
(Gray) -
222-56800 PIPE PLUG, ManifoldPIPE PLUG, Manifold
-
341493A9 TRIM CYLINDER ASSEMBLY
(Black)TRIM CYLINDER ASSEMBLY
(Black) -
341493A6 TRIM CYLINDER ASSEMBLY
(Gray)TRIM CYLINDER ASSEMBLY
(Gray) -
441492A1 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
525-41478A1 REPAIR KITREPAIR KIT
-
641482A3 CHECK VALVE KITCHECK VALVE KIT
-
71100-8M0021648 GUIDE ASSEMBLY, Trim RodGUIDE ASSEMBLY, Trim Rod
-
843397A7 PISTON ASSEMBLY, PortPISTON ASSEMBLY, Port
-
935-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
10878414T01 PISTON/ROD ASSEMBLY, Power Trim, StarboardPISTON/ROD ASSEMBLY, Power Trim, Starboard
-
1117-821539 PIN, Groove, Trim Cylinder - UpperPIN, Groove, Trim Cylinder - Upper
-
12893929A01 VALVE ASSEMBLYVALVE ASSEMBLY
-
12A53-815949001 E RINGE RING
-
1310-4000327 SCREW, (M6 x 14), CoverSCREW, (M6 x 14), Cover
-
1412-4002315 WASHER, Cover ScrewWASHER, Cover Screw
-
1599642 COVER, ManifoldCOVER, Manifold
-
1625-48462A4 O-RING KITO-RING KIT
-
1719-99609A1 PLUG ASSEMBLYPLUG ASSEMBLY
-
1899641A02 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
1922-56800 PIPE PLUG, ShaftPIPE PLUG, Shaft
-
2010-4008820 SCREW, (M6 x 20), Pump and MotorSCREW, (M6 x 20), Pump and Motor
-
2113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
22826729A10 PUMP AND MOTORPUMP AND MOTOR
-
2399625002 SHAFT, UpperSHAFT, Upper
-
2497-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
2510-4000332 SCREW, (M6 x 35), AnodeSCREW, (M6 x 35), Anode
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Anode ScrewWASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
-
278M0045383 STRIKER PLATE, Trim ShaftSTRIKER PLATE, Trim Shaft
-
2813-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2911-46335 NUT, (.375-24)NUT, (.375-24)
-
3084-99695A1 HARNESS ASSEMBLY, Control, Power Trim
(3 Wire)HARNESS ASSEMBLY, Control, Power Trim
(3 Wire) -
3084-17201A3 HARNESS ASSEMBLY, Control, Power Trim
(2 Wire)HARNESS ASSEMBLY, Control, Power Trim
(2 Wire) -
3184-79139A23 WIRE ASSEMBLY, Red
(15.50 Inch)WIRE ASSEMBLY, Red
(15.50 Inch) -
3184-87379A14 WIRE ASSEMBLY, (2.750 Inches), Red
(2.75 Inch)WIRE ASSEMBLY, (2.750 Inches), Red
(2.75 Inch) -
3289-96158T SOLENOID, StarterSOLENOID, Starter
-
3310-41508 SCREW, (.250-20 x .500) Stainless Steel, Starter SolenoidSCREW, (.250-20 x .500) Stainless Steel, Starter Solenoid
-
3411-26419 NUT, (#8-32) Brass, Solnoid TerminalNUT, (#8-32) Brass, Solnoid Terminal
-
3517-878267 PIN, Groove, Trim Cylinder (Lower)PIN, Groove, Trim Cylinder (Lower)
-
3611-94330 NUT, (.250-20) Brass, Solenoid TerminalNUT, (.250-20) Brass, Solenoid Terminal
-
3785-97861 INSULATOR, Starter SolenoidINSULATOR, Starter Solenoid
-
3854-22875 CLIP, Pump WireCLIP, Pump Wire
-
398M0084613 C WASHER, Clip ScrewC WASHER, Clip Screw
-
4010-69079 SCREW, (#10-16 x .440), Clip to Transom BracketSCREW, (#10-16 x .440), Clip to Transom Bracket
-
4110-4000377 SCREW, (M10 x 30), ManifoldSCREW, (M10 x 30), Manifold
-
4213-400258 LOCKWASHER, (M10) Stainless Steel, Manifold ScrewLOCKWASHER, (M10) Stainless Steel, Manifold Screw
