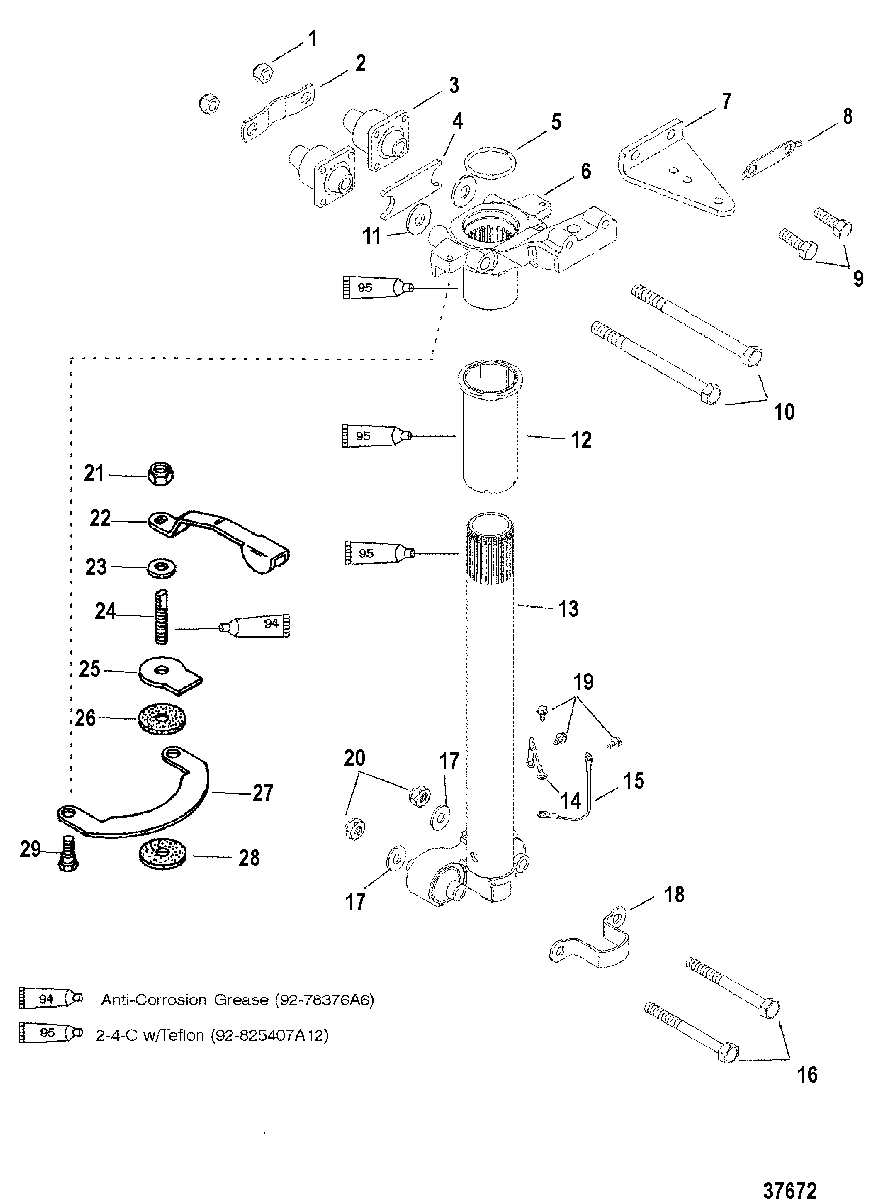

STEERING ARM для Mariner - 45 BODENSEE (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
111-896963 NUT, (M12)NUT, (M12)
-
2893773002 STRAPSTRAP
-
3893655T MOUNTMOUNT
-
4826658 BUMPERBUMPER
-
553-89531 RING, RetainingRING, Retaining
-
68M0118183 ARM, Steering
(BLACK)ARM, Steering
(BLACK) -
68M0118183 ARM, Steering
(GRAY)ARM, Steering
(GRAY) -
7893696 BRACKET
NON HANDLEBRACKET
NON HANDLE -
814-8M0009820 TAB WASHER
NON HANDLETAB WASHER
NON HANDLE -
910-4000377 SCREW, (M10 x 30)
NON HANDLESCREW, (M10 x 30)
NON HANDLE -
1010-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
1112-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
(BIGFOOT)WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
(BIGFOOT) -
1223-8279971 SPACERSPACER
-
13893590T01 SWIVEL TUBE ASSEMBLY
(NON-BIGFOOT) SN# 0G590000 & UpSWIVEL TUBE ASSEMBLY
(NON-BIGFOOT) SN# 0G590000 & Up -
13893590T01 SWIVEL TUBE
(NON-BIGFOOT-BLACK) SN# 0G589999 & BelowSWIVEL TUBE
(NON-BIGFOOT-BLACK) SN# 0G589999 & Below -
13893590T01 SWIVEL TUBE
(NON-BIGFOOT-GRAY) SN# 0G589999 & BelowSWIVEL TUBE
(NON-BIGFOOT-GRAY) SN# 0G589999 & Below -
13893590T04 SWIVEL TUBE
(BIGFOOT)SWIVEL TUBE
(BIGFOOT) -
1484-88238T01 CABLE ASSEMBLYCABLE ASSEMBLY
-
1588238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1610-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
1712-45176 WASHER, (.453 x .812 x .105) Stainless Steel
(BIGFOOT)WASHER, (.453 x .812 x .105) Stainless Steel
(BIGFOOT) -
18893703 BRACKETBRACKET
-
1910-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
2011-40140 NUT, (M10)NUT, (M10)
-
2111-8M0042636 NUT, (.375-24)
HANDLENUT, (.375-24)
HANDLE -
22823792 LEVER
HANDLELEVER
HANDLE -
2312-29330 WASHER
HANDLEWASHER
HANDLE -
24821961 ROD (THREADED)
HANDLEROD (THREADED)
HANDLE -
25821957 BRAKE PLATE
HANDLEBRAKE PLATE
HANDLE -
268165621 DISC
HANDLEDISC
HANDLE -
278M0007471 PLATE
HANDLEPLATE
HANDLE -
288165621 DISC
HANDLEDISC
HANDLE -
2910-768042 SHOULDER SCREW, Hex
HANDLESHOULDER SCREW, Hex
HANDLE
