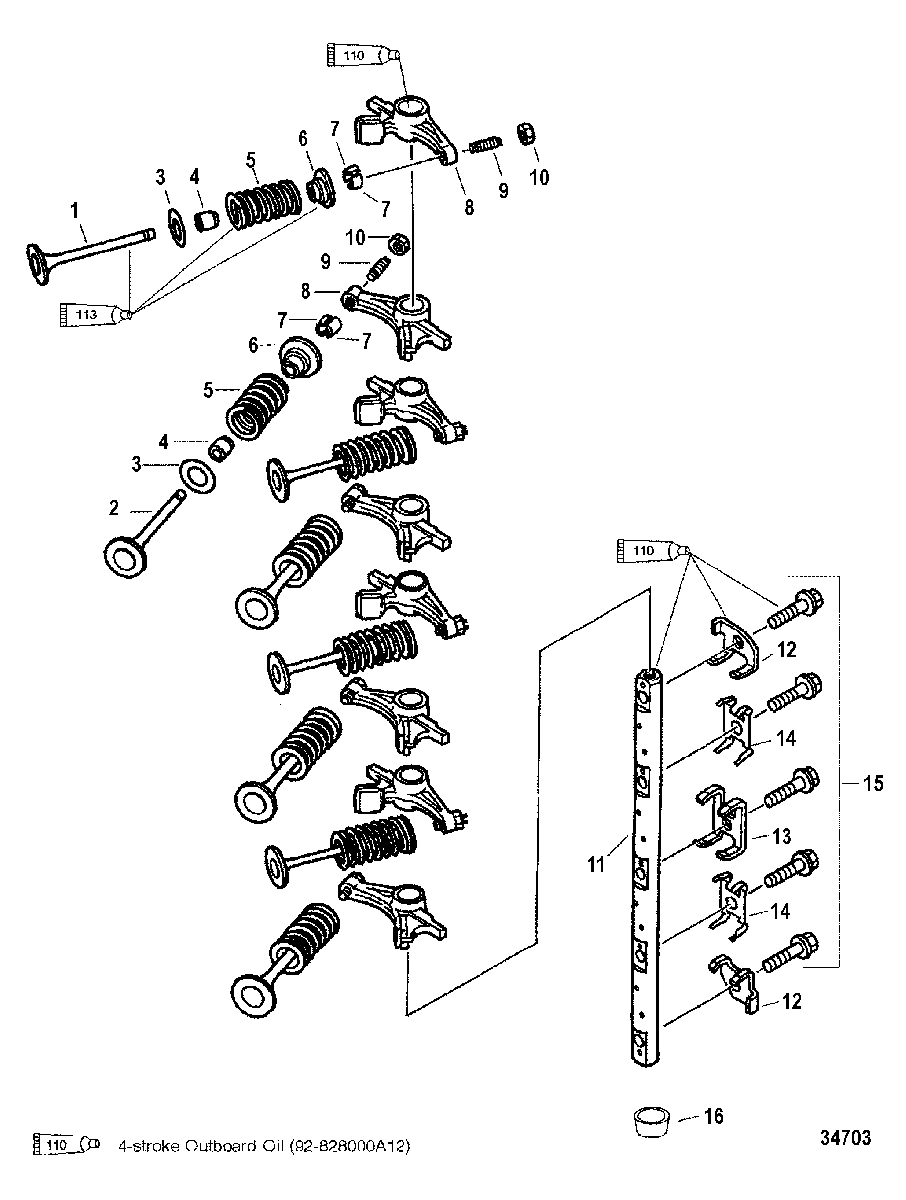

INTAKE/EXHAUST VALVES для Mariner - 45 BODENSEE (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
18M0119204 VALVE, ExhaustVALVE, Exhaust
-
2822648 VALVE, IntakeVALVE, Intake
-
312-825044 WASHER, Valve SpringWASHER, Valve Spring
-
426-822647 SEAL, Valve StemSEAL, Valve Stem
-
524-823678 SPRING, Valve OuterSPRING, Valve Outer
-
6893553 RETAINERRETAINER
-
728-893554 KEYKEY
-
8898821A01 ROCKER ARMROCKER ARM
-
9898821A01 SCREWSCREW
-
1011-826150 NUTNUT
-
11825049 SHAFT, RockerSHAFT, Rocker
-
12825050 BRACKETBRACKET
-
13825051 PLATEPLATE
-
1424-825052 SPRINGSPRING
-
1510-82641030 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1619-825042 PLUGPLUG
-
-27-832013A96 GASKET SETGASKET SET
-
-825034A17 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
