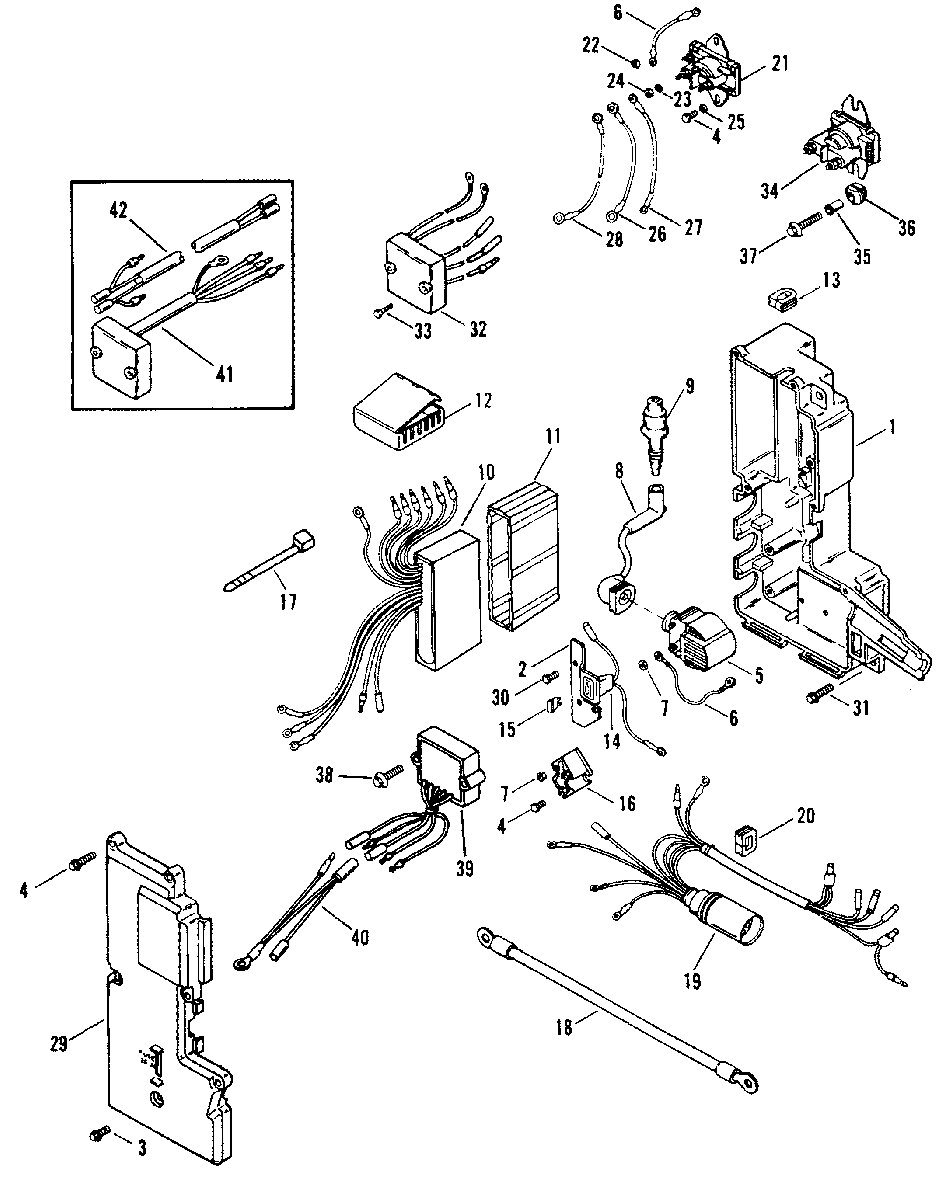

ELECTRICAL COMPONENTS (50/60) для Mariner - 45 JET 0D000750 THRU 0G290584
-
№АртикулНазвание
-
119745A8 ELECTRICAL PLATE
(W/ 6MM SCREW HOLES)ELECTRICAL PLATE
(W/ 6MM SCREW HOLES) -
2814674A1 RETAINING PLATERETAINING PLATE
-
310-8240631 SCREW
(6MM)SCREW
(6MM) -
410-824063 SCREW
(6MM)SCREW
(6MM) -
310-40011106 SCREW (USE W/REF. #39)
(5MM)SCREW (USE W/REF. #39)
(5MM) -
410-40011109 SCREW
(5MM)SCREW
(5MM) -
5339-832757A4 IGNITION COIL
(SERIAL 0G116484 & BELOW)IGNITION COIL
(SERIAL 0G116484 & BELOW) -
5339-832757A4 IGNITION COIL
(SERIAL 0G116485 & ABOVE)IGNITION COIL
(SERIAL 0G116485 & ABOVE) -
684-88807A6 CABLE (3-1/2")CABLE (3-1/2")
-
711-45076 NUT (10-32)NUT (10-32)
-
884-821945A52 SPARK PLUG LEAD KITSPARK PLUG LEAD KIT
-
933-13686Q SPARK PLUG (NGK #BU8H)SPARK PLUG (NGK #BU8H)
-
933-14103568 SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)
-
933-816737Q SPARK PLUG (NGK #BP8H-N-10)SPARK PLUG (NGK #BP8H-N-10)
-
933-816837Q SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)
-
1019052A8 SWITCH BOXSWITCH BOX
-
11813643 BOOTBOOT
-
12814760 RETAINER (OLD DESIGN)RETAINER (OLD DESIGN)
-
1325-813742 GROMMETGROMMET
-
1488-19637A2 FUSE SOCKET (1 RING/1 BULLET CONNECTOR)FUSE SOCKET (1 RING/1 BULLET CONNECTOR)
-
1488-19637A3 FUSE SOCKET (2 BULLET CONNECTORS)FUSE SOCKET (2 BULLET CONNECTORS)
-
1588-812619 FUSEFUSE
-
168M0058226 RECTIFIER (OLD DESIGN)RECTIFIER (OLD DESIGN)
-
1754-816311T STA-STRAPSTA-STRAP
-
1884-88439A4 BATTERY CABLEBATTERY CABLE
-
1984-19061A4 HARNESS ( LEAD HAS RING TERMINAL) (GRAY)HARNESS ( LEAD HAS RING TERMINAL) (GRAY)
-
1984-19061A4 HARNESS ( LEAD HAS BULLET CONNECTOR) (GRAY)HARNESS ( LEAD HAS BULLET CONNECTOR) (GRAY)
-
2025-813741 GROMMETGROMMET
-
2189-96054T SOLENOID (DESIGN I)SOLENOID (DESIGN I)
-
2211-26419 NUTNUT
-
2313-26992 WASHERWASHER
-
2411-64015 NUT (1/4-20)NUT (1/4-20)
-
2512-4002314 WASHERWASHER
-
2684-79139A24 CABLE (9-1/4")CABLE (9-1/4")
-
2784-88807A31 CABLE (7")CABLE (7")
-
2884-88439A9 CABLE (96")CABLE (96")
-
29814795T COVERCOVER
-
3010-40007107 SCREW (5MM)SCREW (5MM)
-
3110-40011149 SCREW (8MM)SCREW (8MM)
-
3214857A16 OIL WARNING MODULE
(SERIAL 0A000000-0G116484)OIL WARNING MODULE
(SERIAL 0A000000-0G116484) -
3214857A16 OIL WARNING MODULE
(SERIAL 0G116485-0Z999999)OIL WARNING MODULE
(SERIAL 0G116485-0Z999999) -
3310-40011109 SCREWSCREW
-
3489-850188T1 SOLENOID
(DESIGN II)SOLENOID
(DESIGN II) -
3523-818968 BUSHING
(DESIGN II)BUSHING
(DESIGN II) -
3625-818967 GROMMET
(DESIGN II)GROMMET
(DESIGN II) -
3710-40011110 SCREW (30MM)
(DESIGN II)SCREW (30MM)
(DESIGN II) -
3810-400039 SCREW (5MM)SCREW (5MM)
-
398M0084173 VOLTAGE REGULATORVOLTAGE REGULATOR
-
4084-813524A2 CABLECABLE
-
41821889A31 SPEED LIMITER
(MARATHON 60)SPEED LIMITER
(MARATHON 60) -
4284-823147A6 ADAPTOR HARNESS
(MARATHON 60)ADAPTOR HARNESS
(MARATHON 60)
