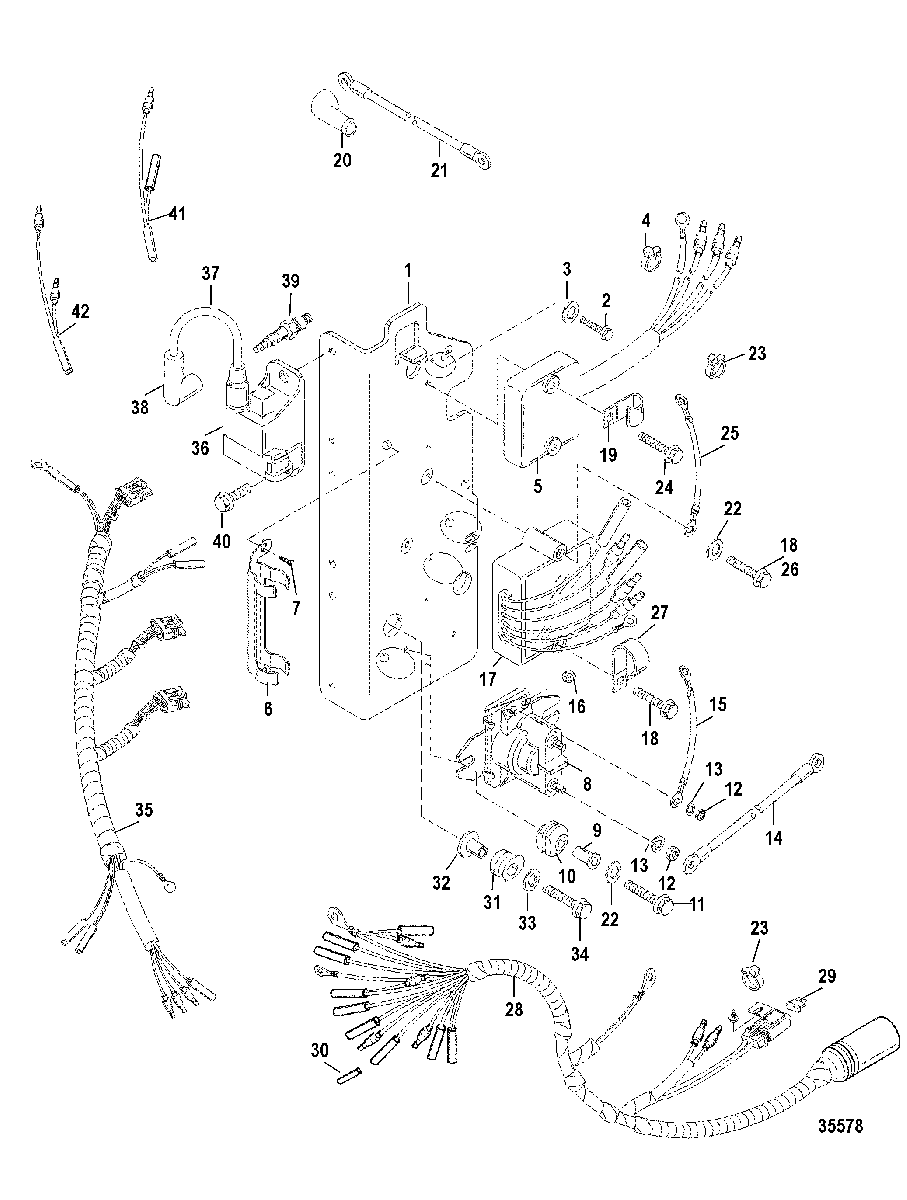

Electrical Components для Mariner - 45 JET 0G590000 THRU 0G760299
-
№АртикулНазвание
-
18302351 PLATE, ElectricalPLATE, Electrical
-
210-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
312-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
456762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
5821889A49 REV LIMITER
MANUALREV LIMITER
MANUAL -
5821889A50 REV LIMITER
ELECTRICREV LIMITER
ELECTRIC -
68266241 CLAMP
ELECTRICCLAMP
ELECTRIC -
710-82239312 SCREW, (M5 x 12)
ELECTRICSCREW, (M5 x 12)
ELECTRIC -
889-850187T1 SOLENOID ASSEMBLY
ELECTRICSOLENOID ASSEMBLY
ELECTRIC -
923-818968 BUSHING
ELECTRICBUSHING
ELECTRIC -
1025-818967 GROMMET
ELECTRICGROMMET
ELECTRIC -
1110-82129125 SCREW, (M6 x 25)
ELECTRICSCREW, (M6 x 25)
ELECTRIC -
1211-64015 NUT, (.250-20)
ELECTRICNUT, (.250-20)
ELECTRIC -
1313-26992 LOCKWASHER, (.250) Stainless Steel
ELECTRICLOCKWASHER, (.250) Stainless Steel
ELECTRIC -
1484-88807A33 CABLE ASSEMBLY
ELECTRICCABLE ASSEMBLY
ELECTRIC -
1584-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
ELECTRICCABLE ASSEMBLY, (4.00 Inches) Black
ELECTRIC -
1611-26419 NUT, (#8-32) Brass
ELECTRICNUT, (#8-32) Brass
ELECTRIC -
178M0084173 REGULATOR, Voltage
ELECTRICREGULATOR, Voltage
ELECTRIC -
1810-82129135 SCREW, (M6 x 35)
ELECTRICSCREW, (M6 x 35)
ELECTRIC -
1954-55098 J CLIP
ELECTRICJ CLIP
ELECTRIC -
2085-830233 BOOT, Insulator - Red
ELECTRICBOOT, Insulator - Red
ELECTRIC -
2184-88439A4 CABLE ASSEMBLY, Battery - Negative
ELECTRICCABLE ASSEMBLY, Battery - Negative
ELECTRIC -
2212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2410-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2584-88807A31 CABLE ASSEMBLYCABLE ASSEMBLY
-
2610-82129110 SCREW, (M6 x 10)
MANUALSCREW, (M6 x 10)
MANUAL -
2754-54457 J CLIP (QTY. OF 2 REQUIRED ON MANUAL)J CLIP (QTY. OF 2 REQUIRED ON MANUAL)
-
2884-850220A2 HARNESS ASSEMBLY, Engine
ELECTRICHARNESS ASSEMBLY, Engine
ELECTRIC -
2988-812619 FUSE, Yellow - 20 Ampere
ELECTRICFUSE, Yellow - 20 Ampere
ELECTRIC -
3013541 PLUG, Male
ELECTRICPLUG, Male
ELECTRIC -
3125-822002 GROMMETGROMMET
-
3223-822003 BUSHINGBUSHING
-
3312-4002316 WASHERWASHER
-
3410-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
3584-850221A2 HARNESS ASSEMBLY, IgnitionHARNESS ASSEMBLY, Ignition
-
36827509T7 CDM ASSEMBLYCDM ASSEMBLY
-
3784-821945A61 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
3885-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
3933-816737Q SPARK PLUG (NGK# BP8H-N-10)SPARK PLUG (NGK# BP8H-N-10)
-
3933-816837Q SPARK PLUG (NGK#BPZ-8H-N-10)SPARK PLUG (NGK#BPZ-8H-N-10)
-
3933-14103568 SPARK PLUG (NGK#BUZ8H)SPARK PLUG (NGK#BUZ8H)
-
3933-8M0114745 SPARK PLUG (NGK#BP8HS-10)SPARK PLUG (NGK#BP8HS-10)
-
4010-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4184-850052A1 HARNESS ASSEMBLY, Power
MANUALHARNESS ASSEMBLY, Power
MANUAL -
4284-11149T31 HARNESS ASSEMBLY
MANUALHARNESS ASSEMBLY
MANUAL
