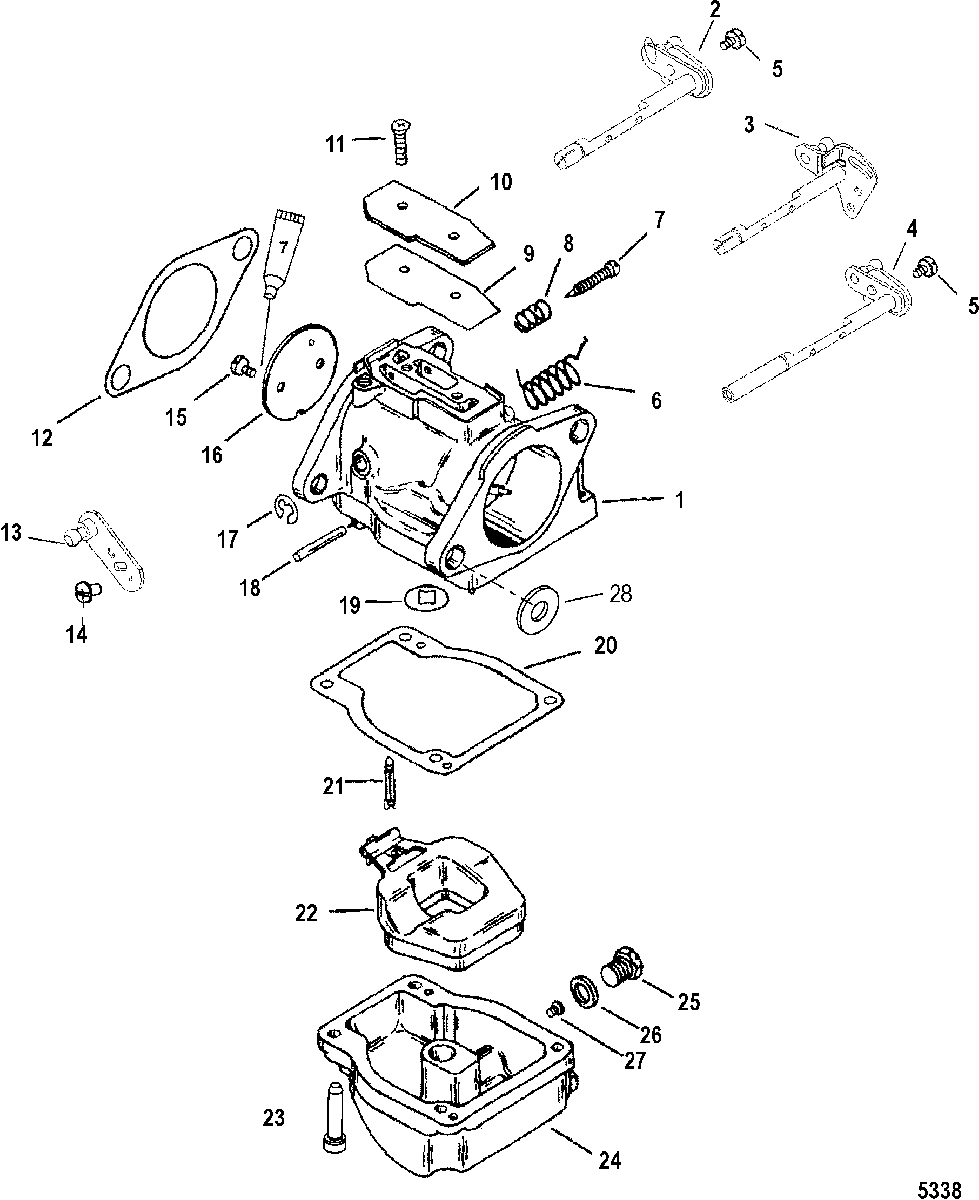

Carburetor для Mariner - 45 JET 0P017000 THRU 0P094499
-
№АртикулНазвание
-
13301-821854T22 CARBURETOR, (WME 58-1) (Top)(60 Electric)CARBURETOR, (WME 58-1) (Top)(60 Electric)
-
13301-821854T23 CARBURETOR, (WME 58-2) (Center)(60 Electric)CARBURETOR, (WME 58-2) (Center)(60 Electric)
-
13301-821854T24 CARBURETOR, (WME 58-3) (Bottom)(60 Electric)CARBURETOR, (WME 58-3) (Bottom)(60 Electric)
-
13301-821854T19 CARBURETOR, (WME 57-1) (Top)(55/60 Manual)CARBURETOR, (WME 57-1) (Top)(55/60 Manual)
-
13301-821854T20 CARBURETOR, (WME 57-2) (Center)(55/60 Manual)CARBURETOR, (WME 57-2) (Center)(55/60 Manual)
-
13301-821854T21 CARBURETOR, (WME 57-3) (Bottom)(55/60 Manual)CARBURETOR, (WME 57-3) (Bottom)(55/60 Manual)
-
13301-821854T22 CARBURETOR, (WME 95-1) (Top)(60 Electric)CARBURETOR, (WME 95-1) (Top)(60 Electric)
-
13301-821854T23 CARBURETOR, (WME 95-2) (Center)(60 Electric)CARBURETOR, (WME 95-2) (Center)(60 Electric)
-
13301-821854T24 CARBURETOR, (WME 95-3) (Bottom)(60 Electric)CARBURETOR, (WME 95-3) (Bottom)(60 Electric)
-
13301-821854T19 CARBURETOR KIT, (WME 94-1) (Carburetor and Filter Assembly)CARBURETOR KIT, (WME 94-1) (Carburetor and Filter Assembly)
-
13301-821854T20 CARBURETOR KIT, (WME 94-2) (Carburetor and Filter Assembly)CARBURETOR KIT, (WME 94-2) (Carburetor and Filter Assembly)
-
13301-821854T21 CARBURETOR KIT, (WME 94-3) (Carburetor and Filter Assembly)CARBURETOR KIT, (WME 94-3) (Carburetor and Filter Assembly)
-
13301-821854T19 CARBURETOR, (WME 94-1) (Top)(55/60 Manual)CARBURETOR, (WME 94-1) (Top)(55/60 Manual)
-
13301-821854T20 CARBURETOR, (WME 94-2) (Center)(55/60 Manual)CARBURETOR, (WME 94-2) (Center)(55/60 Manual)
-
13301-821854T21 CARBURETOR, (WME 94-3) (Bottom)(55/60 Manual)CARBURETOR, (WME 94-3) (Bottom)(55/60 Manual)
-
21395-823632 SHAFT, Throttle
(Upper)(WME-58/95)SHAFT, Throttle
(Upper)(WME-58/95) -
31395-823633 SHAFT, Throttle
(Center)(WME-58/95)SHAFT, Throttle
(Center)(WME-58/95) -
41395-823636 SHAFT, Throttle
(Bottom)(WME-58/95)SHAFT, Throttle
(Bottom)(WME-58/95) -
21395-823632 SHAFT, Throttle
(Upper/Bottom)(WME-57/94)SHAFT, Throttle
(Upper/Bottom)(WME-57/94) -
31395-823633 SHAFT, Throttle
(Center)(WME-57/94)SHAFT, Throttle
(Center)(WME-57/94) -
51395-823634 SCREW
(Upper/Bottom)SCREW
(Upper/Bottom) -
6NSS NOT SOLD SEPARATE, Spring-Throttle ReturnNOT SOLD SEPARATE, Spring-Throttle Return
-
7NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
8NSS NOT SOLD SEPARATE, Spring-Idle NeedleNOT SOLD SEPARATE, Spring-Idle Needle
-
9NSS NOT SOLD SEPARATE, Gasket-Cover PlateNOT SOLD SEPARATE, Gasket-Cover Plate
-
101395-811221 COVER PLATECOVER PLATE
-
111395-811220 SCREW, Cover PlateSCREW, Cover Plate
-
1227-8144461 GASKET, FlangeGASKET, Flange
-
131395-8113522 LEVER, Oil Pump
(WME 58/95 -Bottom)LEVER, Oil Pump
(WME 58/95 -Bottom) -
141395-8086121 SCREW, Lever Retainer
(WME 58/95 -Bottom)SCREW, Lever Retainer
(WME 58/95 -Bottom) -
1510-F10155 SCREW, Throttle ValveSCREW, Throttle Valve
-
1697246 VALVE, ThrottleVALVE, Throttle
-
17NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
18F10064 SHAFTSHAFT
-
191395-808738 GASKETGASKET
-
20NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
2110-95951 VALVE, Inlet NeedleVALVE, Inlet Needle
-
221395-9594 FLOATFLOAT
-
231395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
241395-811695 BOWL, Fuel
(Upper)(WME-57/94)BOWL, Fuel
(Upper)(WME-57/94) -
241395-811693 BOWL, Fuel
(Center/Bottom)(WME-57/94)BOWL, Fuel
(Center/Bottom)(WME-57/94) -
241395-811693 BOWL, Fuel
(WME-58/95)BOWL, Fuel
(WME-58/95) -
251395-811694 PLUG KITPLUG KIT
-
261395-802731 SEAL (Consists of 4 seals)SEAL (Consists of 4 seals)
-
271395-7831 JET, Main Fuel (.058)
(.058 - WME-57/94)JET, Main Fuel (.058)
(.058 - WME-57/94) -
271395-6487 JET, Main (.060)
(.060 - WME-58/95)JET, Main (.060)
(.060 - WME-58/95) -
-27-812867A97 GASKET SETGASKET SET
-
-1395-8236354 REPAIR KIT, Carburetor
(1 Per Carburetor)REPAIR KIT, Carburetor
(1 Per Carburetor) -
-1395-8112231 GASKET SET, Carburetor
(1 Per Carburetor)GASKET SET, Carburetor
(1 Per Carburetor)
