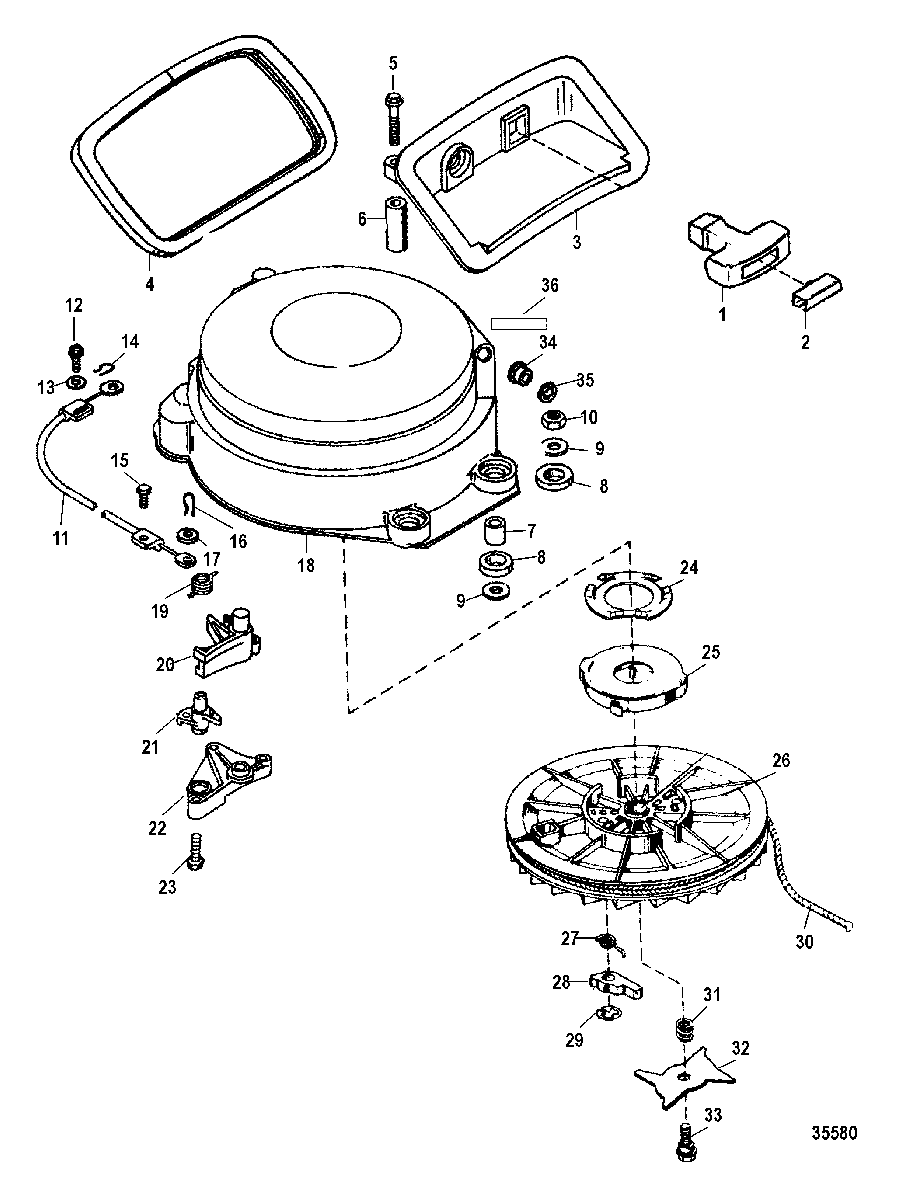

Recoil Starter, Manual для Mariner - 45 JET 9973100 THRU 0P016999
-
№АртикулНазвание
-
185174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
2NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
38167652 RESTREST
-
48M0043161 SEALSEAL
-
510-82170475 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
623-821702 SPACERSPACER
-
723-816086 BUSHINGBUSHING
-
825-815795 GROMMETGROMMET
-
912-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
1011-401196 NUT, (M6)NUT, (M6)
-
118567541 CABLE, InterlockCABLE, Interlock
-
1210-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1312-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
1418-26811 COTTER PINCOTTER PIN
-
1510-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1618-26811 COTTER PINCOTTER PIN
-
1712-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
-816728T14 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
18816728T05 HOUSINGHOUSING
-
1924-826791 SPRINGSPRING
-
208166903 LEVERLEVER
-
21816712T01 CAMCAM
-
22816711 RETAINERRETAINER
-
2310-8182491 SCREW, (#10-16 x 1.00)SCREW, (#10-16 x 1.00)
-
2413-826229 LOCKWASHER, SPRINGLOCKWASHER, SPRING
-
2524-86857T01 SPRINGSPRING
-
2650-825269T01 SHEAVE, StarterSHEAVE, Starter
-
2724-86851T02 SPRINGSPRING
-
28868501 CAMCAM
-
2953-86849T01 RING, RetainingRING, Retaining
-
3050-12066Q10 ROPEROPE
-
3124-868523 SPRING, CamSPRING, Cam
-
3286853T01 CAMCAM
-
3310-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
3442690 BUSHINGBUSHING
-
3553-818853 RING, RetainingRING, Retaining
-
36NSS NOT SOLD SEPARATE, Decal-Full Throttle TimingNOT SOLD SEPARATE, Decal-Full Throttle Timing
