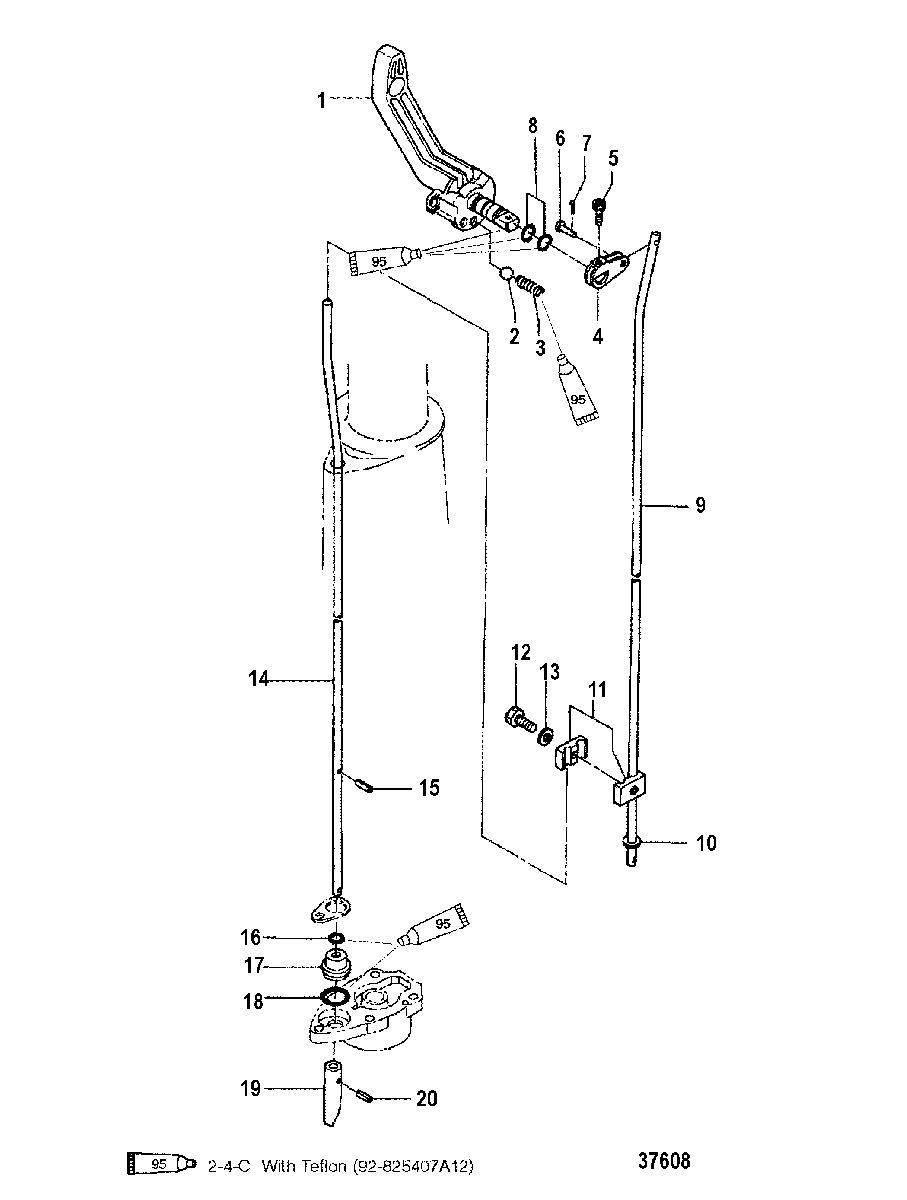

SHIFT COMPONENTS для Mariner - 4/5 0A855097 THRU 0G710612
-
№АртикулНазвание
-
18130275 LEVER, ShiftLEVER, Shift
-
230-812937 STOPPERSTOPPER
-
324-813028 SPRINGSPRING
-
416184 LEVERLEVER
-
510-16185 BOLTBOLT
-
617-16188 PINPIN
-
718-16189 COTTER PINCOTTER PIN
-
825-16181 O-RINGO-RING
-
916186 SHIFT ROD
(SHORT)SHIFT ROD
(SHORT) -
916187 SHIFT ROD
(LONG)SHIFT ROD
(LONG) -
1012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1116190 JOINTJOINT
-
1210-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1312-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
148M0044705 CAM ROD
(SHORT)CAM ROD
(SHORT) -
148M0058365 CAM ROD
(LONG)CAM ROD
(LONG) -
1517-16179 PINPIN
-
1625-161771 O-RINGO-RING
-
1723-16176 BUSHINGBUSHING
-
1825-16178 O-RINGO-RING
-
198M0090459 CAMCAM
-
2017-16175 PINPIN
-
-27-8M0134073 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
