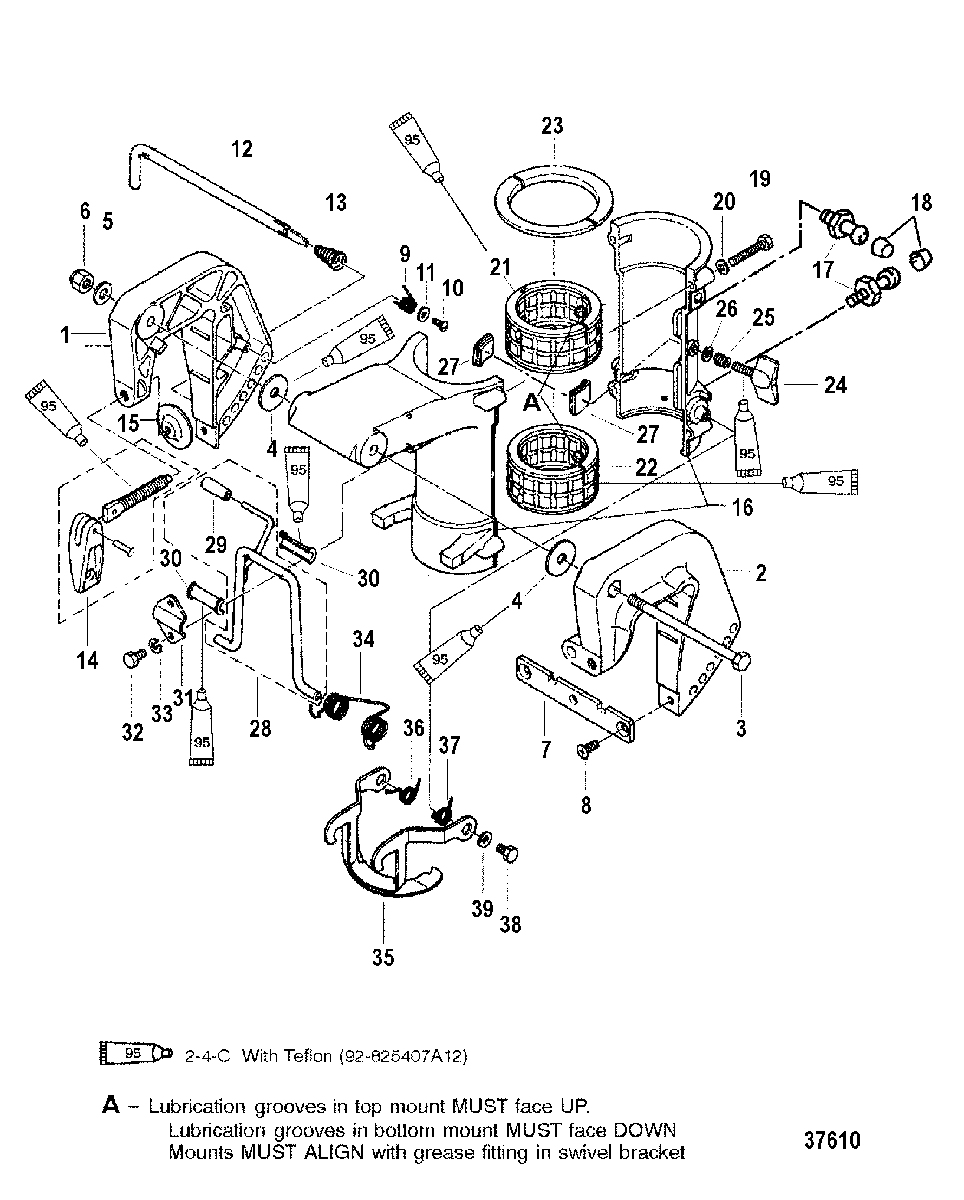

CLAMP AND SWIVEL BRACKETS для Mariner - 4/5 9589154 THRU 0P016999
-
№АртикулНазвание
-
196221 CLAMP BRACKET
(STBD.) - BLACKCLAMP BRACKET
(STBD.) - BLACK -
13406-8150301 CLAMP BRACKET
(STBD.) - GRAYCLAMP BRACKET
(STBD.) - GRAY -
23406-96231 CLAMP BRACKET, Port
BLACKCLAMP BRACKET, Port
BLACK -
23406-96231 CLAMP BRACKET
(PORT) - GRAYCLAMP BRACKET
(PORT) - GRAY -
310-898101337 BOLTBOLT
-
412-95375 WASHERWASHER
-
512-16192 WASHERWASHER
-
611-815088 NUT, (M8)NUT, (M8)
-
716193 DISTANCE PLATEDISTANCE PLATE
-
810-16194 SCREWSCREW
-
924-161951 SPRING
SN# USA-0G574242/BEL-9973100 & UpSPRING
SN# USA-0G574242/BEL-9973100 & Up -
924-161951 SPRING
SN# USA-0G574241/BEL-9973099 & BelowSPRING
SN# USA-0G574241/BEL-9973099 & Below -
1010-16196 SCREWSCREW
-
1112-16197 WASHERWASHER
-
1216198004 THRUST RODTHRUST ROD
-
1324-815093003 SPRINGSPRING
-
1410-8M0075060 CLAMP SCREW ASSEMBLY
(BLACK)CLAMP SCREW ASSEMBLY
(BLACK) -
1410-815032 THUMB SCREW ASSEMBLY
(GRAY)THUMB SCREW ASSEMBLY
(GRAY) -
1512-95379 PADPAD
-
163407-813029T1 SWIVEL BRACKET
(BLACK)SWIVEL BRACKET
(BLACK) -
163407-815033T1 SWIVEL BRACKET
(GRAY)SWIVEL BRACKET
(GRAY) -
1722-824969 FITTING, GreaseFITTING, Grease
-
18808599 CAPCAP
-
1910-16201 BOLTBOLT
-
2012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2123-8M0057473 BUSHING (UPPER)BUSHING (UPPER)
-
2223-16203 BUSHING (LOWER)BUSHING (LOWER)
-
2223-8M0057474 BUSHING (LOWER)
(SEE NOTE 1)BUSHING (LOWER)
(SEE NOTE 1) -
2316204 THRUST PLATETHRUST PLATE
-
2410-162061 SCREW
(BLACK)SCREW
(BLACK) -
2410-815034 SCREW, Adjusting
(GRAY)SCREW, Adjusting
(GRAY) -
2524-953838 SPRINGSPRING
-
2612-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
27162051 FRICTION PLATEFRICTION PLATE
-
288M0045584 STOP ASSEMBLY, TiltSTOP ASSEMBLY, Tilt
-
298M0090337 GRIP
(SEE NOTE 1)GRIP
(SEE NOTE 1) -
298M0045584 GRIPGRIP
-
30825113 BUSHING
(SEE NOTE 1)BUSHING
(SEE NOTE 1) -
30NLA No Longer Available
Bushing (ORDER 825112A2)No Longer Available
Bushing (ORDER 825112A2) -
3116210002 SET PLATESET PLATE
-
3210-162111 BOLT
(SEE NOTE 1)BOLT
(SEE NOTE 1) -
3210-95396 BOLTBOLT
-
3313-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
3424-16212 SPRINGSPRING
-
3516213 ARM, Reverse LockARM, Reverse Lock
-
3624-16215 SPRING
(RIGHT)SPRING
(RIGHT) -
3724-16216 SPRING
(LEFT)SPRING
(LEFT) -
3810-16223 BOLTBOLT
-
3912-16826 WASHER, Stainless SteelWASHER, Stainless Steel
