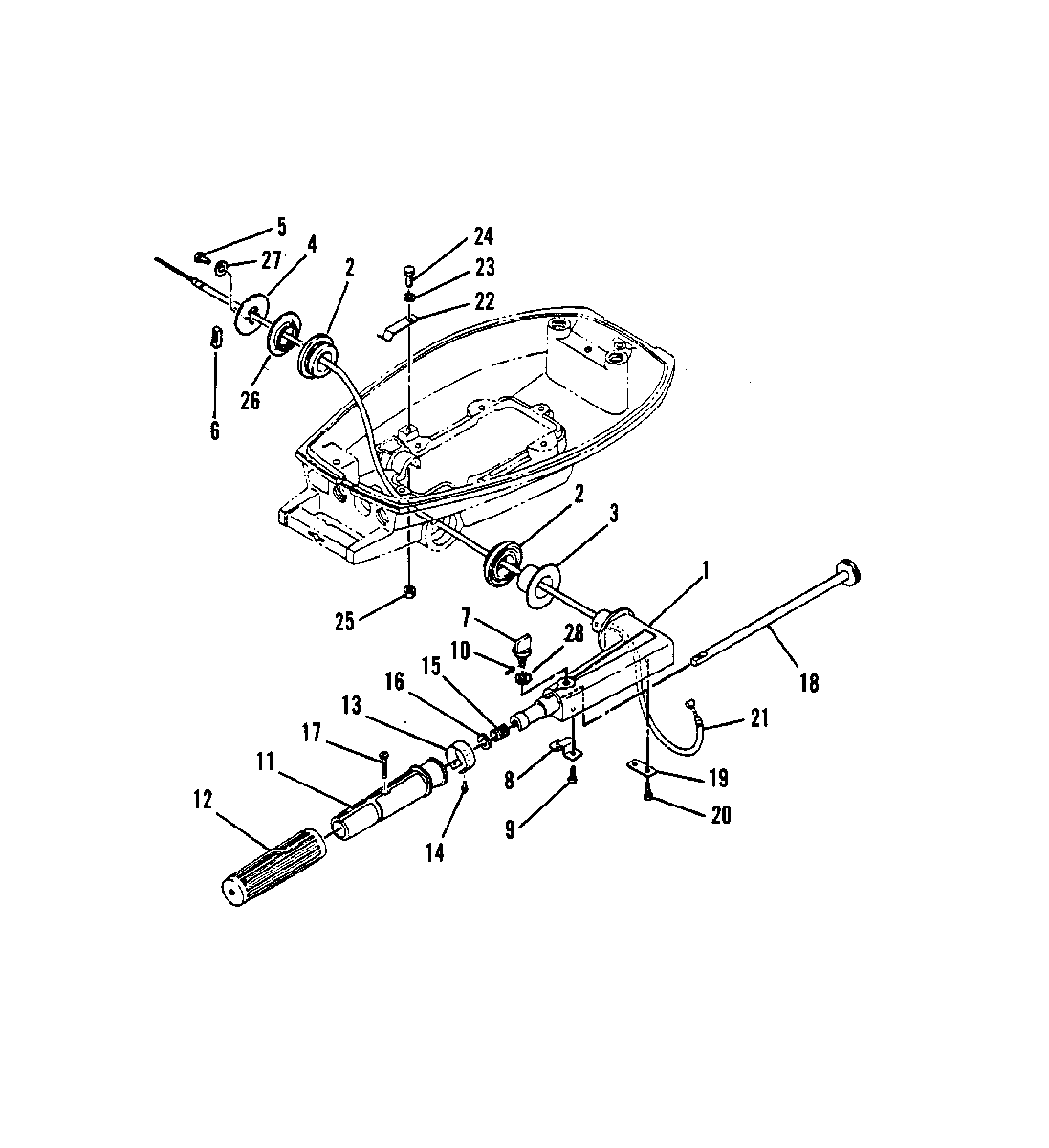

THROTTLE CONTROL для Mariner - 4A 6E0-300101 AND UP
-
№АртикулНазвание
-
191756M HANDLE, STEERINGHANDLE, STEERING
-
223-17657M BUSHING, RUBBERBUSHING, RUBBER
-
323-91758M BUSHINGBUSHING
-
418845M COVER, STEERING HANDLE
SERIAL (M-093348 ML-332748) AND ABOVECOVER, STEERING HANDLE
SERIAL (M-093348 ML-332748) AND ABOVE -
443112M COVER, STEERING HANDLE
SERIAL (M-093347 ML-332747) AND BELOWCOVER, STEERING HANDLE
SERIAL (M-093347 ML-332747) AND BELOW -
510-82419M BOLT
SERIAL (M-070824 ML-325784) AND ABOVEBOLT
SERIAL (M-070824 ML-325784) AND ABOVE -
510-95473M BOLT
SERIAL (M-043239-070823 ML-212355 THRU 325783)BOLT
SERIAL (M-043239-070823 ML-212355 THRU 325783) -
510-82417M BOLT
SERIAL (M-043238 ML-212354) AND BELOWBOLT
SERIAL (M-043238 ML-212354) AND BELOW -
623-91760M BUSHING, RUBBER
SERIAL (M-043238 ML-212354) AND BELOWBUSHING, RUBBER
SERIAL (M-043238 ML-212354) AND BELOW -
710-91761M BOLT, FRICTION ADJUSTINGBOLT, FRICTION ADJUSTING
-
818846M COVER
SERIAL (M-093348 ML-332748) AND ABOVECOVER
SERIAL (M-093348 ML-332748) AND ABOVE -
818846M COVER
SERIAL (M-093347 ML-332747) AND BELOWCOVER
SERIAL (M-093347 ML-332747) AND BELOW -
910-14232M SCREWSCREW
-
1018-16189 PINPIN
-
1191764M HANDLEHANDLE
-
1291765M GRIP, HANDLEGRIP, HANDLE
-
1316632M INDICATOR, THROTTLE
SERIAL (M-082241 ML-329127) AND ABOVEINDICATOR, THROTTLE
SERIAL (M-082241 ML-329127) AND ABOVE -
1316632M INDICATOR, THROTTLE
SERIAL (M-082240 ML-329126) AND BELOWINDICATOR, THROTTLE
SERIAL (M-082240 ML-329126) AND BELOW -
1417-81907M RIVETRIVET
-
1524-82095M SPRINGSPRING
-
1612-91767M WASHERWASHER
-
1710-811916M SCREW
SERIAL (M-093348 ML-332748) AND ABOVESCREW
SERIAL (M-093348 ML-332748) AND ABOVE -
1710-811916M SCREW
SERIAL (M-093347 ML-332747) AND BELOWSCREW
SERIAL (M-093347 ML-332747) AND BELOW -
1841252M SHAFTSHAFT
-
1918848M PLATE
SERIAL (M-093348 ML-332748) AND ABOVEPLATE
SERIAL (M-093348 ML-332748) AND ABOVE -
1918848M PLATE
SERIAL (M-093347 ML-332747) AND BELOWPLATE
SERIAL (M-093347 ML-332747) AND BELOW -
2010-14232M SCREWSCREW
-
2111921M THROTTLE WIRE ASS'YTHROTTLE WIRE ASS'Y
-
2224-91771M SPRINGSPRING
-
2312-82214M WASHERWASHER
-
2410-91772M BOLTBOLT
-
2511-82390M NUTNUT
-
2623-96558M BUSHING
SERIAL (M-013401 ML-306026) AND ABOVEBUSHING
SERIAL (M-013401 ML-306026) AND ABOVE -
2712-82211M WASHER
SERIAL (M-013401 ML-306026) AND ABOVEWASHER
SERIAL (M-013401 ML-306026) AND ABOVE -
2812-41290M WASHER
SERIAL (M-013401 ML-306026) AND ABOVEWASHER
SERIAL (M-013401 ML-306026) AND ABOVE
