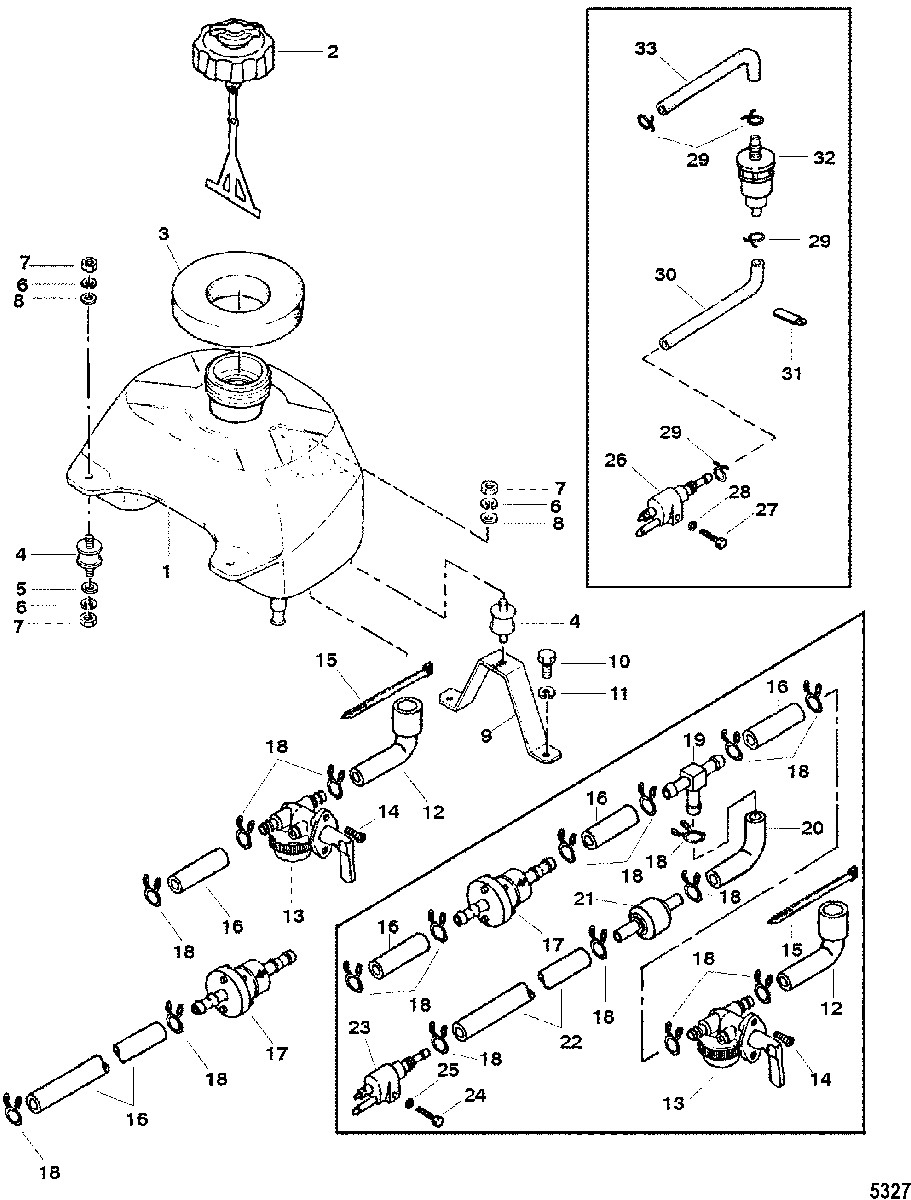

Fuel Tank для Mariner - 5 (2-STROKE) 0T894439 & Up
-
№АртикулНазвание
-
11258-824964A03 TANK ASSEMBLY, Fuel
SN# 1B564133 & BelowTANK ASSEMBLY, Fuel
SN# 1B564133 & Below -
11258-824964A05 TANK ASSEMBLY, Fuel
SN# 1B564134 & UpTANK ASSEMBLY, Fuel
SN# 1B564134 & Up -
236-8M0060029 CAPCAP
-
326-898103234 SEAL
Included with Fuel Tank SN# 1B564134 & UpSEAL
Included with Fuel Tank SN# 1B564134 & Up -
326-8M0099393 SEAL
SN# 1B564133 & BelowSEAL
SN# 1B564133 & Below -
416236 MOUNTMOUNT
-
512-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
613-400256 LOCKWASHER, (M6)
SN# 1B564133 & BelowLOCKWASHER, (M6)
SN# 1B564133 & Below -
612-16826 WASHER, Stainless Steel
SN# 1B564134 & UpWASHER, Stainless Steel
SN# 1B564134 & Up -
711-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
812-898101937 WASHERWASHER
-
98M0046049 BRACKETBRACKET
-
1010-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
1222-815043 REDUCER ELBOWREDUCER ELBOW
-
1322-815045 FUEL COCK ASSEMBLYFUEL COCK ASSEMBLY
-
1410-815046 SCREW, Stainless SteelSCREW, Stainless Steel
-
1556762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1632-8M0057113 LINE, Fuel (1000 mm)
4 HorsepowerLINE, Fuel (1000 mm)
4 Horsepower -
1632-8M0057113 LINE, Fuel (1000 mm)
5 HorsepowerLINE, Fuel (1000 mm)
5 Horsepower -
1735-16248 FILTER, FuelFILTER, Fuel
-
1854-95395 CLIP, Stainless Steel
4 HorsepowerCLIP, Stainless Steel
4 Horsepower -
1854-95395 CLIP, Stainless Steel
5 HorsepowerCLIP, Stainless Steel
5 Horsepower -
1922-73318 TEE, Plastic
5 HorsepowerTEE, Plastic
5 Horsepower -
2032-815049 HOSE, Rubber
5 HorsepowerHOSE, Rubber
5 Horsepower -
2122-815048 CONNECTOR, Plastic
5 HorsepowerCONNECTOR, Plastic
5 Horsepower -
2232-8M0057113 HOSE, Rubber (110 mm)
5 HorsepowerHOSE, Rubber (110 mm)
5 Horsepower -
2322-15781A5 CONNECTOR, Fuel - Brass
5 HorsepowerCONNECTOR, Fuel - Brass
5 Horsepower -
2410-4000333 SCREW, (M6 x 40)
5 HorsepowerSCREW, (M6 x 40)
5 Horsepower -
2512-16826 WASHER, Stainless Steel
5 HorsepowerWASHER, Stainless Steel
5 Horsepower -
2622-15781A5 CONNECTOR, Fuel - Brass
5 HorsepowerCONNECTOR, Fuel - Brass
5 Horsepower -
2710-4000333 SCREW, (M6 x 40)
5 HorsepowerSCREW, (M6 x 40)
5 Horsepower -
2812-16826 WASHER, Stainless Steel
5 HorsepowerWASHER, Stainless Steel
5 Horsepower -
2954-95395 CLIP, Stainless Steel
5 HorsepowerCLIP, Stainless Steel
5 Horsepower -
3032-17668 HOSE
5 HorsepowerHOSE
5 Horsepower -
3154-813275 CLAMP
5 HorsepowerCLAMP
5 Horsepower -
3235-16248 FILTER, Fuel
5 HorsepowerFILTER, Fuel
5 Horsepower -
3332-17669 HOSE
5 HorsepowerHOSE
5 Horsepower -
-22-815045A1 SHUTOFF KIT, Fuel
4 HorsepowerSHUTOFF KIT, Fuel
4 Horsepower -
-815596A2 FUEL TANK ADAPTOR KITFUEL TANK ADAPTOR KIT
