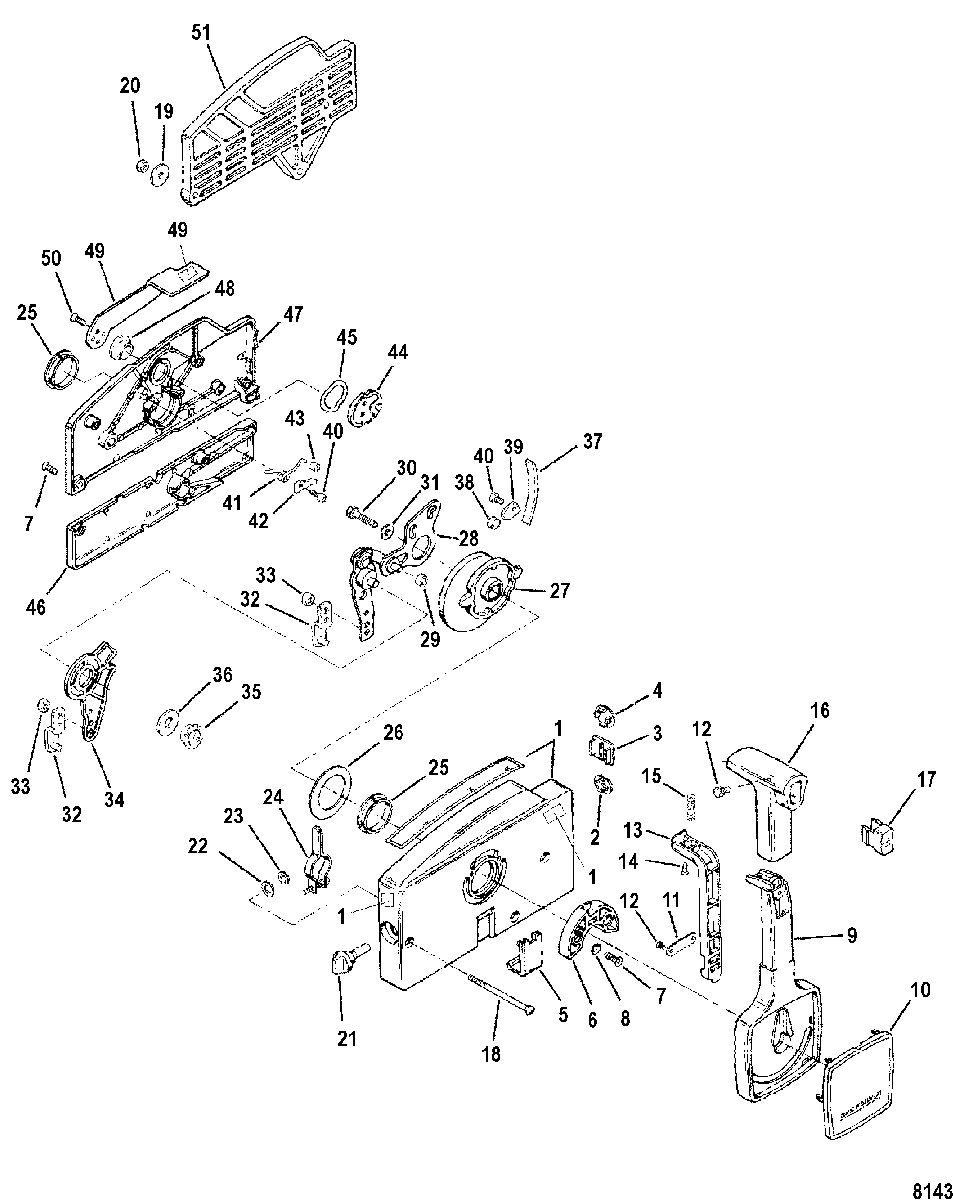

Remote Control для Mariner - 5 (4-STROKE) 0R000001 THRU 0R067089
-
№АртикулНазвание
-
-881170A8 REMOTE CONTROL
(Manual Start)REMOTE CONTROL
(Manual Start) -
116910A1 HOUSING KIT, Front, With Decals-FrontHOUSING KIT, Front, With Decals-Front
-
219-89774 PLUGPLUG
-
317192 PLUG, Stop Switch HolePLUG, Stop Switch Hole
-
417191 PLUG, Wire Harness HolePLUG, Wire Harness Hole
-
516917 COVERCOVER
-
616899T HOLDER, Neutral LockHOLDER, Neutral Lock
-
710-40118107 SCREW, (M5 x 18)SCREW, (M5 x 18)
-
813-16923 LOCKWASHER, ExternalLOCKWASHER, External
-
916913T LEVERLEVER
-
1016916A1 CAP ASSEMBLY, With DecalCAP ASSEMBLY, With Decal
-
1116921 BRACKET, Lock Bar SupportBRACKET, Lock Bar Support
-
1210-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1316915 LOCK ARMLOCK ARM
-
1410-40056105 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
1524-16924 SPRINGSPRING
-
1616914 GRIPGRIP
-
1717016 PLUGPLUG
-
1810-40116110T SCREW, (M6 x 110)SCREW, (M6 x 110)
-
1912-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2011-401196 NUT, (M6)NUT, (M6)
-
2116920 BRAKE ADJUSTERBRAKE ADJUSTER
-
2212-16896 WASHERWASHER
-
2353-13194 RING, RetainingRING, Retaining
-
2416895 ARM ASSEMBLY, BrakeARM ASSEMBLY, Brake
-
2523-16875 BEARING, (1.750 Inside Diameter) (1.750 ID)BEARING, (1.750 Inside Diameter) (1.750 ID)
-
2612-16874 WASHERWASHER
-
2716892T GEAR, DriveGEAR, Drive
-
28850724A2 PLATE/STUD ASSEMBLYPLATE/STUD ASSEMBLY
-
2916873 ROLLER, CamROLLER, Cam
-
3010-4007154 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
3112-12038 WASHERWASHER
-
3254-85899A1 CLIP ASSEMBLYCLIP ASSEMBLY
-
3311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3416918A3 GEAR SHIFT ASSEMBLYGEAR SHIFT ASSEMBLY
-
3523-16868 BEARING, (.750 Inside Diameter) (.750 ID)BEARING, (.750 Inside Diameter) (.750 ID)
-
3612-16870 WASHERWASHER
-
3724-16882 SPRINGSPRING
-
3816879 ROLLER, DetentROLLER, Detent
-
3916880 CLIPCLIP
-
4010-4005683 SCREW, (M4 x 6)SCREW, (M4 x 6)
-
4124-16888 SPRINGSPRING
-
4216886 CLIPCLIP
-
4316884 ROLLERROLLER
-
4416883 DRUM ASSEMBLYDRUM ASSEMBLY
-
4513-16922 WAVE WASHERWAVE WASHER
-
4616912T COVER, BottomCOVER, Bottom
-
4716911T COVER, TopCOVER, Top
-
4823-16887 BEARING, (.810 Inside Diameter) (.810 ID)BEARING, (.810 Inside Diameter) (.810 ID)
-
4916919A1 LEVER ASSEMBLY, With DecalLEVER ASSEMBLY, With Decal
-
5010-40118106 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
5117063T SPACERSPACER
