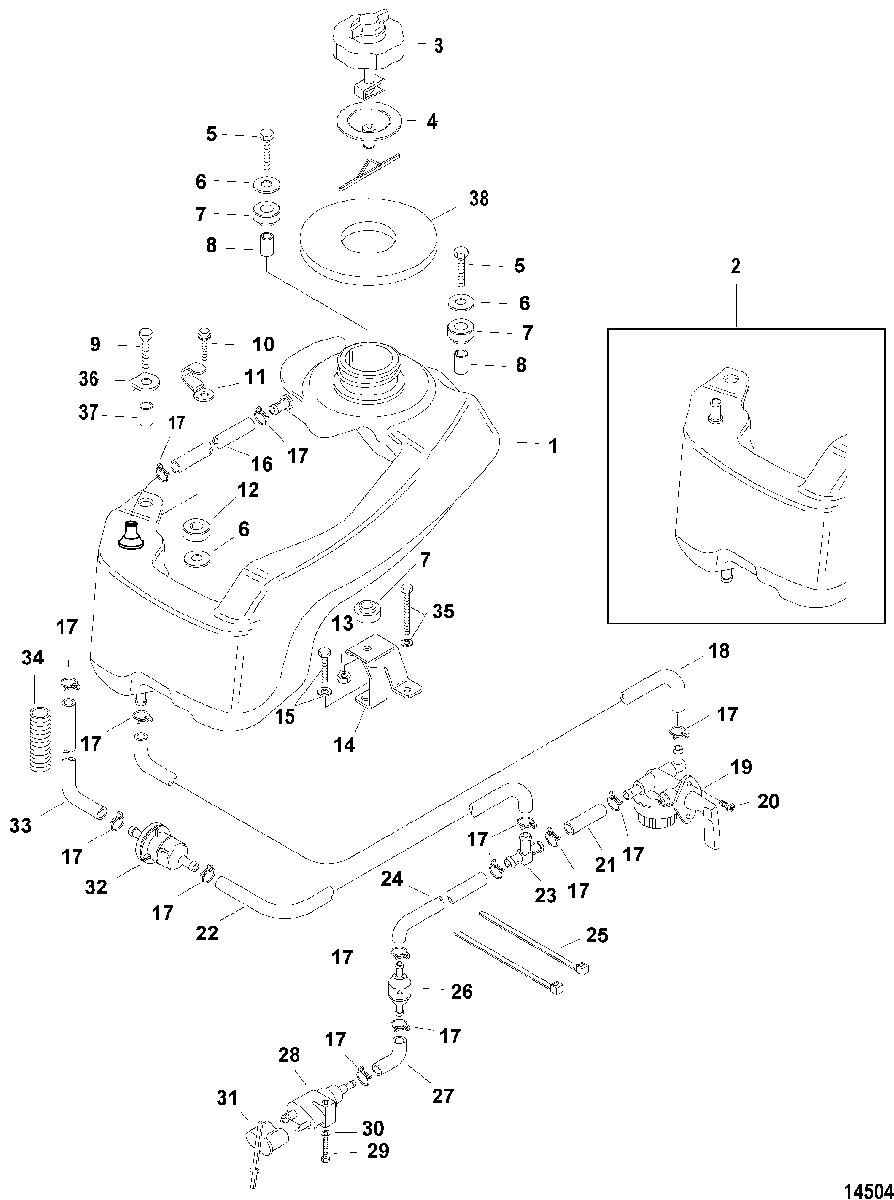

Integral Fuel Tank, 4 Horsepower для Mariner - 5 (4-STROKE) 0R067090 THRU 0R411837
-
№АртикулНазвание
-
11200-8M0088123 TANK ASSEMBLY, Fuel
Design IITANK ASSEMBLY, Fuel
Design II -
21200-8M0088123 TANK ASSEMBLY, Fuel
Design ITANK ASSEMBLY, Fuel
Design I -
21258-878355A2 TANK ASSEMBLY, Fuel
BodenseeTANK ASSEMBLY, Fuel
Bodensee -
336-8M0126977 CAP ASSEMBLY, FuelCAP ASSEMBLY, Fuel
-
336-8M0126977 CAP ASSEMBLY, Fuel
BodenseeCAP ASSEMBLY, Fuel
Bodensee -
427-878353 GASKETGASKET
-
510-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
612-161404 WASHERWASHER
-
723-8537437 MOUNT, RubberMOUNT, Rubber
-
823-8537154 SPACERSPACER
-
910-16705 BOLTBOLT
-
1010-8M0051381 SCREW, Stainless SteelSCREW, Stainless Steel
-
1154-813275 CLAMPCLAMP
-
1225-881305 MOUNT, RubberMOUNT, Rubber
-
1311-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
14878350 BRACKETBRACKET
-
1510-823042060 BOLTBOLT
-
1632-8M0057113 LINE, Fuel (1000 mm), Cut to 9.875 InchesLINE, Fuel (1000 mm), Cut to 9.875 Inches
-
1754-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
1832-8M0057113 LINE, Fuel (1000 mm), Cut to 14.00 InchesLINE, Fuel (1000 mm), Cut to 14.00 Inches
-
1922-878387 FUEL COCK ASSEMBLYFUEL COCK ASSEMBLY
-
2010-815046 SCREW, Stainless SteelSCREW, Stainless Steel
-
2132-8M0057113 LINE, Fuel (1000 mm), Cut to 1.375 InchesLINE, Fuel (1000 mm), Cut to 1.375 Inches
-
2232-8M0057113 LINE, Fuel (1000 mm), Cut to 8.50 InchesLINE, Fuel (1000 mm), Cut to 8.50 Inches
-
2322-73318 TEE, PlasticTEE, Plastic
-
2432-8M0057113 LINE, Fuel (1000 mm), Cut to 5.25 InchesLINE, Fuel (1000 mm), Cut to 5.25 Inches
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2622-815048 CONNECTOR, PlasticCONNECTOR, Plastic
-
2732-815049 HOSE, Rubber, 1.75 InchHOSE, Rubber, 1.75 Inch
-
2822-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
2910-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
31878311 CAPCAP
-
3235-16248 FILTER, FuelFILTER, Fuel
-
3332-17668 HOSE, 7.125 InchHOSE, 7.125 Inch
-
3423-8797051 SLEEVESLEEVE
-
3510-82304235 BOLT, (M6 x 45) (M6 x 45)BOLT, (M6 x 45) (M6 x 45)
-
36881306 PLATEPLATE
-
3723-881307001 SPACERSPACER
-
3826-878354 SEALSEAL
