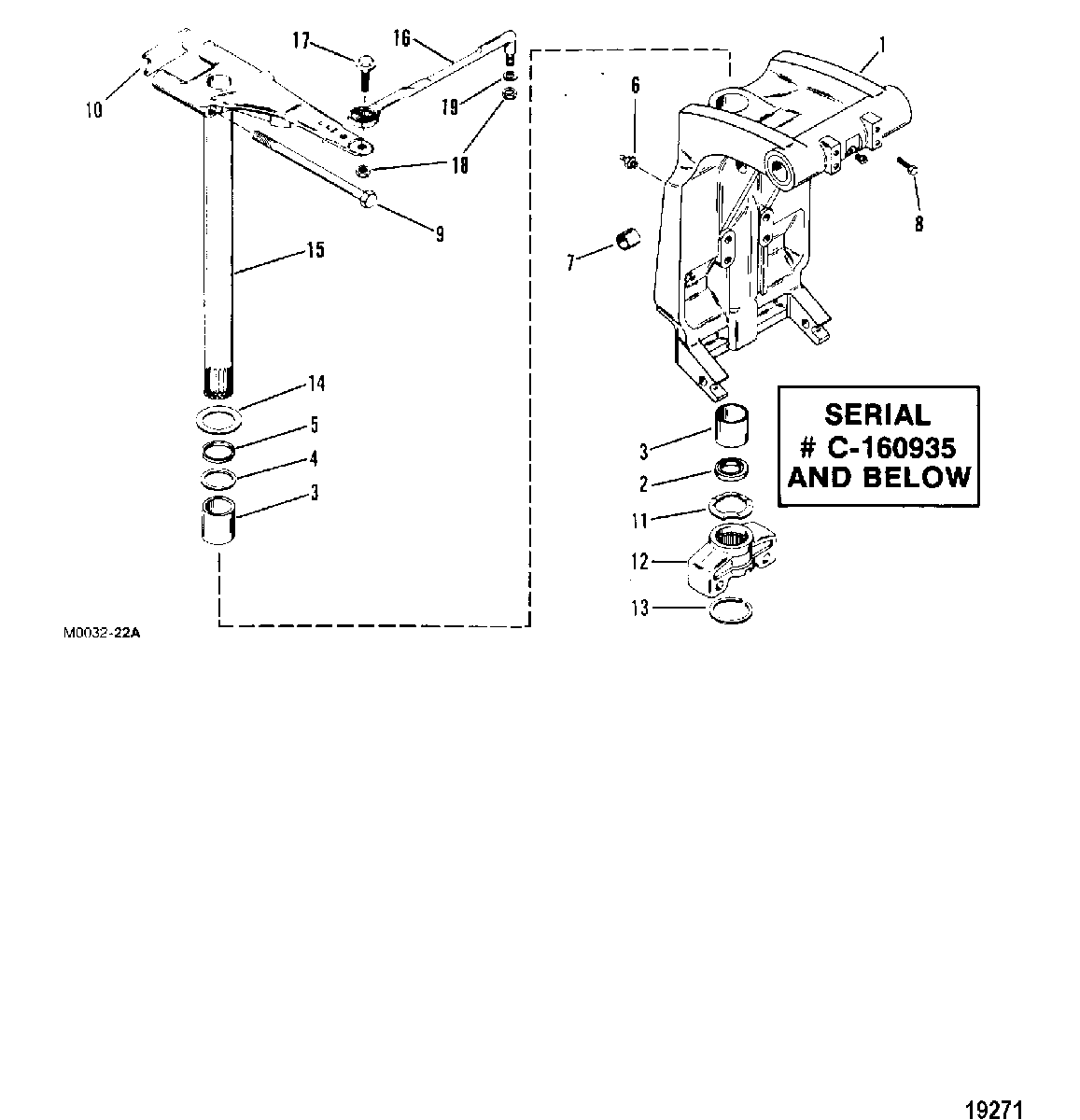

Swivel Bracket(Power Trim)(S/N-0C160935 & Below) для Mariner - 50 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(BLACK)SWIVEL BRACKET ASSEMBLY
(BLACK) -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(GRAY)SWIVEL BRACKET ASSEMBLY
(GRAY) -
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPERBUSHING, SWIVEL BRACKET - LOWER AND UPPER
-
425-33466 O-RING, SWIVEL BRACKET - UPPERO-RING, SWIVEL BRACKET - UPPER
-
523-67668 SPACER, SWIVEL BRACKET - UPPERSPACER, SWIVEL BRACKET - UPPER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
810-64014 SCREW, (.250-28 x .500), SWIVEL BRACKETSCREW, (.250-28 x .500), SWIVEL BRACKET
-
910-99621 SCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNTSCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNT
-
1028203 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
1113-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
1242961T YOKE, Bottom
(Black)YOKE, Bottom
(Black) -
1242961T6 YOKE, Bottom
(Gray)YOKE, Bottom
(Gray) -
1353-67684 RING, Retaining, BOTTOM YOKERING, Retaining, BOTTOM YOKE
-
1412-67670 WASHER, THRUST - SWIVEL BRACKETWASHER, THRUST - SWIVEL BRACKET
-
1599661A2 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
1617432A6 LINK ROD ASSEMBLY
(STARBOARD)LINK ROD ASSEMBLY
(STARBOARD) -
1617432A5 LINK ROD ASSEMBLY
(PORT)LINK ROD ASSEMBLY
(PORT) -
1710-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARMSCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
-
1811-8M0042636 NUT, (.375-24), STEERING LINK SCREWNUT, (.375-24), STEERING LINK SCREW
-
1912-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARMWASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
