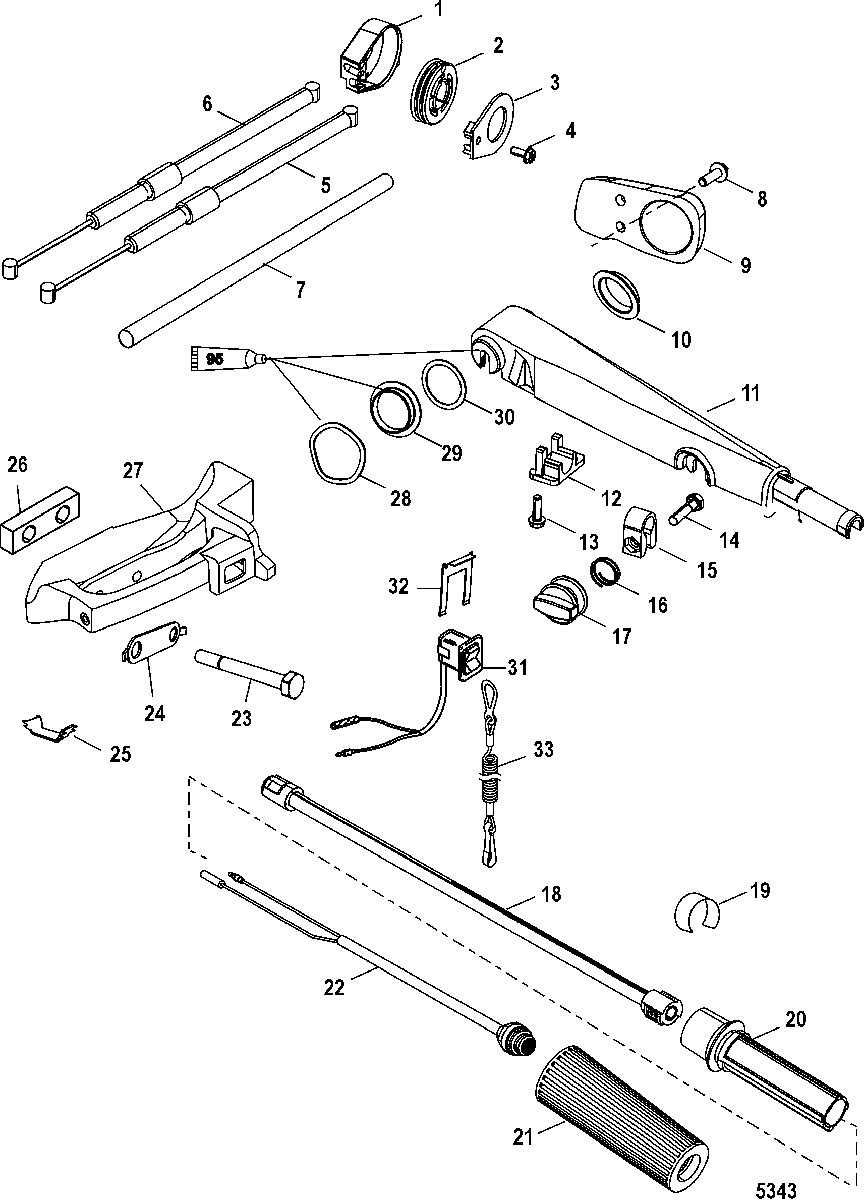

Tiller Handle для Mariner - 50 (3 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1822148A7 COVER KITCOVER KIT
-
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE
(Case)NOT SOLD SEPARATE
(Case) -
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
54324212 CABLE ASSEMBLY, Throttle (28.50 Inches)CABLE ASSEMBLY, Throttle (28.50 Inches)
-
64324213 CABLE ASSEMBLY, Throttle (30.00 Inches)CABLE ASSEMBLY, Throttle (30.00 Inches)
-
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
810-82526225 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
98M0072298 COVER
(Black)COVER
(Black) -
1023-821477 BUSHINGBUSHING
-
11828813T1 ARM, Steering Handle
(Black)ARM, Steering Handle
(Black) -
-37-8M0032728 DECAL, Lanyard, BlackDECAL, Lanyard, Black
-
12822441 RETAINERRETAINER
-
1310-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
15892995 LOCK, ThrottleLOCK, Throttle
-
1624-96203 SPRINGSPRING
-
17821972T KNOB, ThrottleKNOB, Throttle
-
188M0138696 TILLER TUBETILLER TUBE
-
1937-8242004 DECAL
(Turtle/Rabbit)DECAL
(Turtle/Rabbit) -
20821465 HANDLE, ThrottleHANDLE, Throttle
-
2199589003 GRIPGRIP
-
2287-8M0104614 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
2310-824848110 SCREW, (M10 x 110)SCREW, (M10 x 110)
-
2414-8M0009820 TAB WASHERTAB WASHER
-
25823687 CLIPCLIP
-
2623-828569 SPACERSPACER
-
27821455A4 BRACKET, Tiller
(Black)BRACKET, Tiller
(Black) -
2813-826792 WAVE WASHERWAVE WASHER
-
2923-821477 BUSHINGBUSHING
-
3012-827314 WASHERWASHER
-
3187-11083A31 SWITCHSWITCH
-
328M0032846 RETAINER, BrassRETAINER, Brass
-
338M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
