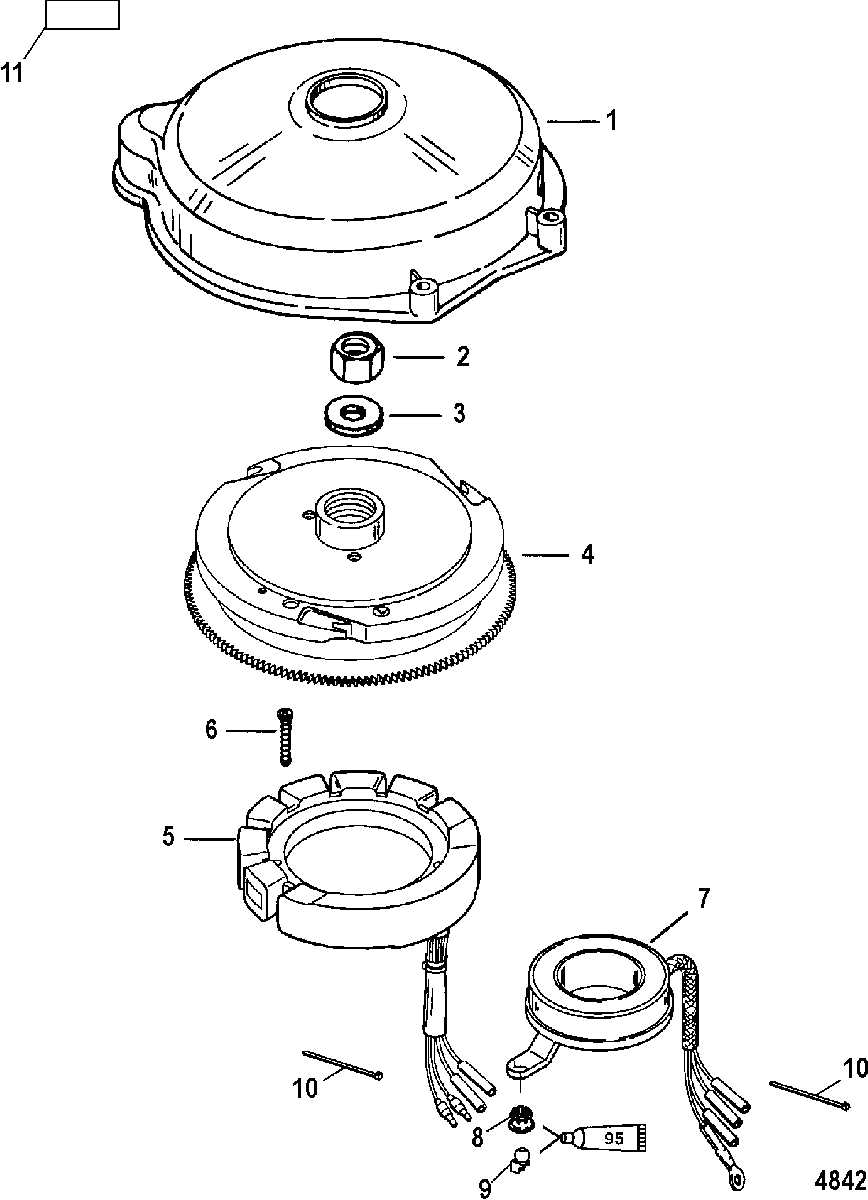

Flywheel and Stator(Electric) для Mariner - 50 (3 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
1812777T1 COVER ASSEMBLYCOVER ASSEMBLY
-
211-42979 NUT, (M16)NUT, (M16)
-
312-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
4261-859234T24 FLYWHEELFLYWHEEL
-
5398-832075A21 STATOR ASSEMBLYSTATOR ASSEMBLY
-
-84-11149A27 CABLE ASSEMBLYCABLE ASSEMBLY
-
610-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
7854512T TRIGGERTRIGGER
-
893421 SWIVEL BALLSWIVEL BALL
-
993254 SWIVEL BASESWIVEL BASE
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1137-804665A05 DECAL, EPA Label Information (2005)DECAL, EPA Label Information (2005)
-
1137-804665A06 DECAL, EPA Label Information (2006)DECAL, EPA Label Information (2006)
-
1137-804665A07 DECAL, EPA Label Information (2007)DECAL, EPA Label Information (2007)
-
1137-804665A08 DECAL, EPA Label Information (2008)DECAL, EPA Label Information (2008)
-
11NSS NOT SOLD SEPARATE, DECAL, EPA (2009 & Up)
(Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)NOT SOLD SEPARATE, DECAL, EPA (2009 & Up)
(Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)
