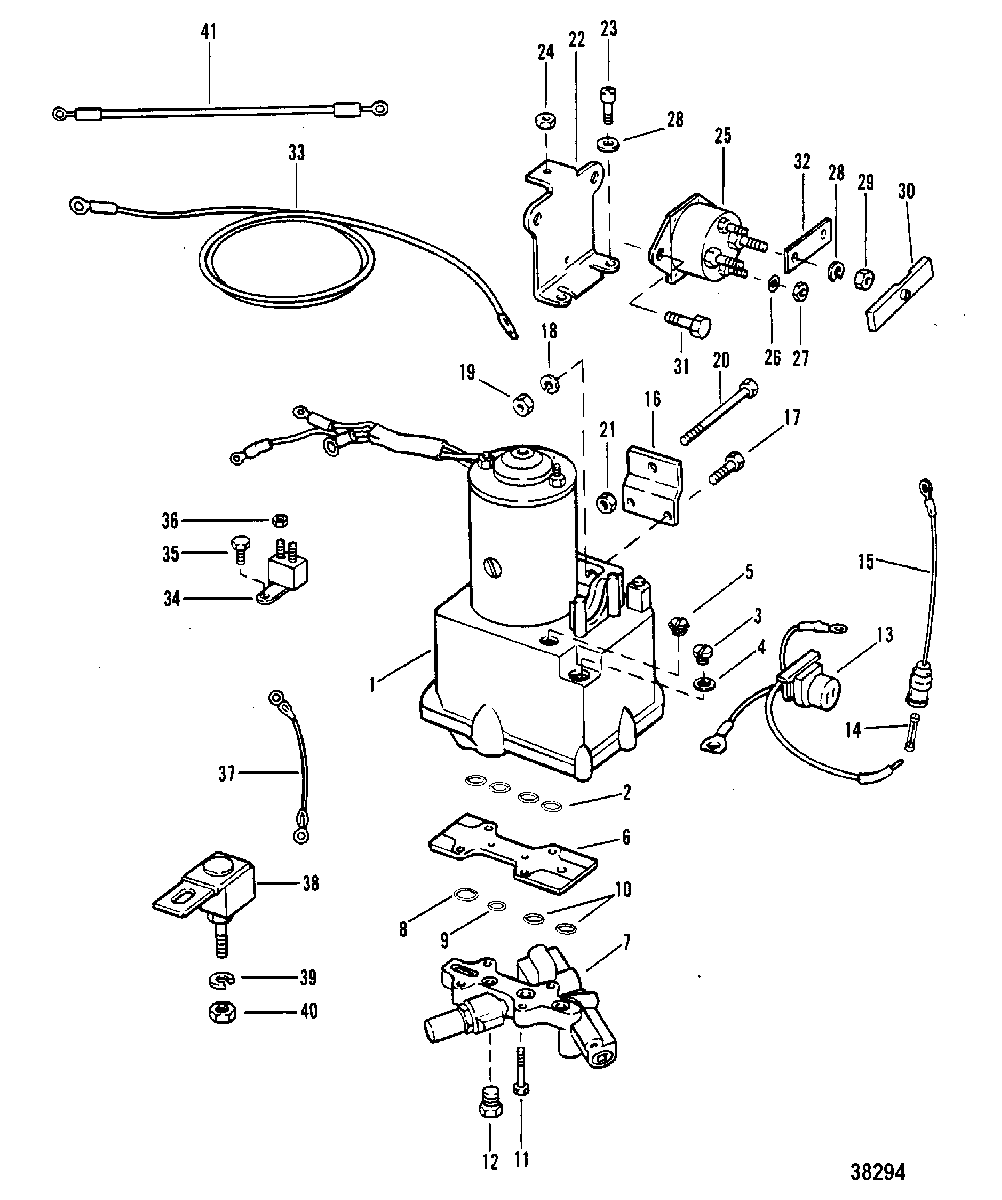

POWER TRIM COMPONENTS для Mariner - 50 (3 CYL.) 6428681 THRU 0B122929
-
№АртикулНазвание
-
192975A32 PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR) SEE NOTEPUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR) SEE NOTE
-
225-48171 O-RING, (.364. x .070), MANIFOLD PLATEO-RING, (.364. x .070), MANIFOLD PLATE
-
310-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMPSCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
-
412-191833 WASHER, SEALING - FILLER SCREWWASHER, SEALING - FILLER SCREW
-
510-62269 SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMPSCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP
-
645336 PLATE, MANIFOLDPLATE, MANIFOLD
-
745197A2 VALVE ASSEMBLY, ControlVALVE ASSEMBLY, Control
-
-25-48171 O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)
-
825-45254 O-RING, CONTROL VALVE (3/4" O.D.)O-RING, CONTROL VALVE (3/4" O.D.)
-
925-48171 O-RING, (.364. x .070), CONTROL VALVEO-RING, (.364. x .070), CONTROL VALVE
-
1025-45253 O-RING, CONTROL VALVE (5/8" O.D.)O-RING, CONTROL VALVE (5/8" O.D.)
-
1110-56500 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
1222-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1384-79147A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1488-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1584-95084A3 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
1645377T BRACKET, MOUNTINGBRACKET, MOUNTING
-
1710-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
1813-39107 LOCKWASHER, (.312-24), MOUNTING BRACKET SCREWLOCKWASHER, (.312-24), MOUNTING BRACKET SCREW
-
1911-21908 NUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREWNUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREW
-
2010-31830 BOLT, (.375-24 x 1.75), HYDRAULIC PUMP TO BOATBOLT, (.375-24 x 1.75), HYDRAULIC PUMP TO BOAT
-
2111-46335 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2294279 BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
2310-28638 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMPSCREW, MOUNTING BRACKET TO HYDRAULIC PUMP
-
2411-826709106 NUT, (#10-32)NUT, (#10-32)
-
2589-96158T SOLENOID, StarterSOLENOID, Starter
-
2613-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
-
2711-26419 NUT, (#8-32) Brass, SOLENOID TERMINALNUT, (#8-32) Brass, SOLENOID TERMINAL
-
2813-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
-
2911-94330 NUT, (.250-20) Brass, SOLENOID TERMINALNUT, (.250-20) Brass, SOLENOID TERMINAL
-
3085-861680 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
3110-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
3294275 LINK, SOLENOID TO SOLENOIDLINK, SOLENOID TO SOLENOID
-
3384-79139A13 CABLE ASSEMBLY, Battery (POSITIVE)CABLE ASSEMBLY, Battery (POSITIVE)
-
3384-79138A1 CABLE ASSEMBLY (NEGATIVE)CABLE ASSEMBLY (NEGATIVE)
-
3488-8M0085705 BREAKER, Circuit - 20 Ampere, EARLY MODELSBREAKER, Circuit - 20 Ampere, EARLY MODELS
-
3510-8M0113176 SCREW, (#10-24 x .375), CIRCUIT BREAKER-EARLY MODELSSCREW, (#10-24 x .375), CIRCUIT BREAKER-EARLY MODELS
-
3611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
3784-87379A5 WIREWIRE
-
3888-79023T90 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
3912-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINALWASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
-
4011-21825 NUT, (.250-28), FUSE TERMINALNUT, (.250-28), FUSE TERMINAL
-
4184-61600A9 WIRE, STARTER SOLENOID (BLACK)WIRE, STARTER SOLENOID (BLACK)
