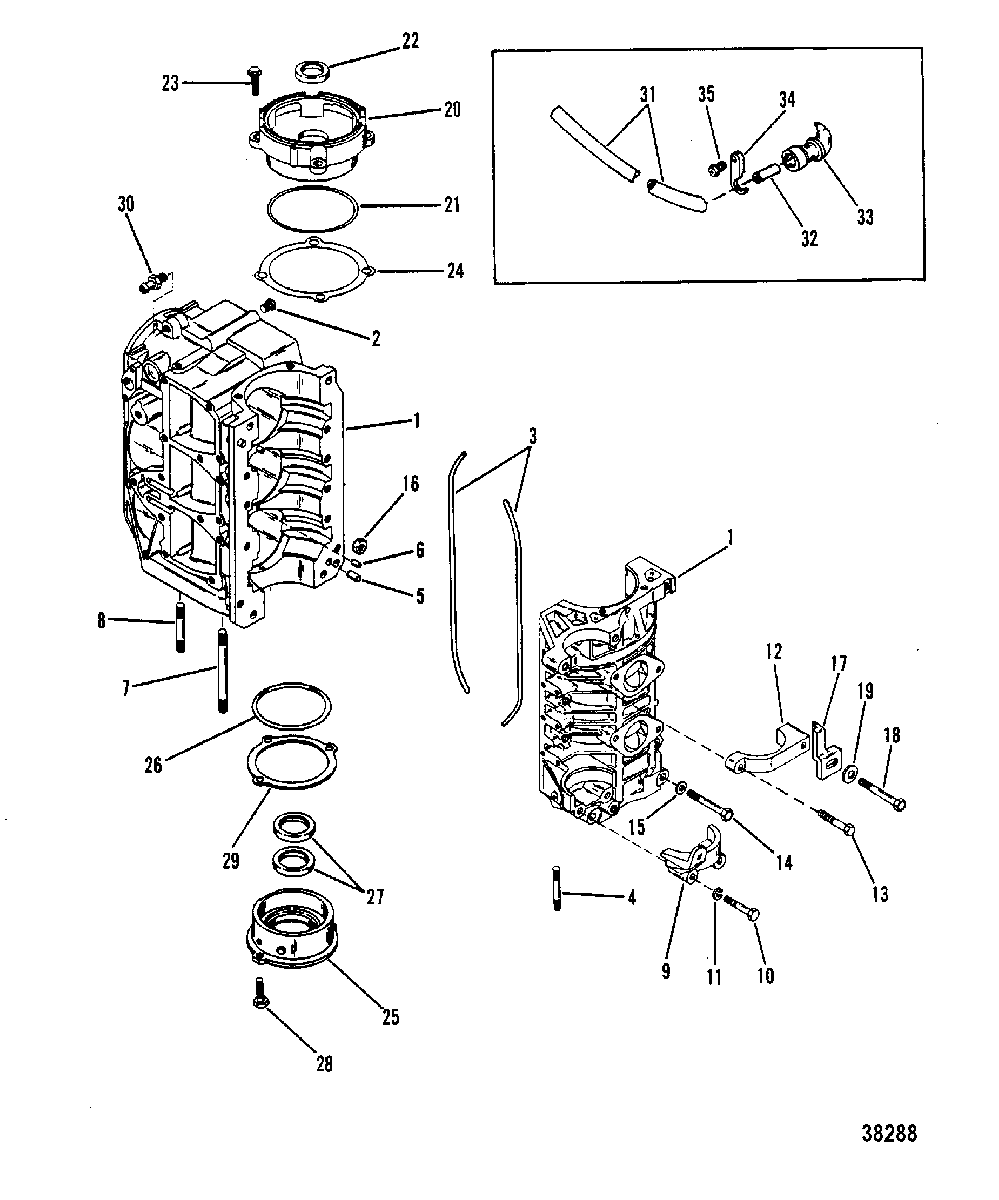

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 50 (3 CYL.) 9385911 THRU 9469199
-
№АртикулНазвание
-
1865-8362A10 CYLINDER BLOCK ASSEMBLY
(50)CYLINDER BLOCK ASSEMBLY
(50) -
1865-8362A11 CYLINDER BLOCK ASSEMBLY
(60)CYLINDER BLOCK ASSEMBLY
(60) -
266517 RESTRICTOR, CRANKCASE BLEEDRESTRICTOR, CRANKCASE BLEED
-
327-60286 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
416-68201 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2-1/4")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2-1/4")
-
517-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCKPIN, Dowel, CRANKCASE TO CYLINDER BLOCK
-
617-20323 PIN, Dowel, CYLINDER BLOCK TO MAIN BEARINGPIN, Dowel, CYLINDER BLOCK TO MAIN BEARING
-
716-92345 STUD, CYLINDER BLOCK (4-3/8")STUD, CYLINDER BLOCK (4-3/8")
-
816-68202 STUD, (.312-24 x 3.00), CYLINDER BLOCK - EXHAUST SIDESTUD, (.312-24 x 3.00), CYLINDER BLOCK - EXHAUST SIDE
-
816-68167 STUD, (.312-18/.312-24 x 2.560), CYLINDER BLOCK - TRANSFER SIDESTUD, (.312-18/.312-24 x 2.560), CYLINDER BLOCK - TRANSFER SIDE
-
976975 COVER, STARTER MOTOR (BOTTOM)COVER, STARTER MOTOR (BOTTOM)
-
1010-815549 SCREW, (.312-18 x 2), STARTER MOTOR COVERSCREW, (.312-18 x 2), STARTER MOTOR COVER
-
1113-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREWLOCKWASHER, (.312), STARTER MOTOR COVER SCREW
-
1279735A1 COVER, STARTER MOTOR (TOP)COVER, STARTER MOTOR (TOP)
-
1310-58414 SCREW, STARTER MOTOR COVER (2-1/2")SCREW, STARTER MOTOR COVER (2-1/2")
-
1310-35385 SCREW, (.312-18 x 1-3/4), STARTER MOTOR COVERSCREW, (.312-18 x 1-3/4), STARTER MOTOR COVER
-
1410-35385 SCREW, (.312-18 x 1-3/4), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1-3/4), CRANKCASE TO CYLINDER BLOCK
-
1410-73657 SCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCK
-
1410-22039 SCREW, (.312-24 x 2.75), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-24 x 2.75), CRANKCASE TO CYLINDER BLOCK
-
1512-26020 WASHER, CRANKCASE SCREW (BOTTOM)WASHER, CRANKCASE SCREW (BOTTOM)
-
1611-29250 NUT, (.312-24), CRANKCASE SCREW (BOTTOM)NUT, (.312-24), CRANKCASE SCREW (BOTTOM)
-
1779736 INDICATOR, TIMINGINDICATOR, TIMING
-
1810-58414 SCREW, INDICATOR TO STARTER COVERSCREW, INDICATOR TO STARTER COVER
-
1912-56720 WASHER, (.330 x .750 x .060) Stainless Steel, INDICATOR SCREWWASHER, (.330 x .750 x .060) Stainless Steel, INDICATOR SCREW
-
201161-6357A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
2125-64966 O-RING, (3.739 x .070), END CAPO-RING, (3.739 x .070), END CAP
-
2226-41953 SEAL, END CAPSEAL, END CAP
-
2310-812618 SCREW, UPPER END CAP MOUNTING (1")SCREW, UPPER END CAP MOUNTING (1")
-
2415-73644A1 SHIM, UPPER END CAP (.006-8-10)SHIM, UPPER END CAP (.006-8-10)
-
251144-6691A1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2625-32546 O-RING, END CAPO-RING, END CAP
-
2726-41953 SEAL, END CAPSEAL, END CAP
-
2810-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), LOWER END CAP MOUNTINGSCREW AND LOCKWASHER, (.312-18 x 1.00), LOWER END CAP MOUNTING
-
2915-20085A1 SHIM SET, LOWER END CAP (.002-3-5-10)SHIM SET, LOWER END CAP (.002-3-5-10)
-
3022-291112 CONNECTOR, HOSE TO CYLINDER BLOCKCONNECTOR, HOSE TO CYLINDER BLOCK
-
3132-774572 HOSE, (48.00 Inches Bulk), TELL TALE (15")HOSE, (48.00 Inches Bulk), TELL TALE (15")
-
3223-90882 SLEEVE, TELL TALE HOSESLEEVE, TELL TALE HOSE
-
3369555001 NOZZLE, TELL TALE - REAR SUPPORT BRACKETNOZZLE, TELL TALE - REAR SUPPORT BRACKET
-
3454-70705 CLAMP, TELL TALE NOZZLECLAMP, TELL TALE NOZZLE
-
3510-48408 SCREW, (#10-16 x .500), TELL TALE CLAMPSCREW, (#10-16 x .500), TELL TALE CLAMP
-
-27-88449A32 GASKET SETGASKET SET
-
-13713A87 POWERHEAD
(50)POWERHEAD
(50) -
-97470T87 POWERHEAD
(60)POWERHEAD
(60)
