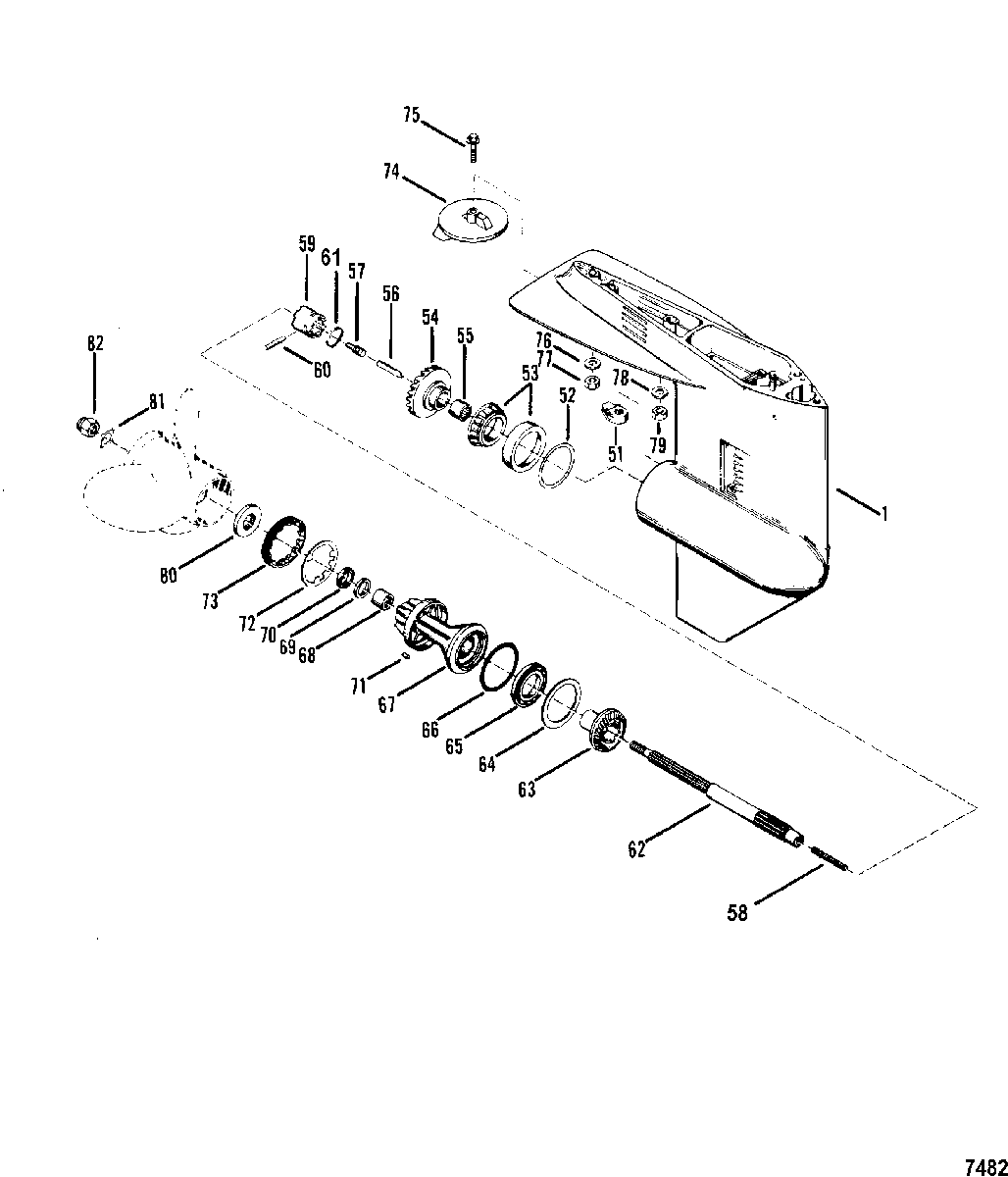

Gear Housing, Propeller Shaft для Mariner - 50 (3 CYL.) 9469200 THRU 9683054
-
№АртикулНазвание
-
-1643-9539A2 GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)
-
-1643-9539A3 GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)
-
-1643-9539A9 GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)
-
11643-9539T1 GEAR HOUSING ASSEMBLY (BLACK-BASIC)GEAR HOUSING ASSEMBLY (BLACK-BASIC)
-
11643-9539T1 GEAR HOUSING ASSEMBLY (GRAY-BASIC)GEAR HOUSING ASSEMBLY (GRAY-BASIC)
-
51760394 CAM, Shift ControlCAM, Shift Control
-
5215-38374A1 SHIM SET, BEARING CUP (.002-3-5-10)SHIM SET, BEARING CUP (.002-3-5-10)
-
5331-38356A1 BEARING SETBEARING SET
-
5443-88018T1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5531-21739 BEARING, Roller, FORWARD GEARBEARING, Roller, FORWARD GEAR
-
5638441 FOLLOWER, CamFOLLOWER, Cam
-
5720843 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5824-39845 SPRING, COMPRESSION-CAM FOLLOWERSPRING, COMPRESSION-CAM FOLLOWER
-
5952-92911T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6017-8M0020942 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
6124-38114 SPRING, RETAINING-CROSS PINSPRING, RETAINING-CROSS PIN
-
6244-75365 PROPELLER SHAFTPROPELLER SHAFT
-
6343-88017T GEAR, ReverseGEAR, Reverse
-
6412-32004 WASHER, REVERSE GEARWASHER, REVERSE GEAR
-
6530-20839T BEARING, Ball, REVERSE GEARBEARING, Ball, REVERSE GEAR
-
6625-31986 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6769386T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6831-21700 BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
6926-69188 SEAL, Oil, BEARING CARRIERSEAL, Oil, BEARING CARRIER
-
7026-69189 SEAL, Oil, BEARING CARRIERSEAL, Oil, BEARING CARRIER
-
7128-30281 KEY, LOCATING, BEARING CARRIERKEY, LOCATING, BEARING CARRIER
-
7214-53012 TAB WASHER, GEAR HOUSING NUTTAB WASHER, GEAR HOUSING NUT
-
7311-87763 NUT, GEAR HOUSINGNUT, GEAR HOUSING
-
7497-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7510-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
7612-856774 WASHER, (.406 x .750 x .104), DRIVE SHAFT HOUSING STUDWASHER, (.406 x .750 x .104), DRIVE SHAFT HOUSING STUD
-
7711-8M0042636 NUT, (.375-24), DRIVE SHAFT HOUSING STUDNUT, (.375-24), DRIVE SHAFT HOUSING STUD
-
7812-65791 WASHER, DRIVE SHAFT HOUSING STUDWASHER, DRIVE SHAFT HOUSING STUD
-
7911-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUDNUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
-
8073345A1 THRUST HUB, FRONTTHRUST HUB, FRONT
-
8114-76281 TAB WASHER, PROPELLERTAB WASHER, PROPELLER
-
8211-69578Q1 PROP NUT KITPROP NUT KIT
-
-26-79831A1 SEAL KITSEAL KIT
-
-27-43779A87 GASKET SETGASKET SET
